1.0 Introduction

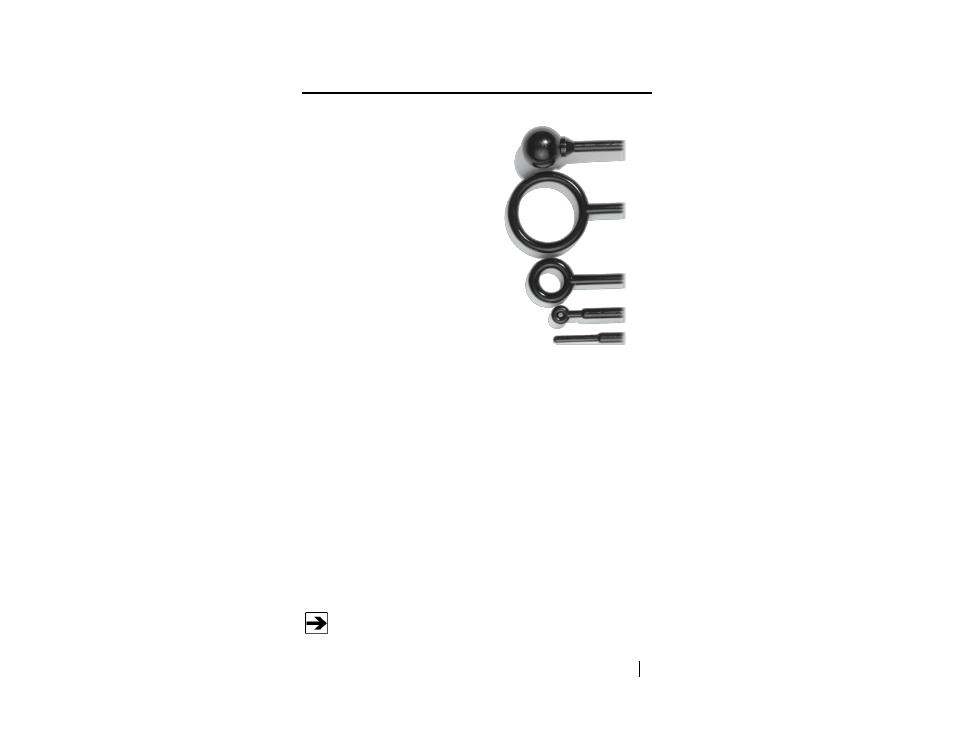

The ETS-Lindgren Model 7405
Near-Field Probe Set includes three
magnetic (H) field and two electric (E)
field passive, near-field probes designed
for use in the resolution of emissions
problems.
The Model 7405 provides a
self-contained means of accurately
detecting H-field and E-field emissions,
and includes a 20 cm extension handle
to provide access to remote areas in
larger units. Made of injection molded
industrial grade plastic, the probes are
durable, light weight, and compact.
The probes provide a fast and easy means of detecting and identifying signal
sources that could prevent a product from meeting federal regulatory
requirements. This set is a convenient and inexpensive tool for extending the
capability of a spectrum analyzer, oscilloscope, or signal generator.
A near-field probe is an essential tool for quick and efficient EMC/EMI
engineering. Using near-field probes and an oscilloscope can produce the
following results:
 Gain information about the source and location of the radiation
member.
 Reduce test expense by adding inexpensive equipment for solving
EMC/EMI problems.
 Reduce test time by pre-screening various solutions and alternate
implementations.
The Model 7405 is used for diagnostics purposes, and does not
require calibration.
