1.0 Introduction
The ETS-Lindgren
Model 3816/2 Line
Impedance Stabilization
Network (LISN) is a
two-channel low pass filter
network designed to isolate
the Equipment Under Test
from an external power
source while steering any
radio frequency signals
from the power line to a
50-ohm port.

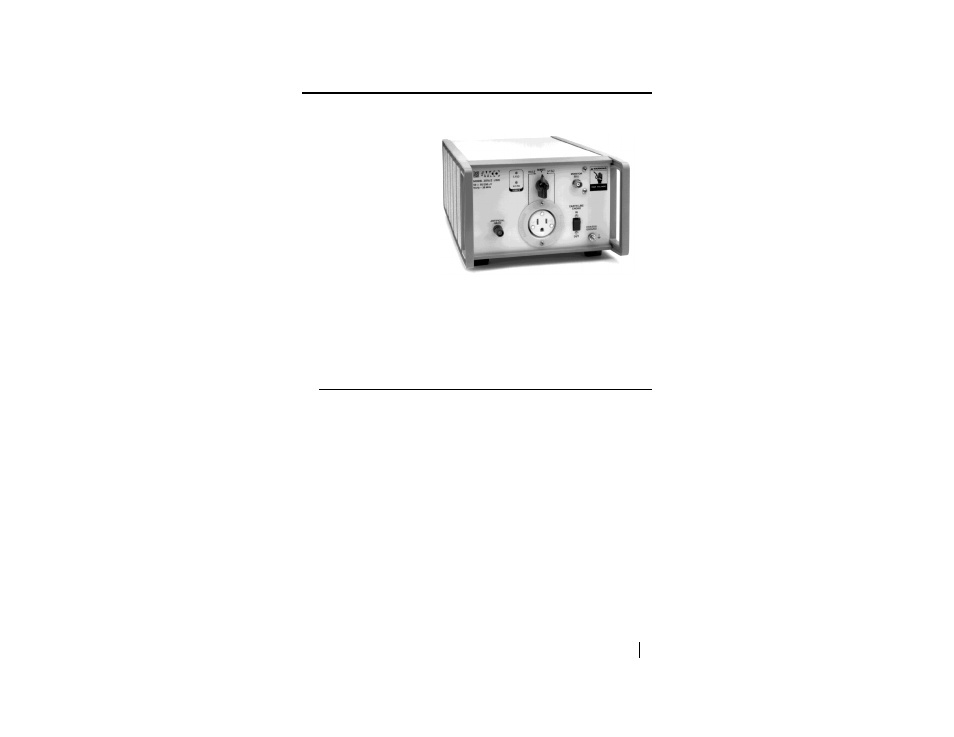

Model 3816/2 Front View
The conducted emissions measurements may be made in accordance with
regulatory compliance standards.
Data
Characterizations for each measurement port of the Model 3816/2 Line
Impedance Stabilization Network (LISN) are included with the unit. The graphs
provide individual plots of both impedance and insertion loss data.
A Certificate of Calibration Conformance is provided with each Model 3816/2.
