Back Panel Connectors

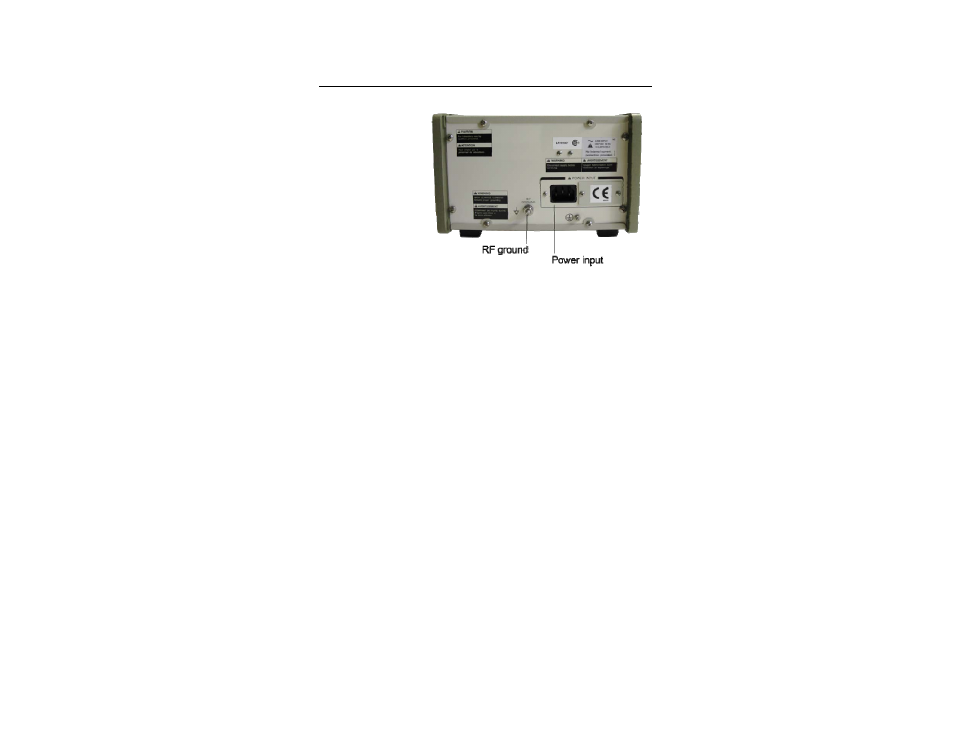

Model 3810/2 Back View

P

OWER

I

NPUT

The input power connection is made through the IEC-320 type power inlet. This

three-wire input power connector is rated at 10 amperes maximum. In case of

emergency, power can be removed from the unit by removing the power

connection at the Model 3810/2 input. Alternately, a properly rated circuit breaker

or switch which removes mains power from the unit can be installed in proximity

to the unit.

RF

G

ROUND

See description on page 15.

Installation and Application

| 17
