Page 40

40
Mounting Instructions
www.ets-lindgren.com
7-TR,
M
AST
M
OUNTING
(3164-06,
3164-08,
3164-10)

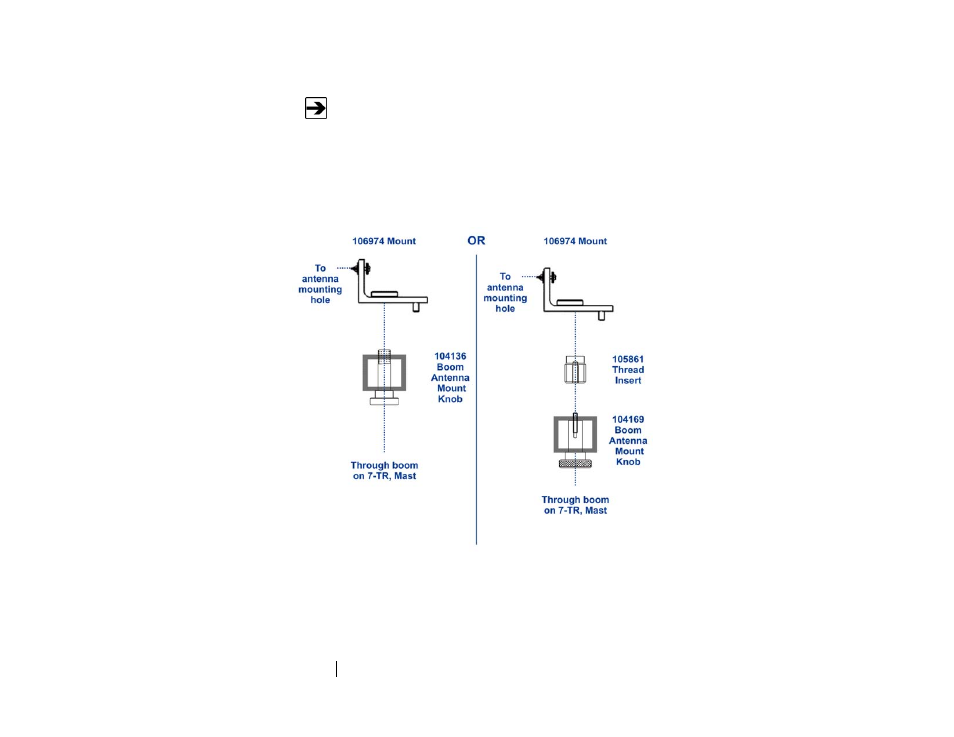

Mast
refers to 2070 Series, 2075, and 2175 Antenna Towers.
7-TR
refers to these booms:
109042 boom—Straight boom; for general antenna mounting on a
7-TR
108983 boom—Offset boom; for general antenna mounting on a
7-TR with pneumatic or manual polarization; can also be used to
mount stinger-type antennas
