Page 32

32
Mounting Instructions
www.ets-lindgren.com
Bracket Mount Instructions
3164-05
B
RACKET
M
OUNT

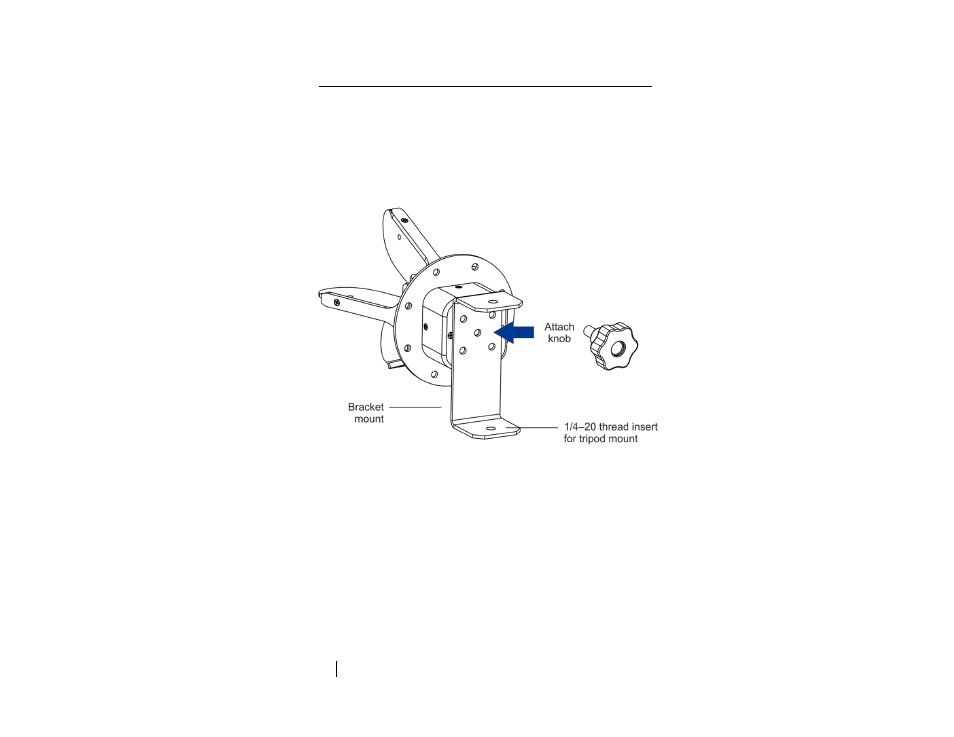

A mounting bracket (108071) attaches the 3164-05 onto a tripod or mast. The
108071 bracket attaches to the antenna backplate with a 1/4–20 thread knob,
and includes an insert that fastens to a 1/4–20 thread screw on the tripod or
mast.
