www.ets-lindgren.com Mounting Instructions 37
Additional Mounting Instructions for 3164-05

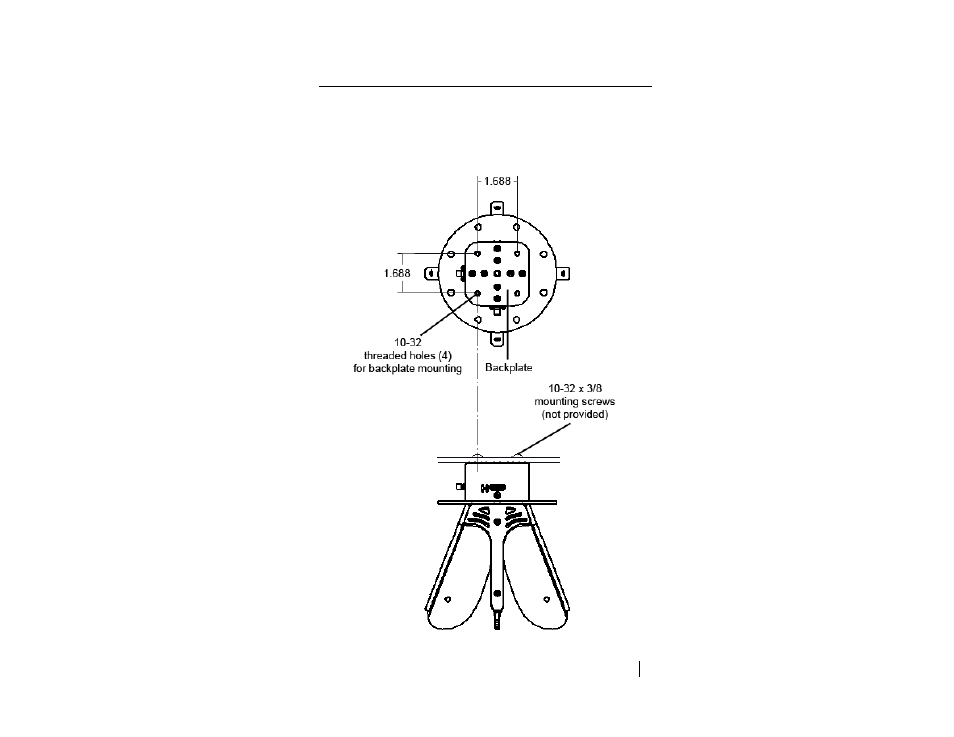

3164-05 B ACKPLATE M OUNT
As found with traditional antennas that cover the same frequency range, the
backplate of the 3164-05 provides four 10–32 threaded holes for mounting.
