3.0 Specifications
Electrical Specifications
M ODEL 3160 S ERIES

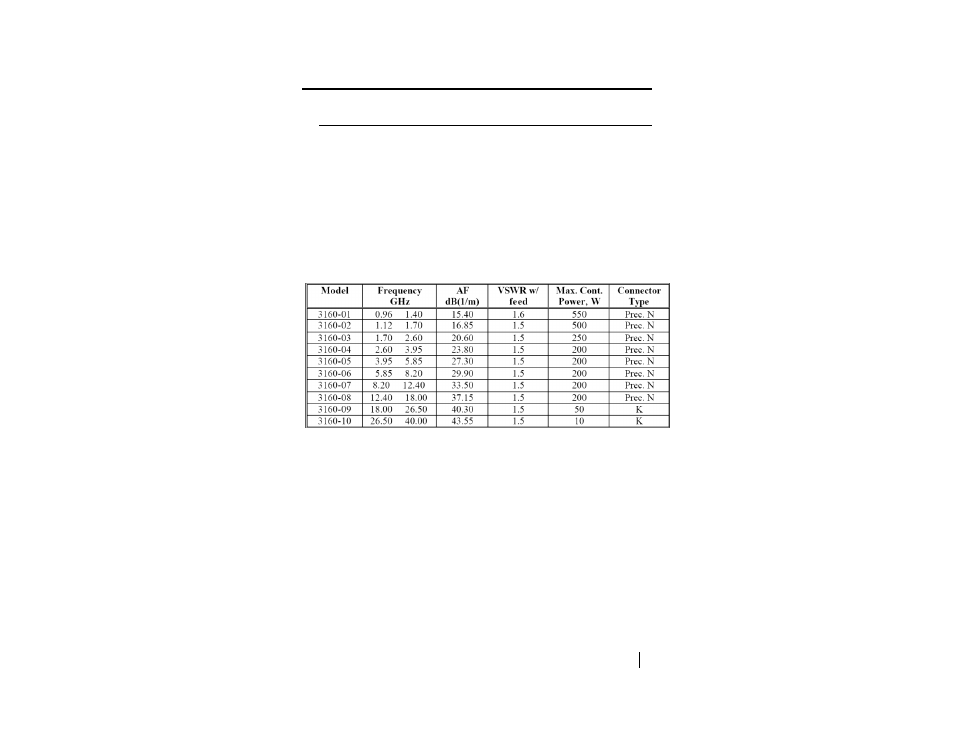

 The VSWR indicated in the following table is that of the pyramidal horn
antenna and coax-to-waveguide adapter. The VSWR of the antenna by
itself is of the order of 1.1:1.
 The maximum continuous power indicated in the following table is
mainly limited by the coax-to-waveguide adapter. The antenna itself is
capable of handling continuous power on the order of 10
4
Watts to
10
7
Watts.
M ODEL 3160- U 5 AND M ODEL 3160- U 7: S TANDARD G AIN H ORNS
B ELOW 1 GH Z
ETS-Lindgren also offers these two standard gain horns:
 Model 3160-u5—Operates from 500 MHz to 750 MHz.
 Model 3160-u7—Operates from 750 MHz to 1 GHz.
These horns require customized mounts due to their large physical size; for more
information see the Model 3160-u5 and Model 3160-u7 drawings provided in
Physical Specifications
beginning on page 20.
The following sections provide the computed gain for the Model 3160-u5 and
Model 3160-u7.
