Model RF Manual (082610)_2-ColorREV.doc Page 11 of 16
5. Bring cable back into cage,
laying cable counterclockwise,
and attach cable anchor to back
of cage through mounting hole.
(See Figure #9)

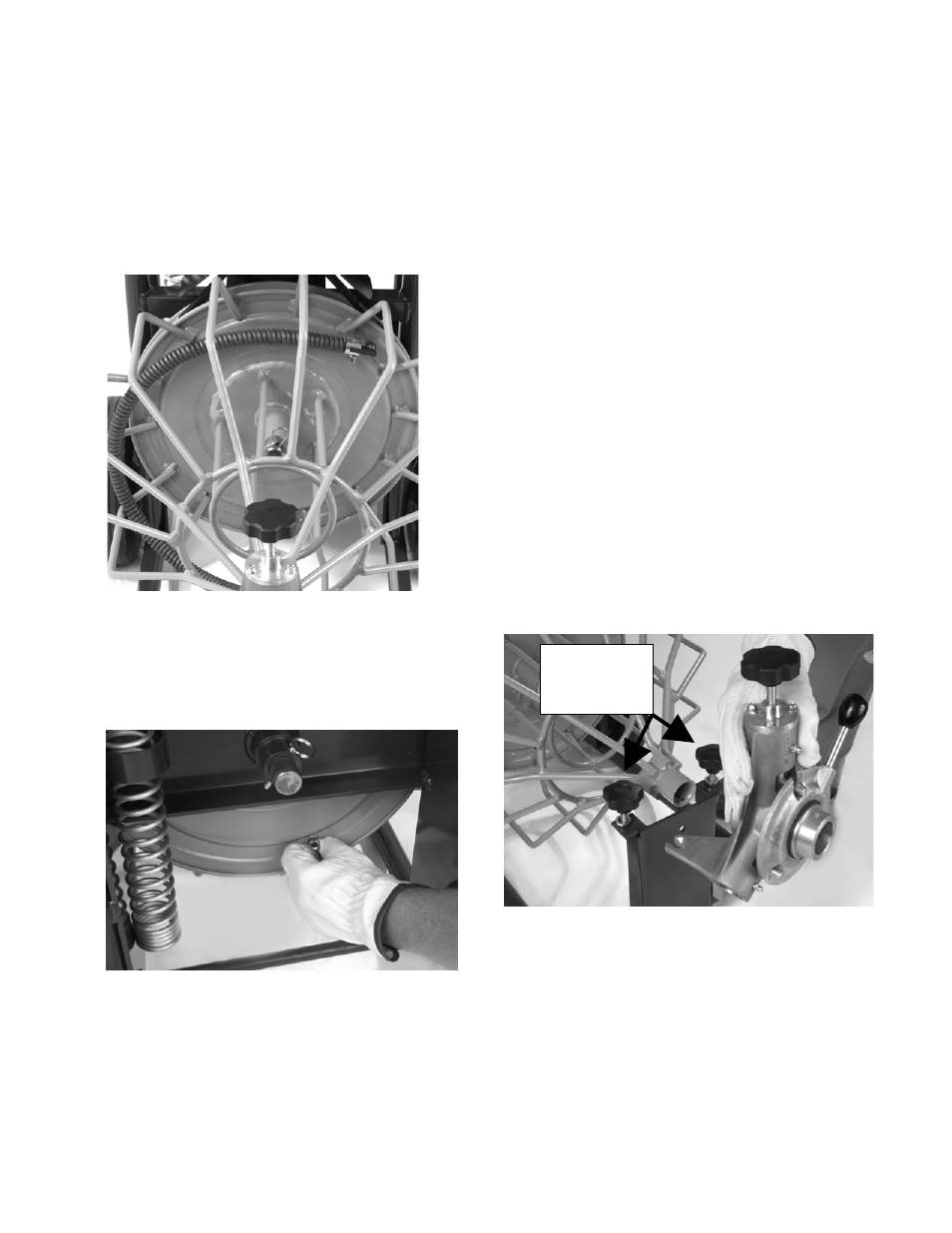

Figure 9
6. Attach nut to cable anchor on
back side of cage. (See Figure
#10)
Figure 10
7. Plug machine in. Motor should be
in FOR position.
8. To allow cable to feed into cage,
place auto cable feeder in REV
position and depress foot pedal.
CABLE CAGE REMOVAL
1. Disconnect power cord before
any set up or maintenance is
attempted.
2. Remove cable guide spring by
pulling retaining pin upward and
releasing the spring from the
feeder.
3. Remove SP-30 tool adapter with
1/4" punch to drive roll pin out.
4. Remove auto cable feeder by
unscrewing both feeder
anchoring knobs in a
counterclockwise direction on
either side of the feeder,
allowing the feeder to slide
forward. (See Figure #11)
Figure 11
Feeder
Anchoring
Knobs
