EFCO E-Lite User Manual
Page 5

EFCO CORPORATION 6/2012 PART NO. YWLS
Page 5 of 19
E-Lite Fabrication, Assembly and Installation Instructions
Section II: E-Lite “Stick Built” Channel Base Assembly
#13D8

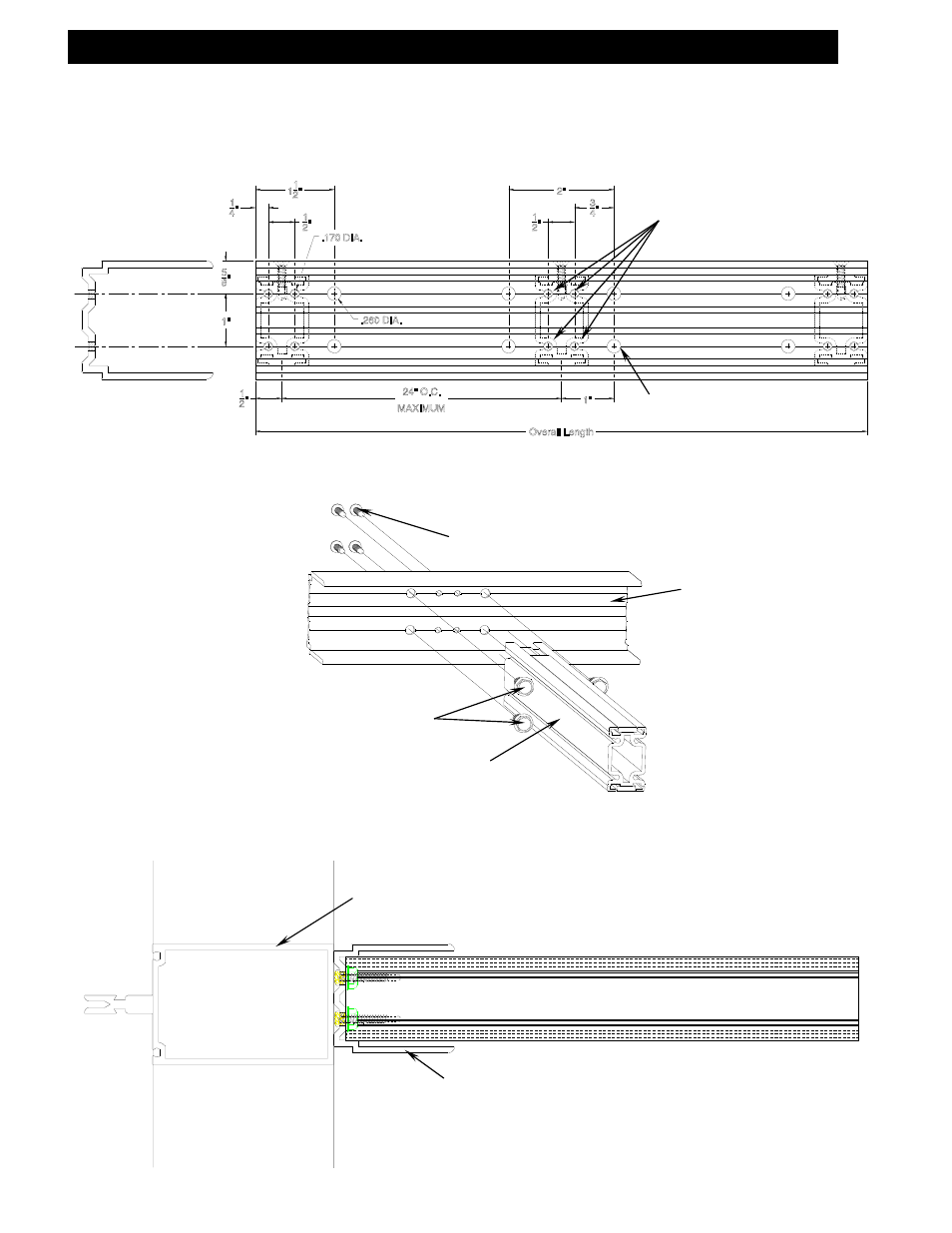

1.) Fabricate, Assemble, and Anchor E-Lite Channel Base.
A.) Start with the channel base. Cut to length, locate and drill all anchor and support strut attachment holes.
B.) Attach all struts with the lead-point attachment screws through the channel base into the strut and tighten firmly.
C.) Attach the channel base support / strut assembly to the glazed wall product or substrate with
*
appropriate size and
quantity of fasteners. (
*
Attachment fasteners are only sized and provided by EFCO when attachment is to EFCO material.)
Light Shelf support strut, centerline to centerline
spacing not to exceed 24” O.C.
Strut attachment screws
Channel base anchor screws (N.B.E.)
Strut attachment
holes (4 per strut)
Channel Base anchor holes
*
Channel Base
Channel Base
*
Horizontal framing mullion or vertical wall substrate
Channel Base
Support Strut
