Analog Module Installation and User Guide
C H A P T E R 2
Analog Channel Configuration
2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ANALOG CHANNEL CONFIGURATION
You can configure up to four different analog channels. Use the following instructions
to configure the analog channel(s).
C
ONFIGURING
THE
A
NALOG
C
HANNEL
(
S
)
1
Verify you are in the MakeRun screen.
2
Verify you are connected to the dyno electronics.
Note: You must be connected to the dyno electronics and the Analog Module
must be installed for the analog channels to be available.
Note: For more information on connecting to the dyno electronics, refer to the
WinPEP 7 User Guide (on your WinPEP CD or at
www.dynojet.com/manuals.shtml) or the WinPEP 7 Online Help.
3
Select Tools
MakeRun Options
Analog Configuration.
4
Select the desired analog channel tab.
5
Click the Enable logging on this channel check box.
6
Click Sensor Helper.

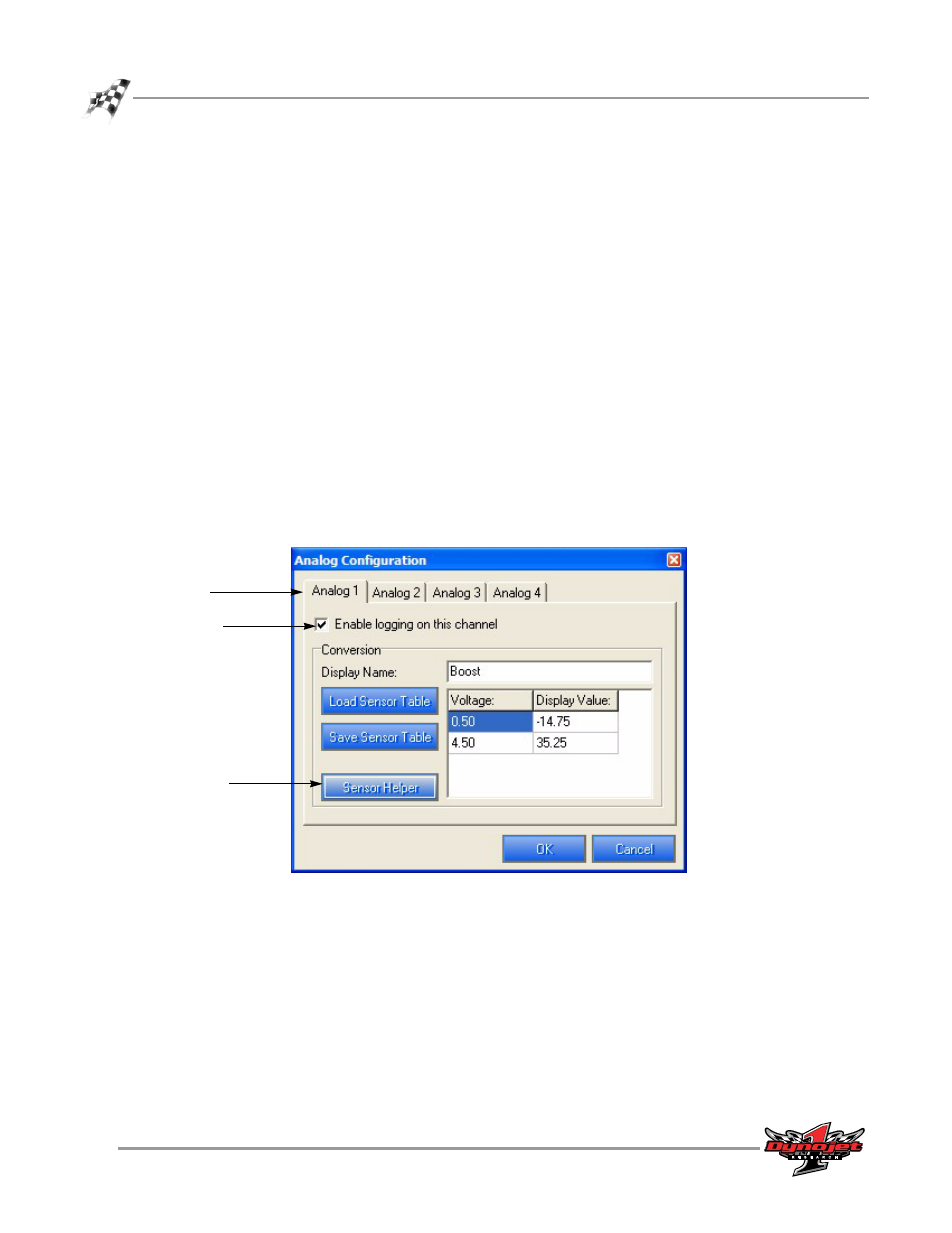

Figure 2-1: Analog Configuration Window—Select Desired Channel
analog channel tabs
sensor helper
check box
