E X T E N D E D C A R R I A G E W I T H TR I K E A D A P T E R A S S E M B L Y I N S T A L L A T I O N
Trike Carriage Adapter Installation
Version 1 Extended Carriage with Trike Adapter Assembly Installation Guide
7
2 Secure the trike carriage adapter assembly to the dyno and the extended support
using five 5/16 x 1-inch button-head bolts as shown in Figure 4.
3 Secure the trike carriage adapter assembly to the dyno and the extended support
using two 3/8 x 1-inch button-head bolts as shown in Figure 4.
4 Lube the tracks with the included lube or use grease.

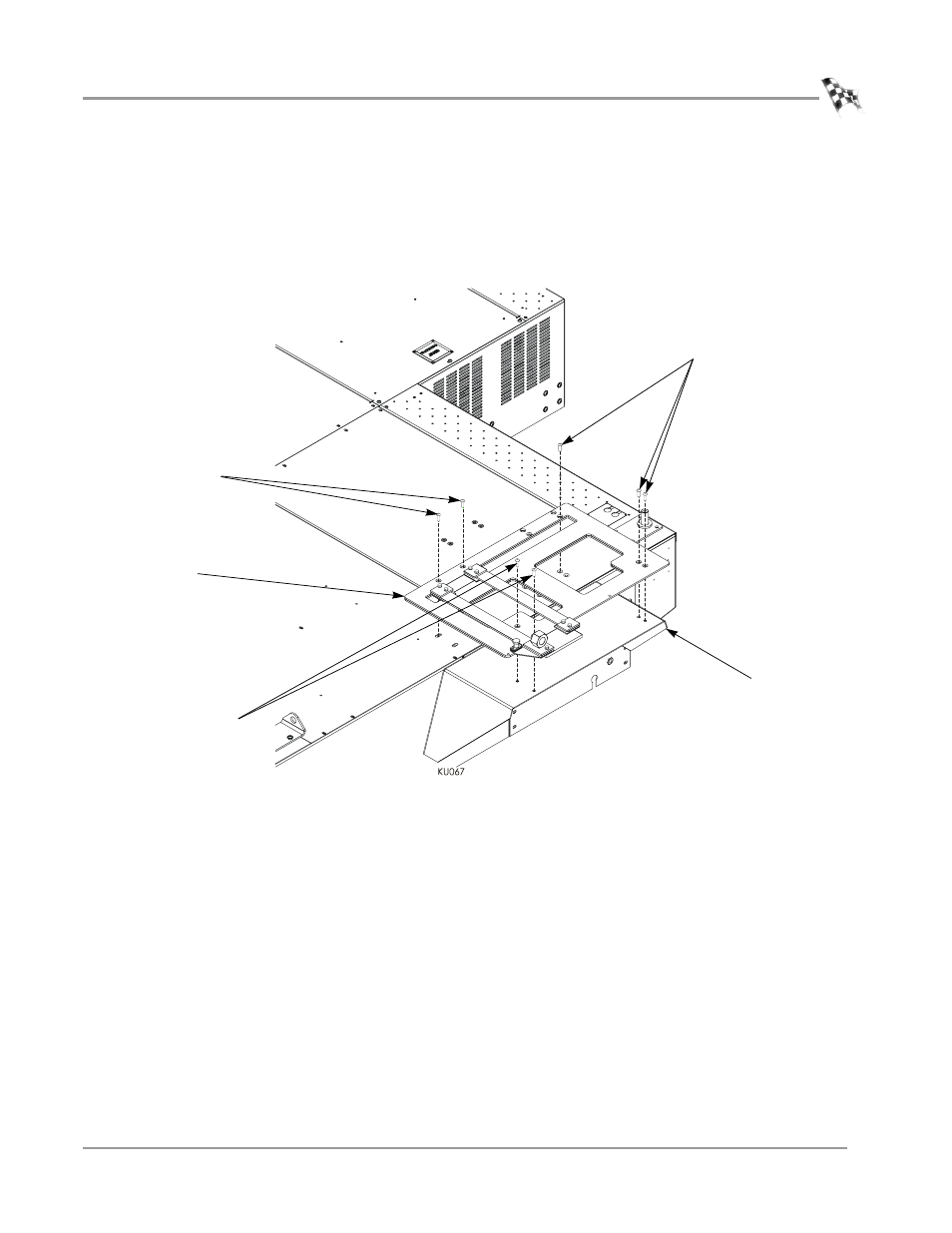

Figure 4: Installing the Trike Carriage Adapter Assembly
5/16 x 1-inch bolts
3/8 x 1-inch bolts
trike carriage
adapter assembly
5/16 x 1-inch bolts
extension support
