Extended Carriage with Trike Adapter Assembly Installation Guide
E X T E N D E D C A R R I A G E W I T H TR I K E A D A P T E R A S S E M B L Y I N S T A L L A T I O N
4
R EMOVING THE C ARRIAGE S CREW AND C ARRIAGE
The monitor stand and high pressure blowers are not shown for clarity.
If the carriage is not installed, skip to “Installing the Extension Support and Trike
Carriage Adapter Assembly” on page 6.
1
Remove the four 1/4-20 x 1/2-inch button-head screws securing the bearing
bracket and set aside.
2 Using the hand crank, or the control panel to run the power carriage, run the
carriage screw out of the carriage assembly and set aside.
3 Slide the carriage assembly towards the rear of the dyno. Remove the carriage
assembly and set aside.

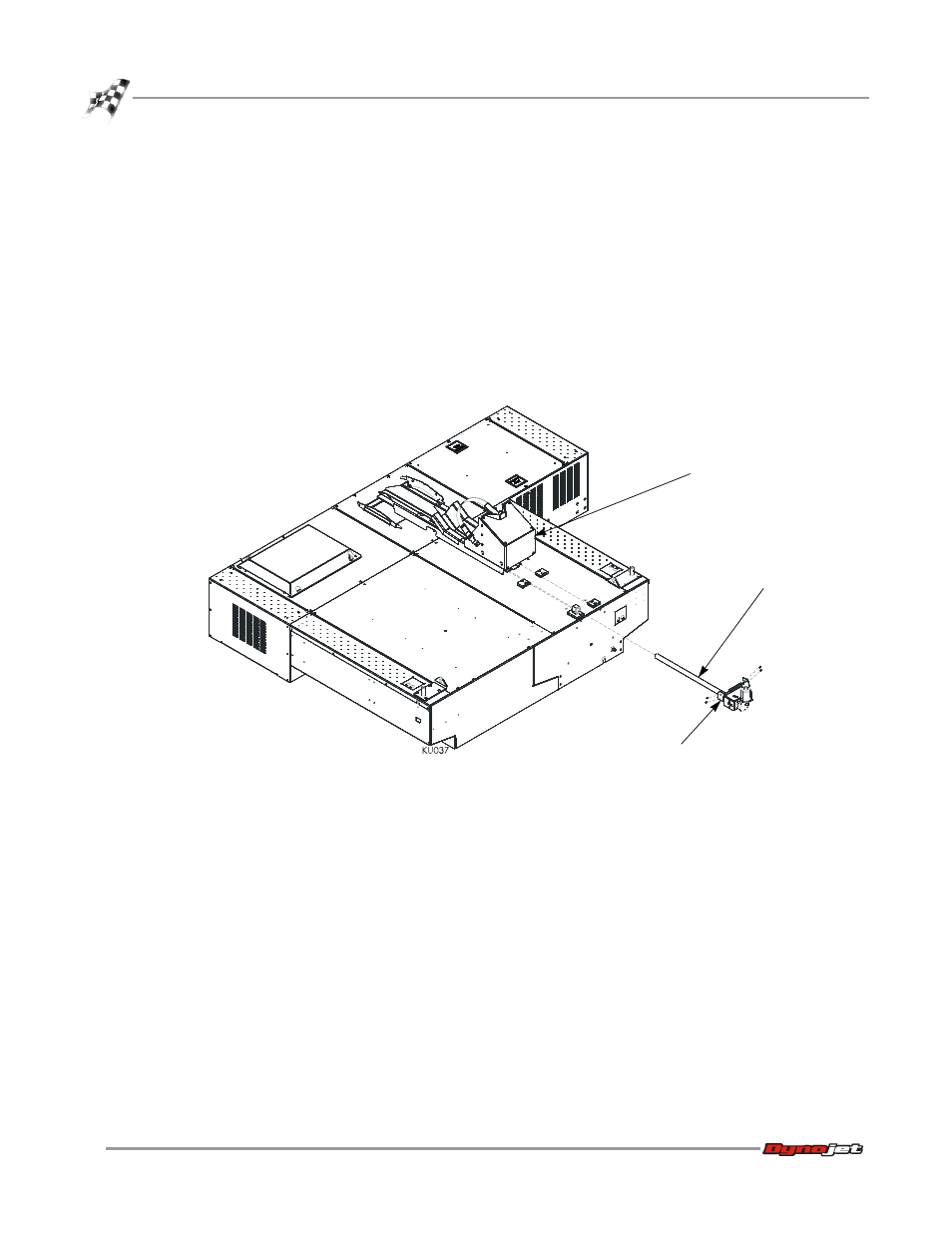

Figure 1: Removing the Carriage Screw and Carriage
carriage assembly
carriage screw
bearing bracket
