Copernicus TEC707 User Manual

Page 9

background image

TEC505_TEC505B_TEC505C_TEC707 - Version C - Released September 19, 2014 - Copernicus Educational Products Inc.

3

You will need:

(Not to Scale)

Actual Size:

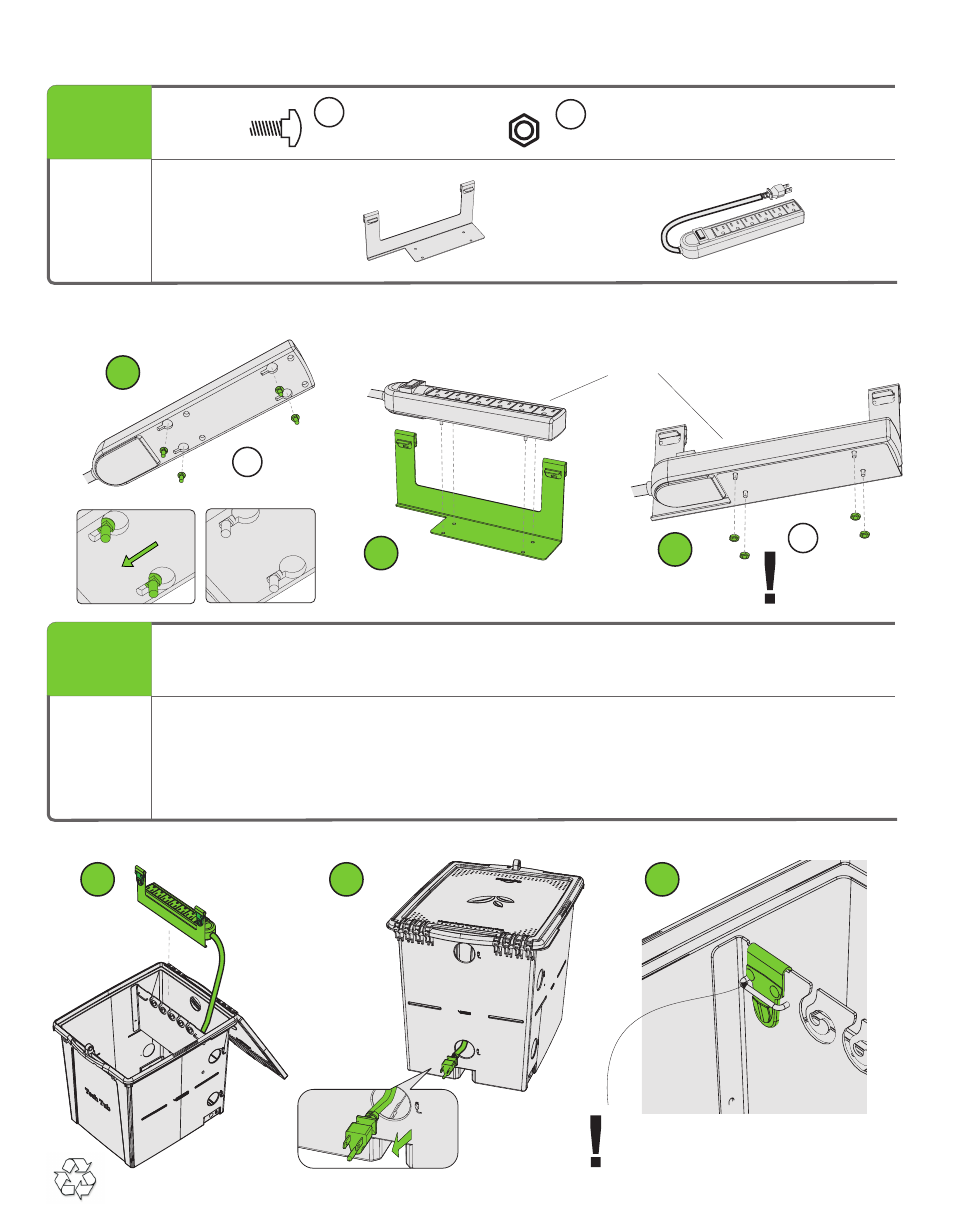

Install Carriage Bolts on Power Strip and Mount to Power Strip Tray

!

Skip to step 5 in you are not setting up TEC500.

FOR TEC505
SETTING UP
TEC500

A

2

3

M4 Carriage Bolt
4x

A

M4 nut
4x

B

B

Tighten fully

Note orientation
of power strip

1

Power Strip
1x

Power Strip Tray
1x

Install Power Strip Tray in Tech Tub™

4

You will need:

(Not to Scale)

Actual Size:

Push down Power Strip Tray
until the clasp is fully engaged.

1

3

2

FOR TEC505
SETTING UP
TEC500

9
