Top View
Handle
1x
Double lock at the highest hole
(to prevent accidental disassembly)
- Press both to lower height
Highest Hole
Position
Lowest Hole
Position
There are two hole positions
for the handle

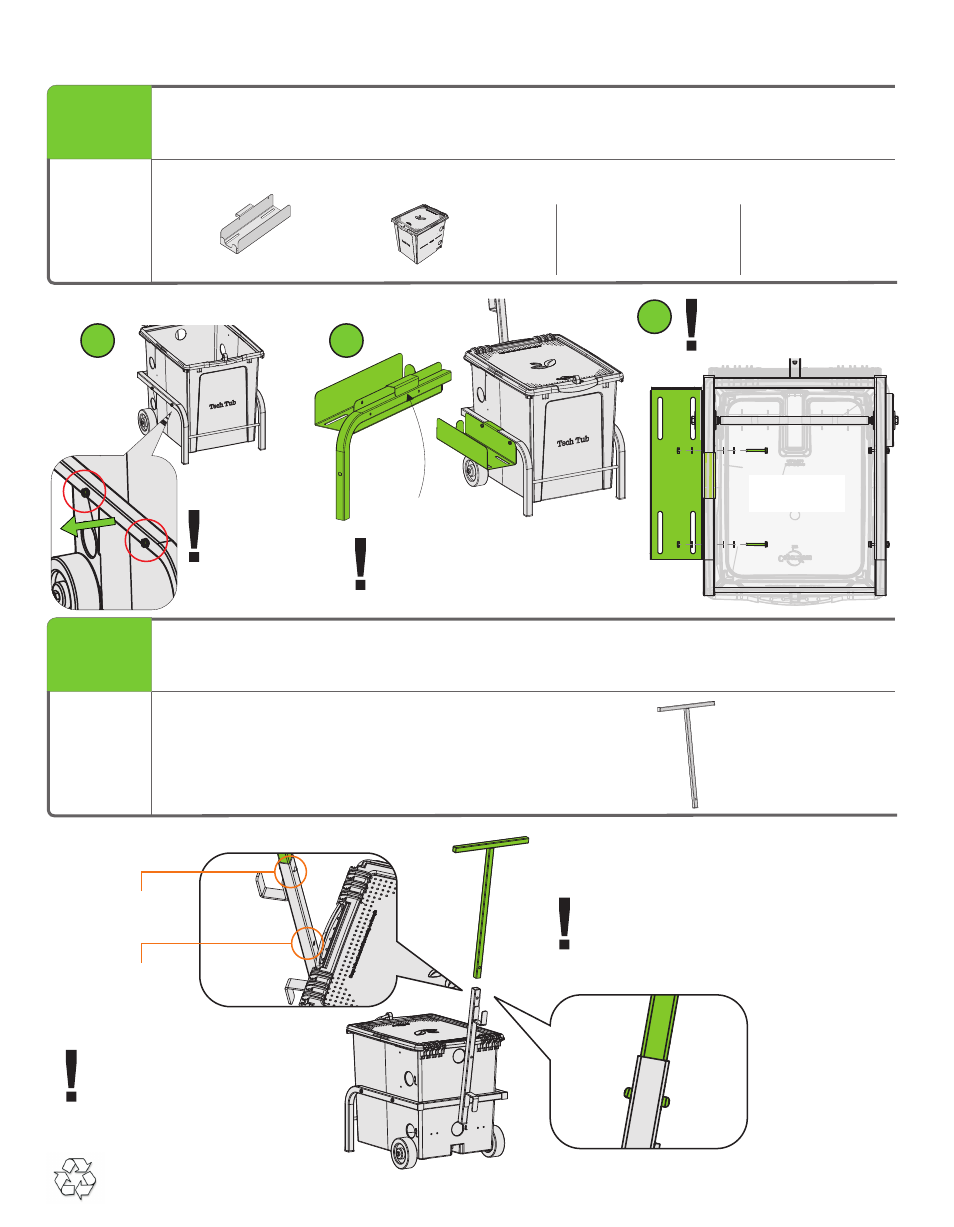

Install the Handle
2
You will need:
(Not to Scale)
Actual Size:
1
You will need:
(Not to Scale)
Actual Size:
Install the Powerbar Tray
!
Skip to step 2 if you are NOT installing a Powerbar Tray. (TEC505)
FOR TEC505B,
TEC505C,
TEC707 CARTS
Powerbar
Tray
1x
OR
OR
TEC707
1x
Tech Tub™ -
7 Device (TEC700)
Premium
TEC505C
Tech Tub™ - Premium 5
Chromebooks (TEC500C)
1x
TEC505B
1x
Tech Tub™ -
Base (TEC57)
1
3
2
Undo the
bolts shown
Make sure the Powerbar
Tray tab is hooked
around the Right Side Leg
Right Side
Use the same hardware
to mount the powerbar
tray in place
