Copernicus RC106 - Manual (Page 6)

RC106 - Version A - 29 July 2014 - Copernicus Educational Products Inc.
4
Front Frame Support x 2
1 Left, 1 Right
You will need:
(Not to Scale)
x 2 x 2
Actual Size:
A E

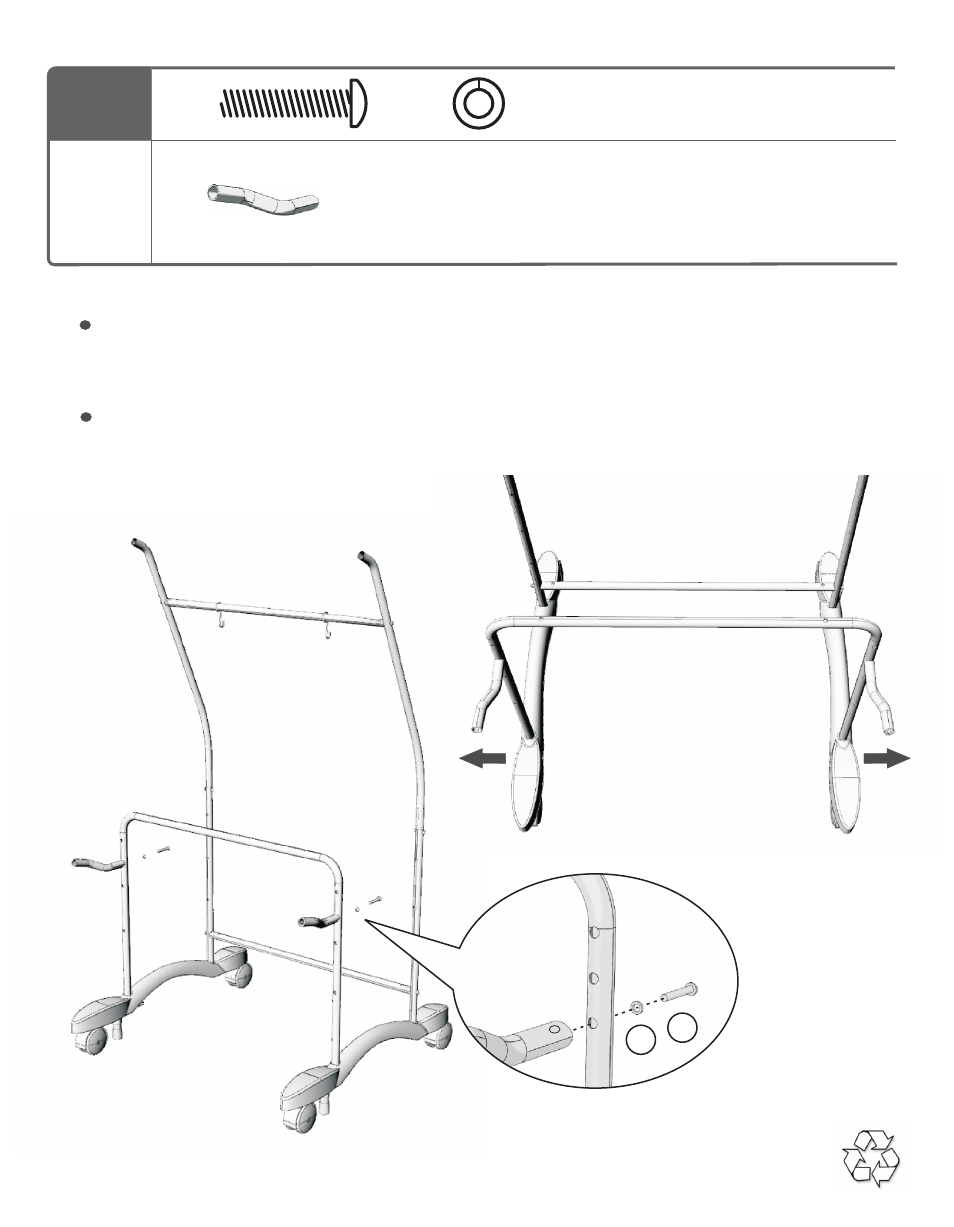

Install Front Frame Supports
Align the end of the Left Front Frame Support marked with a Left sticker with the hole
marked with a dot sticker in the Center Frame on the left side.
- Fasten with one Bolt A & Washer E
- Tighten bolt
Repeat for Right side
- Ensure that the Front Frame Supports angle outward; there is a definite Left & Right,
ensure that each is on the correct side
!
Note outward angle
E
A
R
Use labels to help you
assemble correctly
