Do not tighten any fasteners, unless instructed – Copernicus AUD4 User Manual
Page 4
1

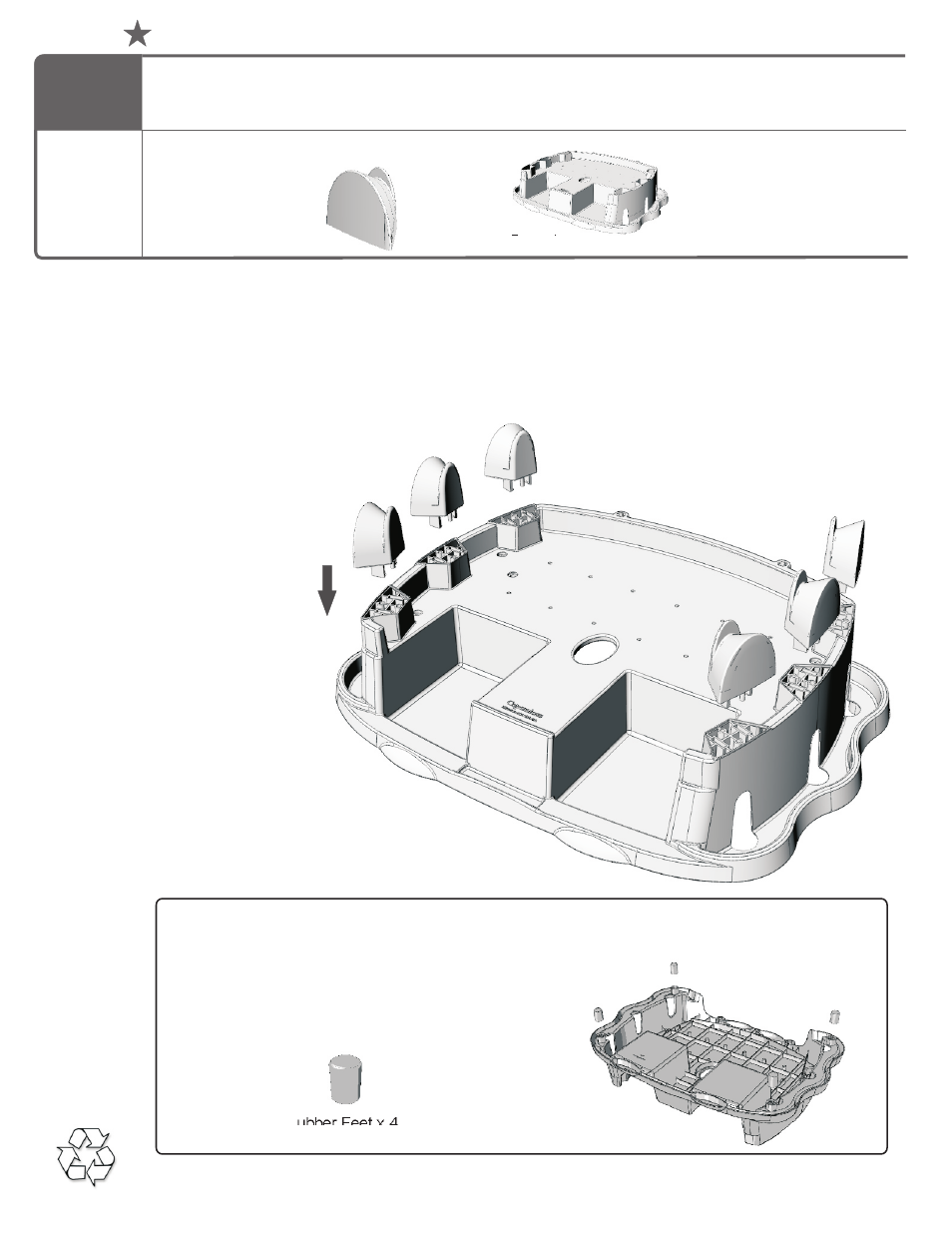

Attach Headphone Holders to Plastic Top
Align a Headphone Holder with the matching cutout in the Plastic Top
- Insert 2 Centre Pins first
- Press Headphone Holder down firmly into place. You may need to “wiggle in” the holder so one Side Tab goes
in before the other. NOTE: Headphone Holder may be very hard to snap in because once installed, they are not
meant to be removed.
Repeat for remaining Headphone Holders
Headphone Holder x 6
You will need:
(Not to Scale)
Actual Size:
Plastic Top x 1
Do not tighten any fasteners, unless instructed
Rubber Feet x 4
Align a Rubber Foot with the matching post in the underside of the Plastic Top
- Insert Foot over the outside of the largest inner ring
Repeat for remaining Rubber Feet
AUD1/AUD3 ONLY:
Assembling an
AUD1 or AUD 3?
You only need to complete
Step 1 and your tabletop
AudioPod is ready for use!
