Wiring diagrams, Wiring diagram - with arrowstik, Wiring diagram - standard – Code 3 WingMan with TriCore for 2008 Chevy Impala User Manual
Page 5
5

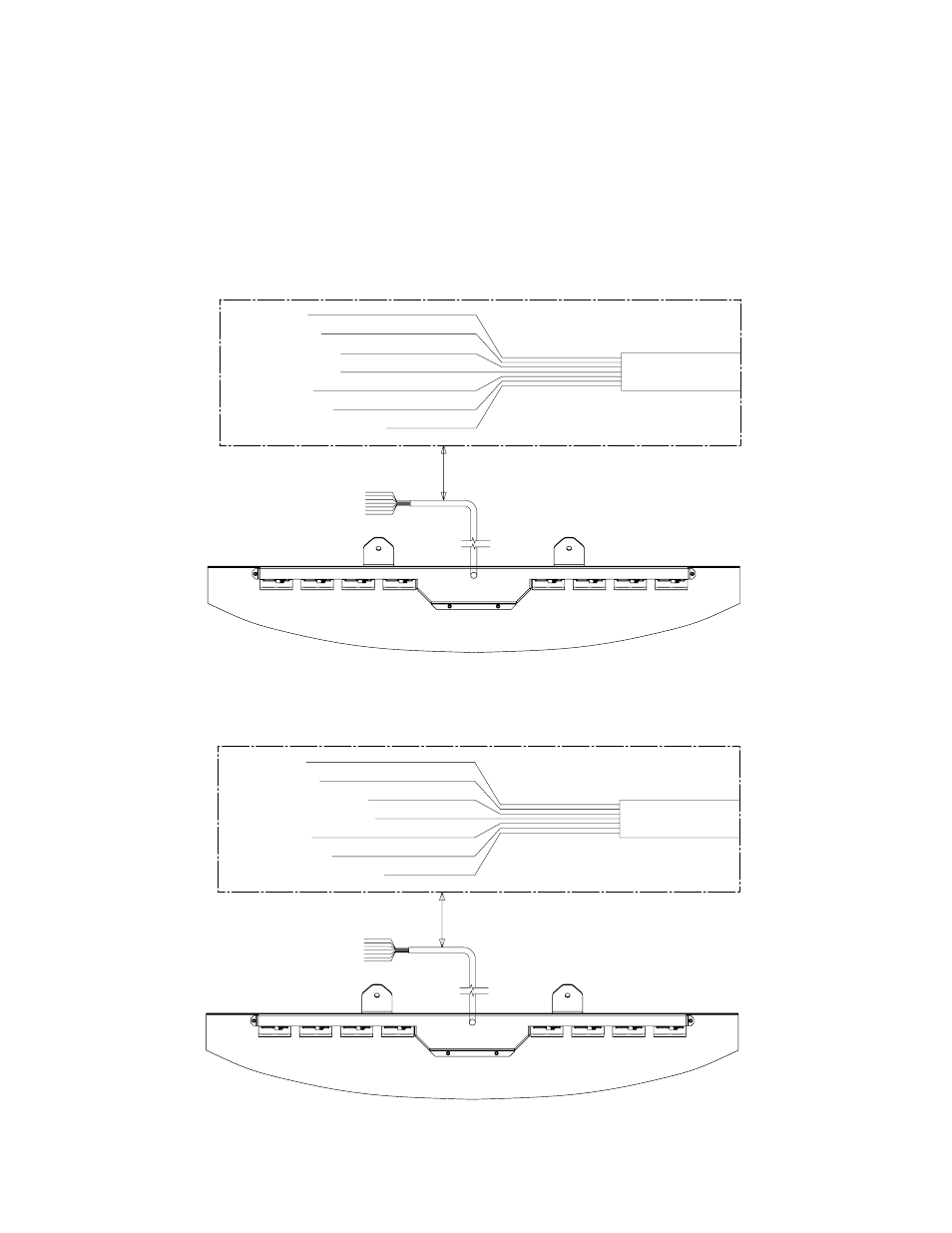

Wiring Diagrams
FUSE WITH CUSTOMER SUPPLIED 10 AMP FUSE
GREEN (PATTERN SELECT)
WHITE (DIMMING)
RED (POWER)
YELLOW (LEVEL 3)
ORANGE (LEVEL 2)
BLUE (LEVEL 1)
BLACK (GND)
Wiring Diagram - WITH ARROWSTIK
GREEN (PATTERN SELECT)
WHITE (DIMMING)
RED (POWER)
YELLOW (RIGHT ARROW)
ORANGE (LEFT ARROW)
BLUE (LEVEL 1)
BLACK (GND)
Wiring Diagram - STANDARD
Connect the black lead to a solid frame ground (earth), preferably the (-) or ground (earth) side of the battery, and the
power wire to the +12V terminal of the battery. Connect the remaining wires as shown below. For light bars with the
ArrowStik® option see Wiring Diagram WITH ARROWSTIK below.
