Code 3 T-Rex Series - Manual (Page 2)

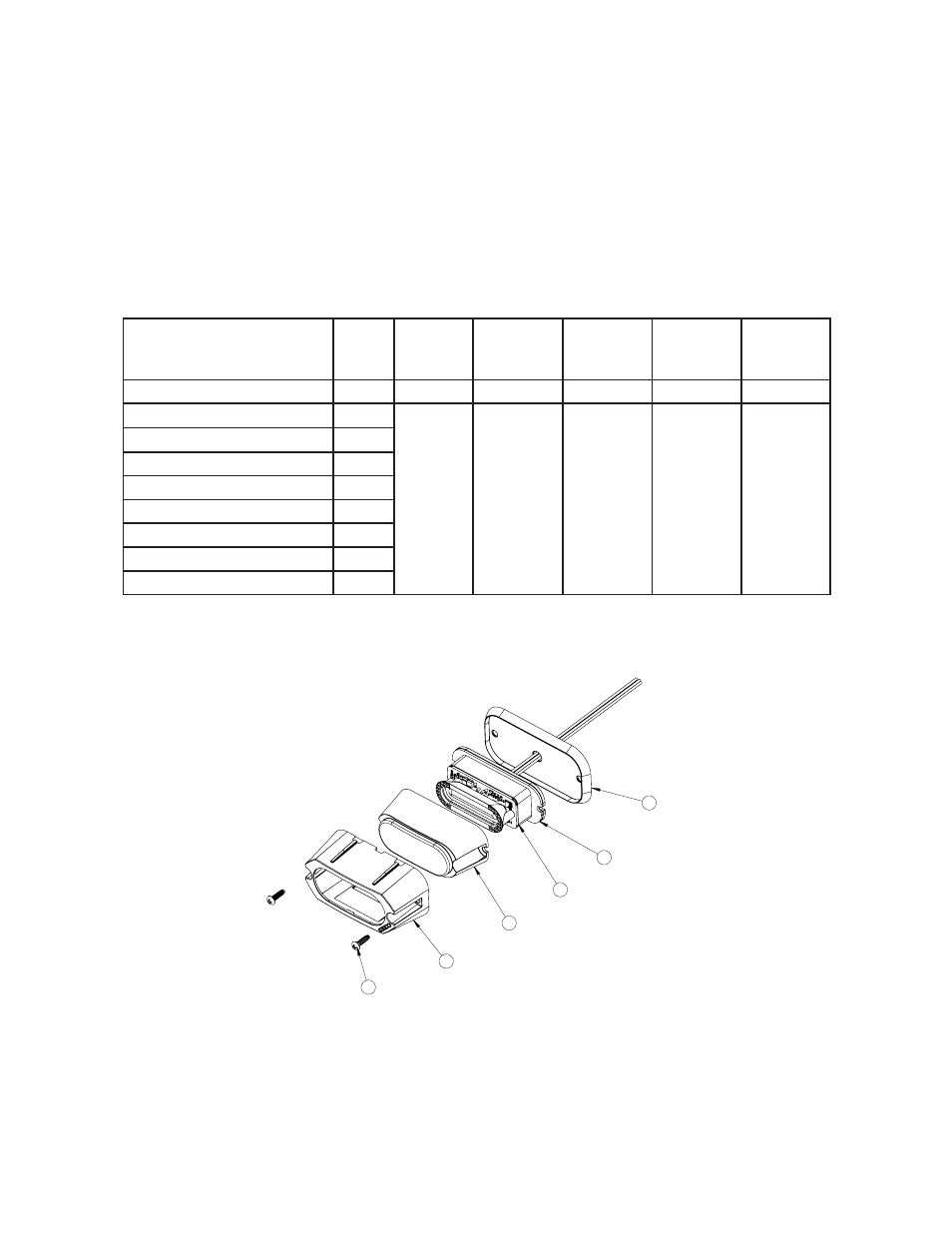

FIGURE 1
2
TABLE 1
Note: Units come standard with black bezels. Chrome bezels, pn T52162, can be ordered separately.
1
2
3
4
5
6
Assembly
(Fig 1)
1
Light
Head
2
Outer
Lens
3
Seal
Lens
4
Black
Bezel
5
Bezel
Gasket
6
Mounting
Screws
TRX6A (Amber) ---------
T52156 T52155 T52163 T52150 T15759
TRX6B (Blue) ---------
TRX6R (Red) ---------
TRX6W (White) ---------
TRX6RA (Red/Amber) ---------
TRX6RB (Red/Blue) ---------
TRX6RW (Red/White) ---------
TRX6BW (Blue/White) ---------
6. Verify proper light head operation by supplying electrical power to the system wires.
7. Push the assembled electrical connectors through the center opening and into the vehicle.
8. Secure the assembled light head to the vehicle using the two #6 screws. To ensure the unit is properly installed and
seals properly seated, torque the screws as follows: 6 in-lbs to 13 in-lbs.
Parts List and Exploded Views
NOTE: It is acceptable to install the light without the Bezel Gasket (ref Figure 1).
