7

Troubleshooting

All SuperVisor™ TLs are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the

life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the

factory technical help line at 314-996-2800.

Follow the guide below for information on repair and troubleshooting.

TROUBLESHOOTING GUIDE

Note: LED modules must be replaced as a module. There are no user serviceable parts.

PROBLEM

LED module not
operating when
powered.

QUESTIONS

POSSIBLE CAUSE

a. Bad power/ground

connection.

b. Defective module.

SOLUTION

a. Fix connection.

b. Replace module

N/A

Directional module Flash Pattern - Table 2

CycleFlash (DEFAULT)

Quad Pop Flash75

NFPA QuadFlash75

Triple Pop Flash75

Steadyburn

SingleFlash375

ModelFlash

SingleFlash250

ActiveFlash

SingleFlash150

FiveFlash70

FiveFlash150

QuadFlash70

QuadFlash150

TripleFlash70

DoubleFlash150

DoubleFlash70

TripleFlash150

SingleFlash75

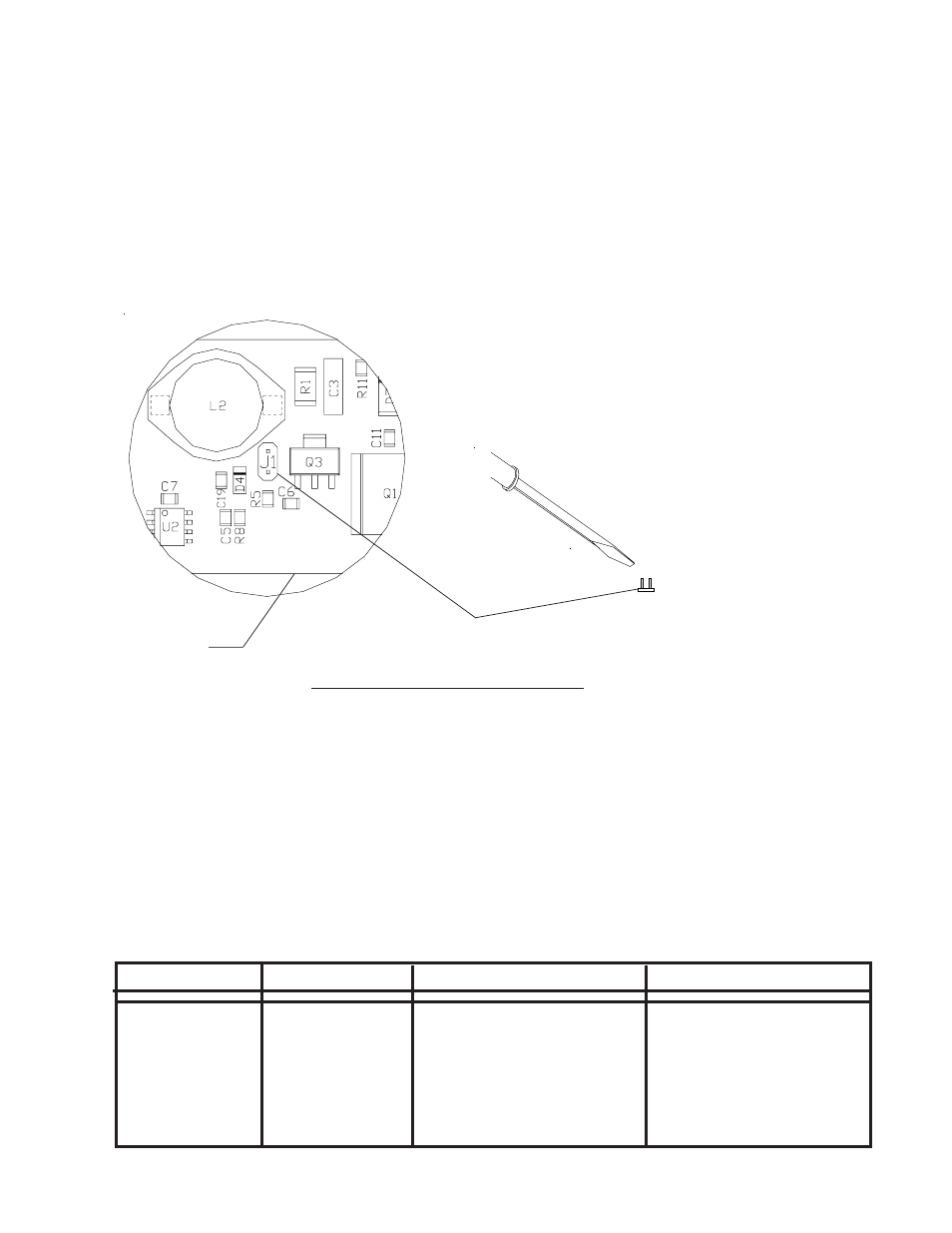

Flash Pattern Header for OPTIX/LEDX

J1

Momentarily short and release
to change patterns

PCB
