8
Reference Number Part Description Part Number Quantity
1 Outer Mtg. Brkt. Impala Pass Side T14713 1
2 Chassis T14704 1
3 Inner Mtg. Brkt. Impala T14700 2
4 Outer Mtg. Brkt. Impala Drivr Side T14714 1
5 Outer Panel T14703 1
6 Torus Multi Color Forward Facing Lt Head Module Contact Code 3, Inc for P/N 4
7 Torus Multi Color Passenger Intersection Lt Head Module Contact Code 3, Inc for P/N 1
8 Torus Multi Color Driver Intersection Lt Head Module Contact Code 3, Inc for P/N 1
4
3
2
5
1
8
7
6

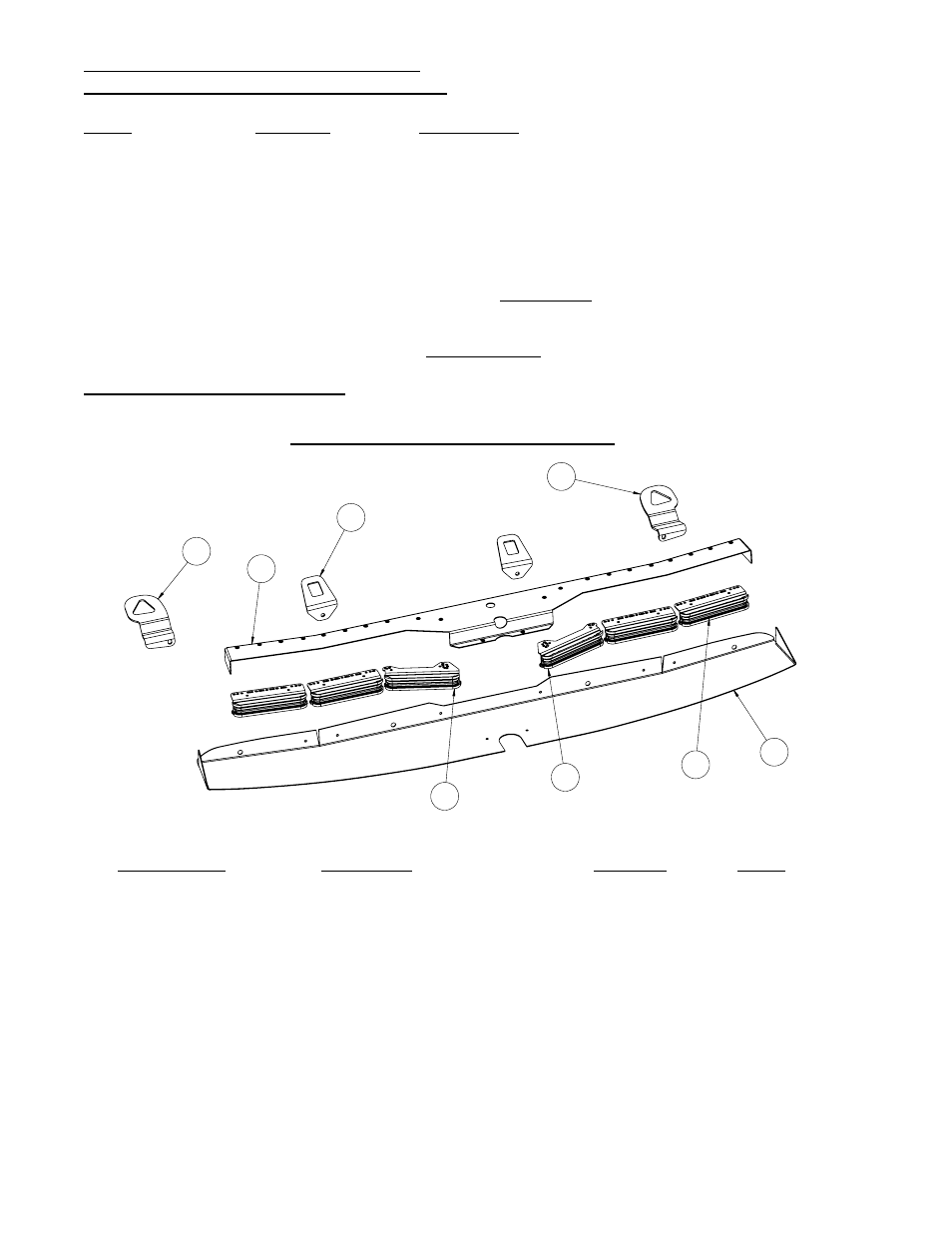

Parts List - Multi Color SuperVisor-MC
Cruise is configurable to any symetric setting.
TD Steady is configurable to any symetric setting.
Cruise TD Steady Scene Steady
2 Outter Secondary Steady 2 Inner Secondary All 6 Secondary
2 Outter Secondary Flicker 2 Middle Secondary
4 Outter Secondary Steady 2 Outer Secondary
4 Outter Secondary Flicker 4 Inner/Middle Secondary
6 Outter Secondary Steady 4 Outer/Middle Secondary
6 Outter Secondary Flicker 4 Inner/Outer Secondary
Cruise is lowest priority and will not work when any other feature is enabled. Different combinations of
lights can be used as Cruise by tapping the Sequence wire to +12V while only the Cruise is turned on.
TD Steady will work with or without Level 1, 2, or 3 lights engaged. Different combinations of lights can be
used as the TD by tapping the Sequence wire to +12V while only the TD Steady is turned on.
Scene Steady overrides all other functions.
