Code 3 LED X Exterior Light - Manual (Page 5)

Installation:
Single Exterior LED Module (LXEX1, LXEX125P):
This unit can be mounted to metal surfaces using two #8 x 1/2 pan head sheet metal screws
(included). This unit can also be mounted to plastic surfaces using two #8 x 1/2 pan head
machine screws (included). An additional 0.25" minimum diameter mounting hole is needed to
mount the single exterior LED module. The cable routing hole can be drilled (Refer to Figure
as shown below). An optional mounting rubber gasket, included with the unit, may be used to
prevent oxidization and galvanization of the mounting surface due to metal-on-metal contact.

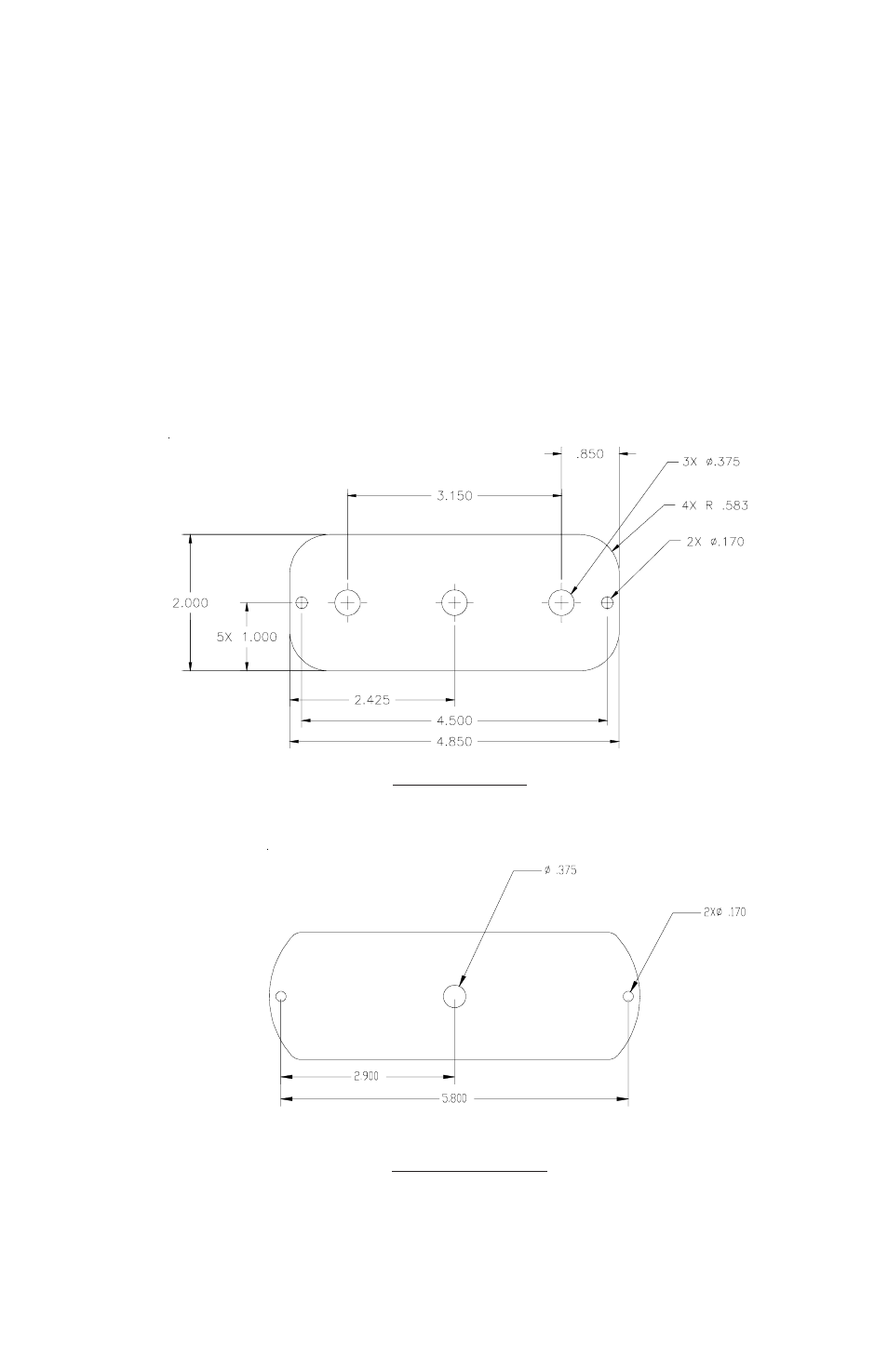

Figure 1 LXEX1
Figure 2 LXEX125
