5. To install the positive and negative power wires, strip 1/4” of insulation from the end of the wires, insert the red wire into
the left port of the two-position, pluggable connector (color green), which corresponds to the “+12V” position, and the
black wire into the right port, which corresponds to the “NEG” position, and tighten the screws. The “+12V” position may
be connected either directly to a +12V source (such as a battery), or through a switch (such as an ignition switch).

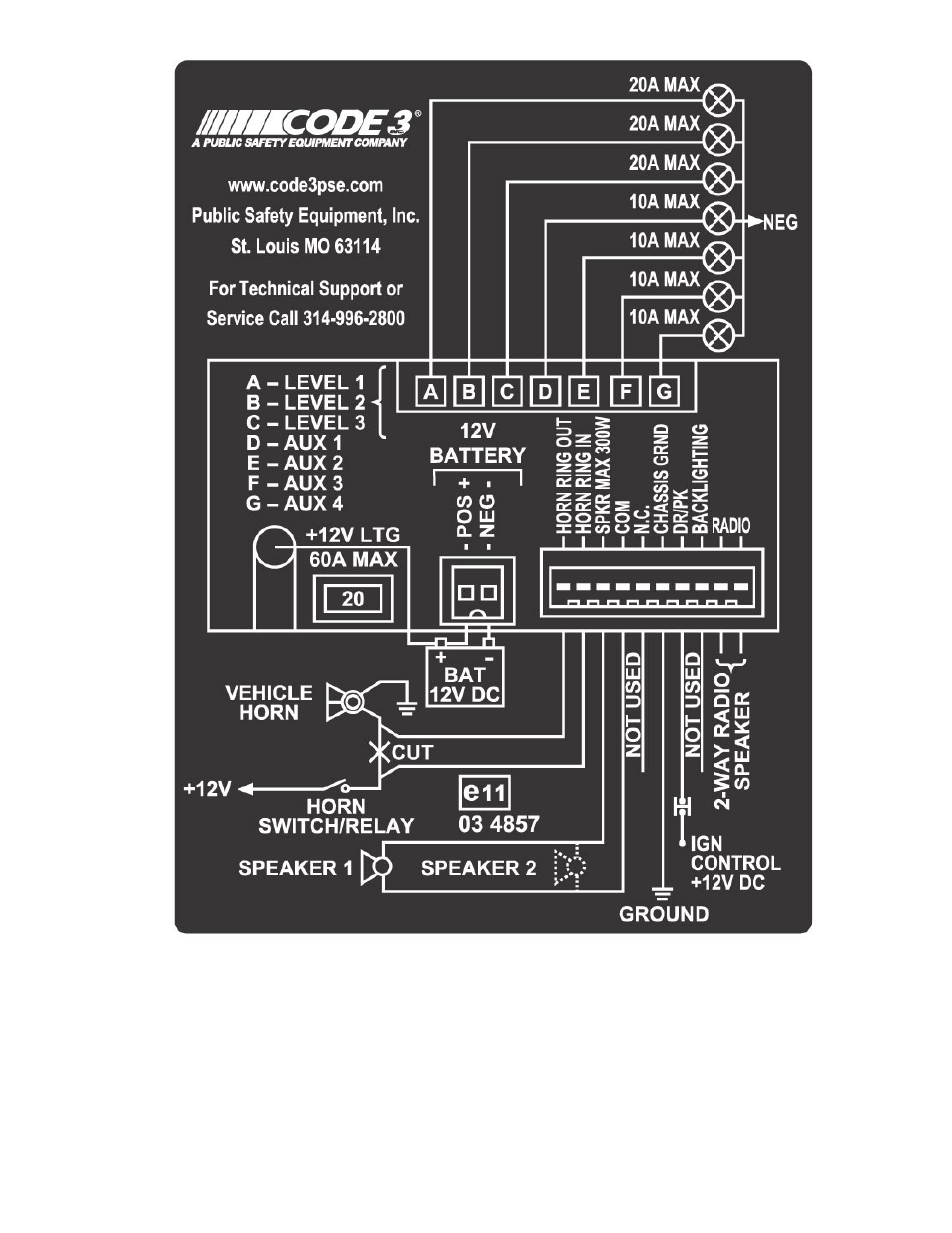

Figure 1 - Wiring Diagram
