3
8. Install (2) flat washers & (2) Kep nuts onto studs
and tighten firmly (fig. 3)
9. Wiring & Operation:
(See instructions contained within the
PAR 36 light head unit. selected)
10. Replace Push-in fasteners into wheel well covers
and replace lower hex head fastener to bottom posi-
tion on wheel well cover.

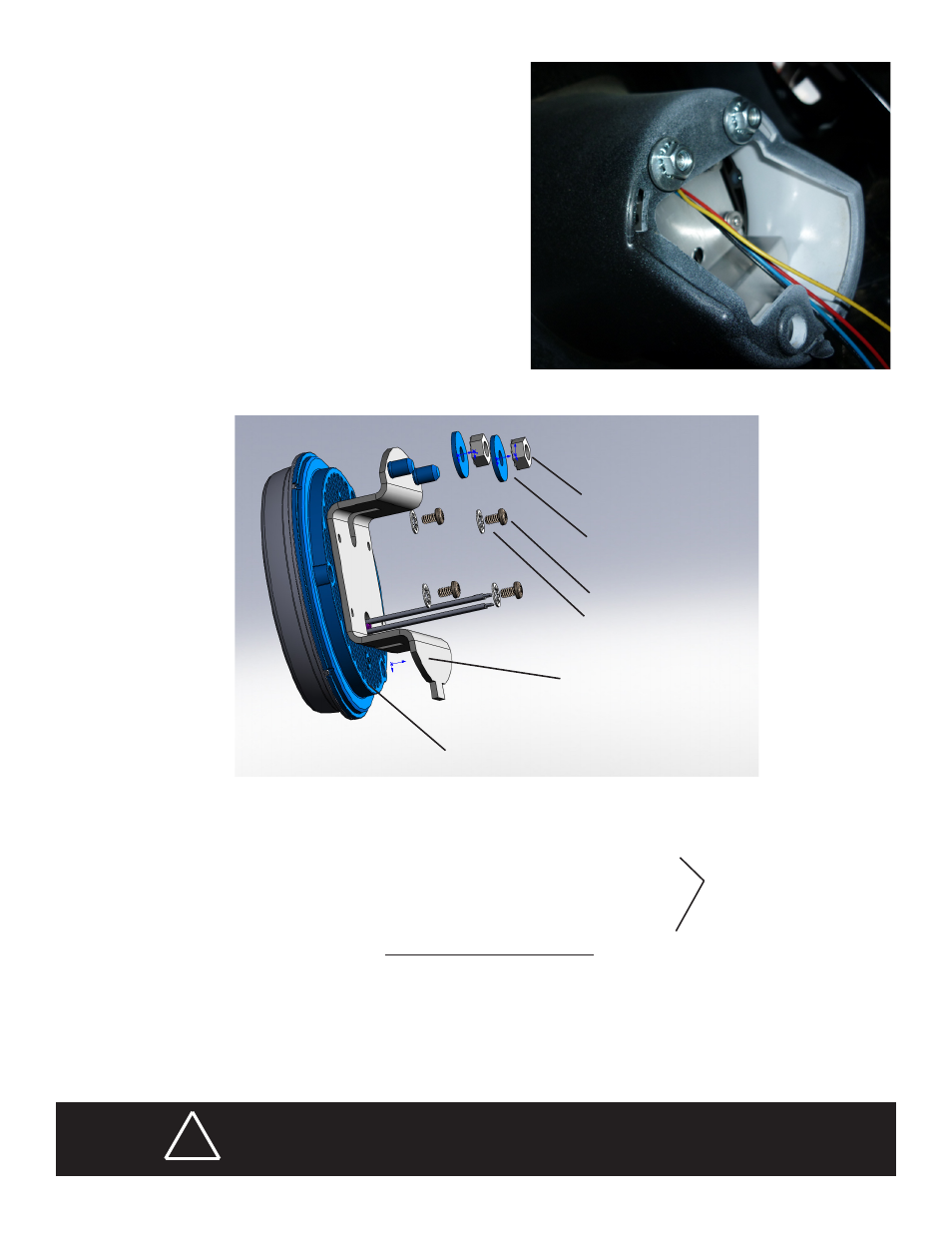

Fig 3
Parts List:
Keps Nut (#4)
Flat Washer (#3)
Mounting Screw
Internal Tooth Washer
Mounting Bracket (#2)
PAR 36 Light Head (#1a, 1b, 1c, 1d)
Fig 4
No: Part Number: Description: Qty:
1a. T11655 Blue Led with Blue Lens 1
1b. T11657 Blue Led with Clear Lens 1 choice
1c. T11659 Red Led with Red Lens 1 of 1
1d. T11658 Red Led with Clear Lens 1
Choice of Led also contains:
Mounting Screw 4
Internal Tooth Washer 4
2. T56456 Mounting Bracket 1
3. T00670 Flat Washer 2
4. T15105 .25 x 20 SS Keps Nut 2
WARNING
!
Utilizing non-factory specified screws and/or mounting brackets and/or the improper number of screws may result
in failure of the mounting system and severe damage to the vehicle as well as loss of warranty coverage on the
equipment.
