Routine Service and Maintenance
If the chain tension needs to be adjusted:
1. Loosen the adjustment bolt lock nut (Item 2, Figure 4–19 )
2. Rotate the chain adjustment bolt (Item 3, Figure 4–19 ) to increase or decrease pressure on
the boom until the proper chain sag is measured.
3. Tighten the adjustment bolt lock nut.
4. On a monthly basis, lubricate the adjustment bolt using the grease zerk (Item 1, Figure 4–19 ).

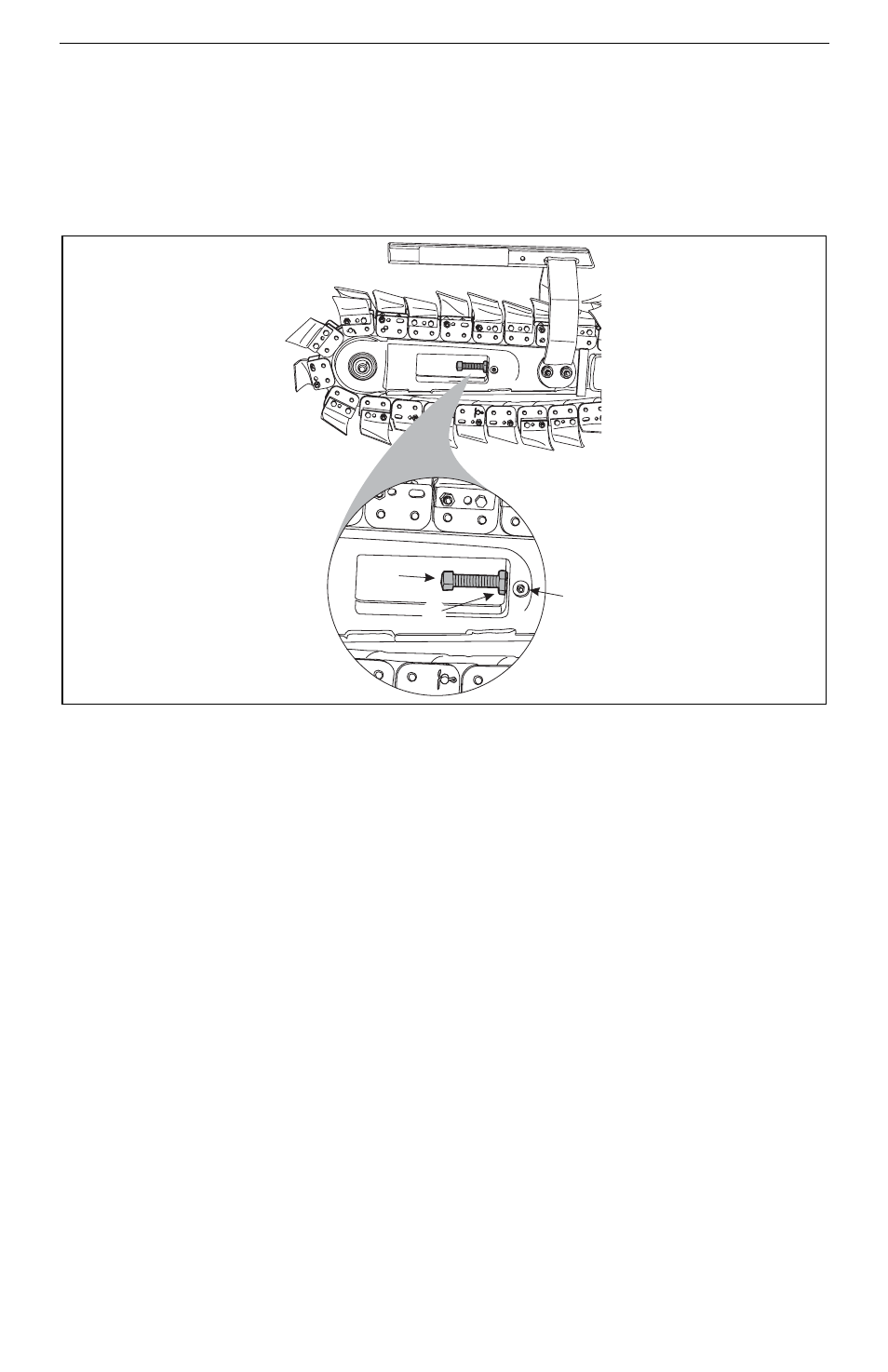

Figure 4–19 Chain Tension Adjustment
1
3
2
