BoonDocker KTM XC-W: 450/500 - Manual (Page 4)

Revised 12/20/2013 Page 4 of 5
www.boondockers.com………………..... ……….………………....877-522-7805

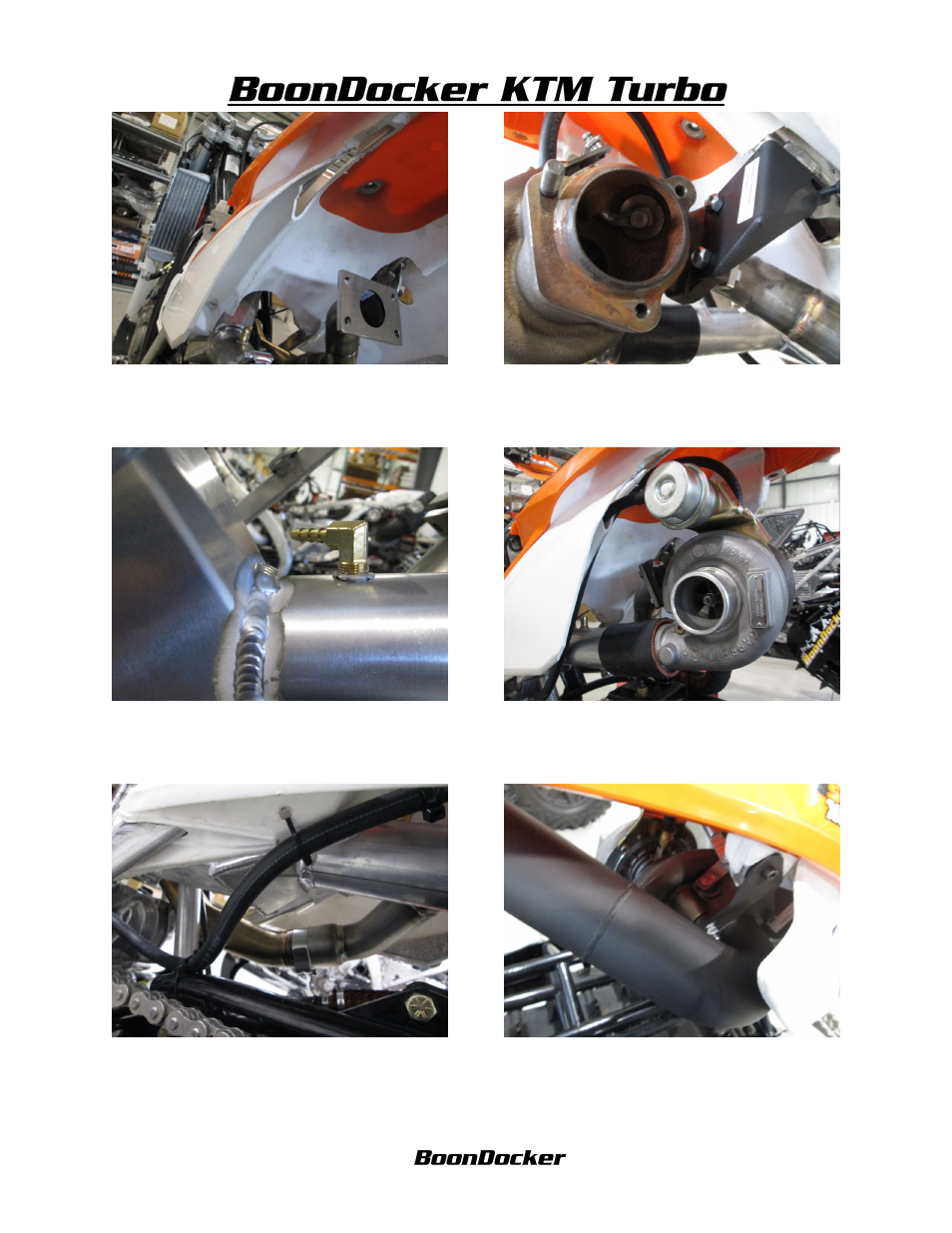

13. place inlet on header. Leave clamp loose. 14. Place turbo in place and mount inlet bracket
on the sub frame, header inlet and turbo inlet.
Place bolts in and nuts on, leave loose.
15.run pito line to the elec. boost solenoid. Rout
actuator line from actuator to the top of the boost
solenoid around the battery through cut hole 16. Rout oil feed line and drain line to turbo.
Tighten drain line clamp and feed line nut. Zip
tie boost line to the actuator.
17. Zip tie feed line and drain line to panels and
Timbersled frame away from hot parts & chain. 18. install muffler and outlet bracket.
