1. Insert the back side holes of the height rod into the two bolts on the front side of

pillar, loose the height rod downwards on right position. (Fig.4-1)

2. Use the wrench to tighten the two hex-head screws. Do not overtighten the

screws.

3. Take away the wrench from the two hex head screws. (Fig.4-3)

IV.

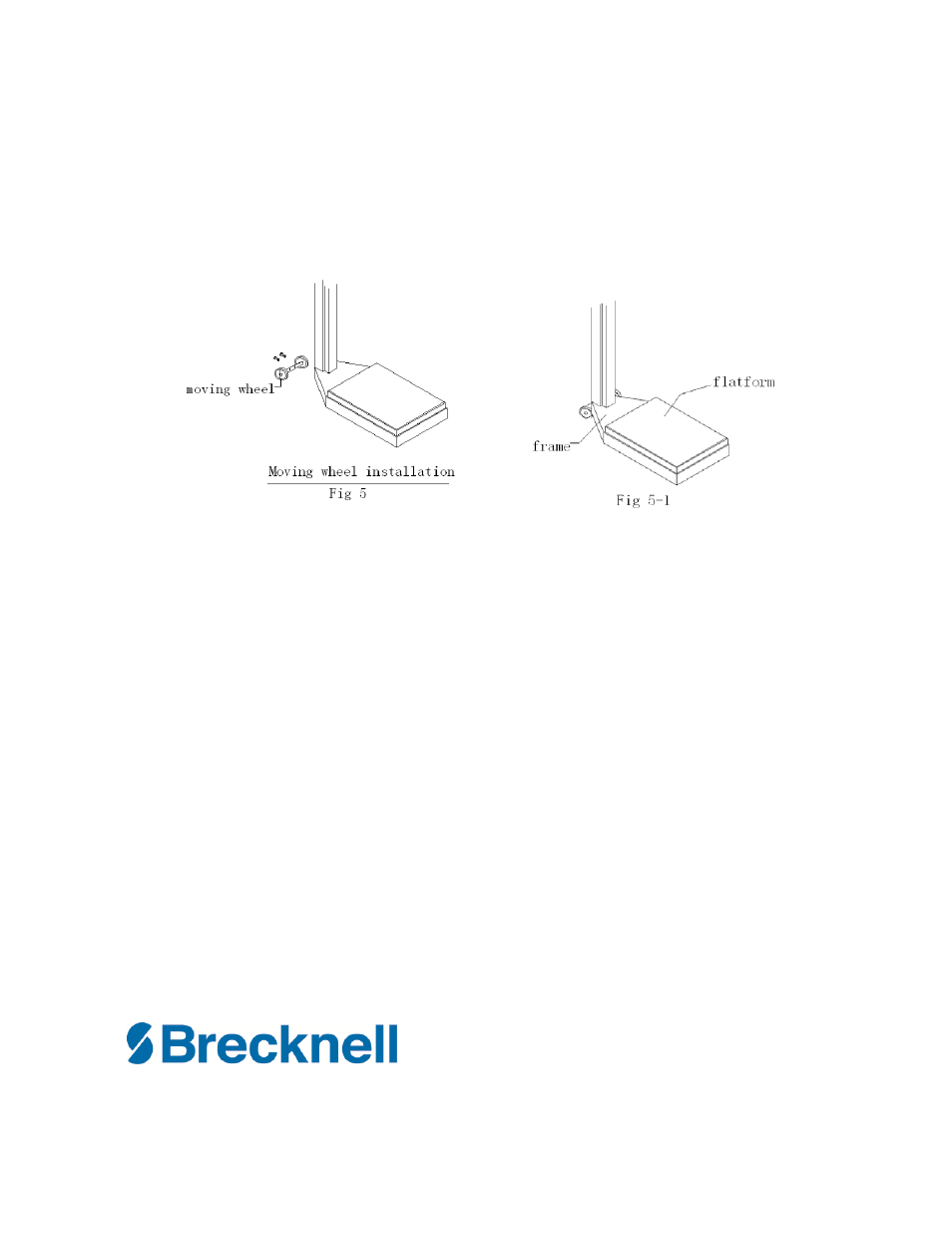

Moving Wheel Installation (Fig.5):

1. Turn the angle iron of wheel and make one side upwards, the other side with

two holes opposite to the backside of frame (Fig.5-1)

2. Use the screws and washers to fix the wheel to the platform, adjust the angle

iron at a level position, then tighten the screws.

When moving the scale, hold the two side faces of the pillar to keep the front
side of the platform away from ground.
