Service Configuration Settings
The scale is configured from the factory to match the specified settings for each unit, as defined by the product
specifications and sales brochure. Modification of the setting can be accomplished by altering user configuration
settings P11-P19. Caution: Configuration of the settings of your scale should be accomplished by a trained
service technician to ensure proper operation and accuracy. Configuration is not covered under warranty.
Setup Controls
Config
Menu
Avail.
Settings
Default Definition
Detailed
Setting
P11 0,1,2
2
Units key
configuration
0 = KG only ; 1 = LB only ; 2 = units key active KG
and LB
P12
0-7
7
Power On zero
range (full
scale)
0 = +/- 1% ; 1 = +/- 2% ; 2 = +/- 5% ; 3 = +/- 10% ; 4 =
+/- 20% ; 5 = +/- 50% ; 6 = +/- 100% ; 7 = no limitation
P13
00 - 15
3
Zero button
range (Full
scale)
(00) = +/- 1% (06) = +/- 20% (12) = + 5%
(01 )= +/- 2% (07) = +/-no limit (13) = + 10%
(02 )= +/- 3% (08 )= + 1% (14) = + 20%
(03 )= +/- 4% (09) = + 2% (25) = + no limit
(04) =+/- 5% (10 )= + 3%
(05 )= +/- 10% (11) = + 4%
P14
0, 1, 2
0
Signal within
power on zero
point range
0 = current weight ; 1 = calibration zero ; 2 = power off
zero point
P15
0, 1, 2
1
Signal not
within power on
zero point
0 = current weight ; 1 = calibration zero ; 2 = power off
zero point ; 3 = continuously display “0
- - - - -
“
P16 0-8
6
Zero tracking
0 = 0d AZT off ; 1 = +/- 0.25d, 2 = +/- 0.5d ; 3 = +/- 1d;
4= +/- 1.5d ;5= +/- 2d ;6 = +/- 3d; 7= +/- 4d; 8 = +/- 5d
P17
0-3
2
Data Filter
0 = very weak; 1 = weak; 2 = standard; 3 = strong
P18
0 - 9
1
Weight stability
0 = +/- 0.5d ; 1= +/- 1d; 2= +/- 1.5d ; 3= +/- 2d; 4= +/-
3d ;5= +/- 4d ;6 = +/- 5d; 7= +/- 6d; 8 = +/- 7d; 9 = +/-
8d
P19 0-9
1 Overload
range
Full scale
0 = 0% ; 1 = +9d ; 2 = 101% ; 3 = 102% ; 4 = 405% ;
5 = 110% ; 6 = 120% ; 7 = 150%; 8 = 200%; 9 = no
limitation

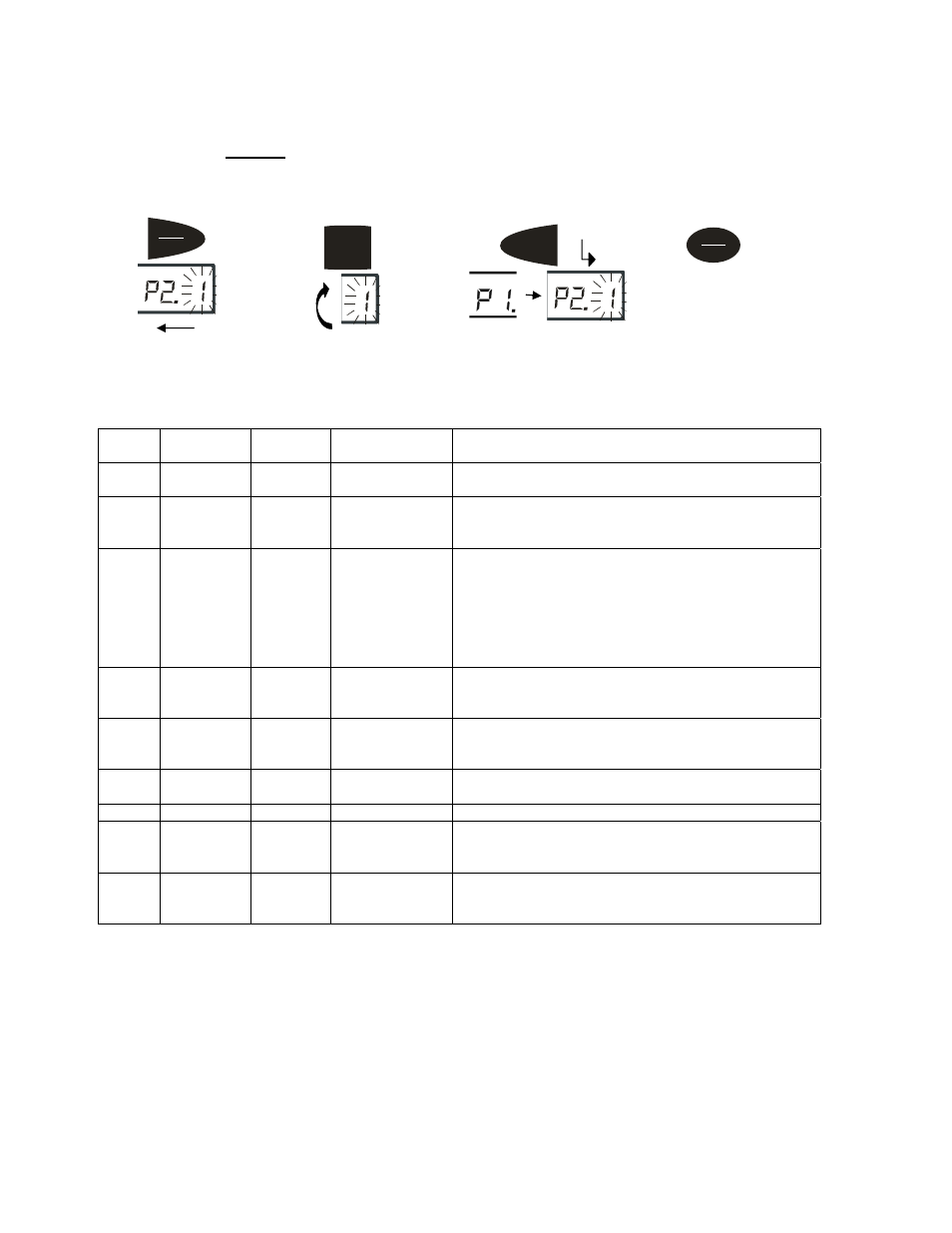

Hold
kg
Moves flashing digit
Units
Change flashed digits
Tare
kg
Saves data and move down
to next Parameter setting
.
On/Off
Zero
Exits setup mode
