6

Connecting External Devices to I/O Cable

No.

Function

(1)

Power 12V

(2)

Digital Output

(3)

Digital Input

(4)

Ground

[Note] Maximum power output is 12V/100mA

Power LED

LED

Status

Steady Red

Heating

Blinking Green

System working

Steady Green

Booting

Firmware updating

No Light

Power off

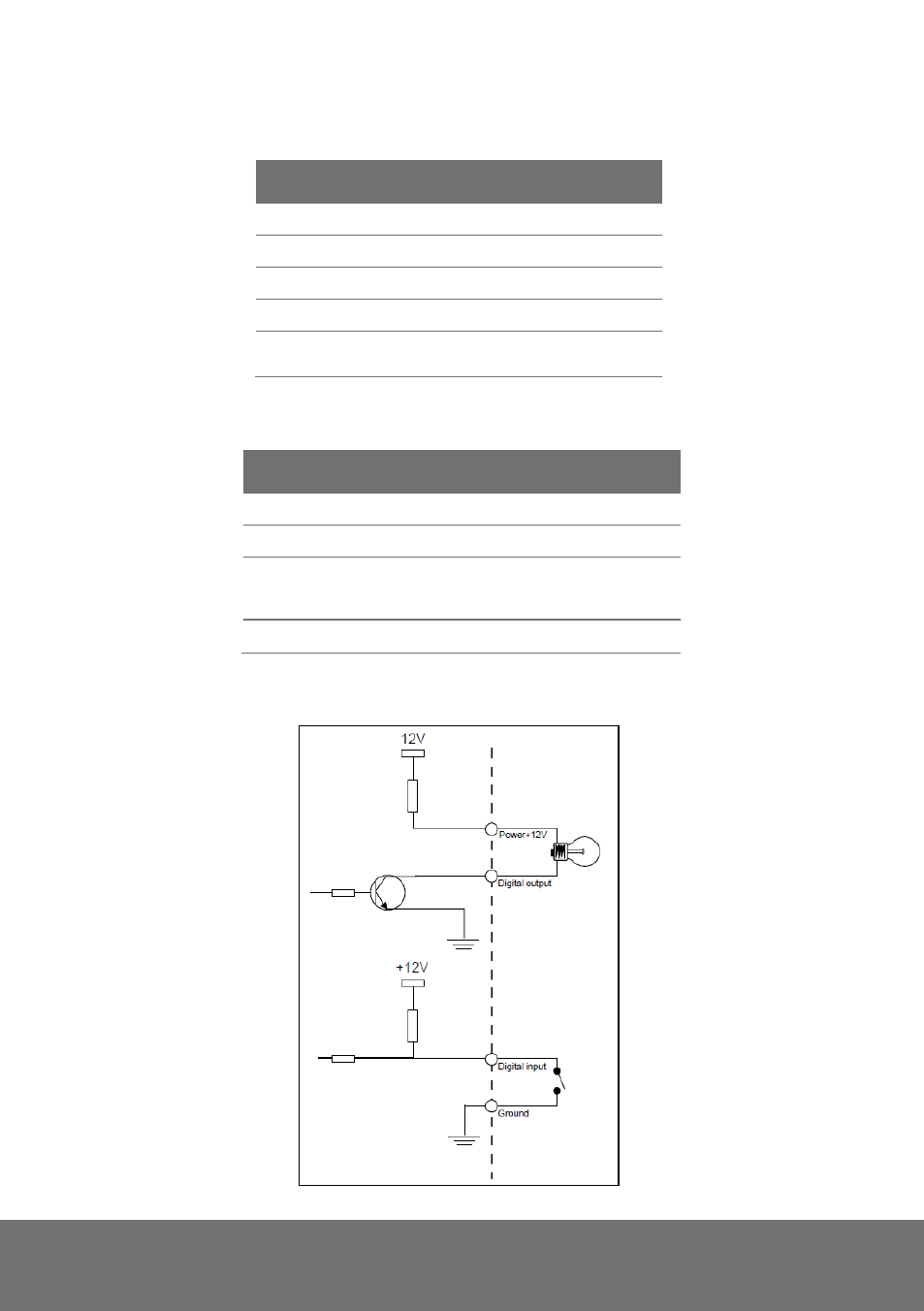

Internal Connection Diagram of DI/DO
