Page 16
13
7. Click
OK to accept the new setting and Cancel to exit without saving the new setting.
8.

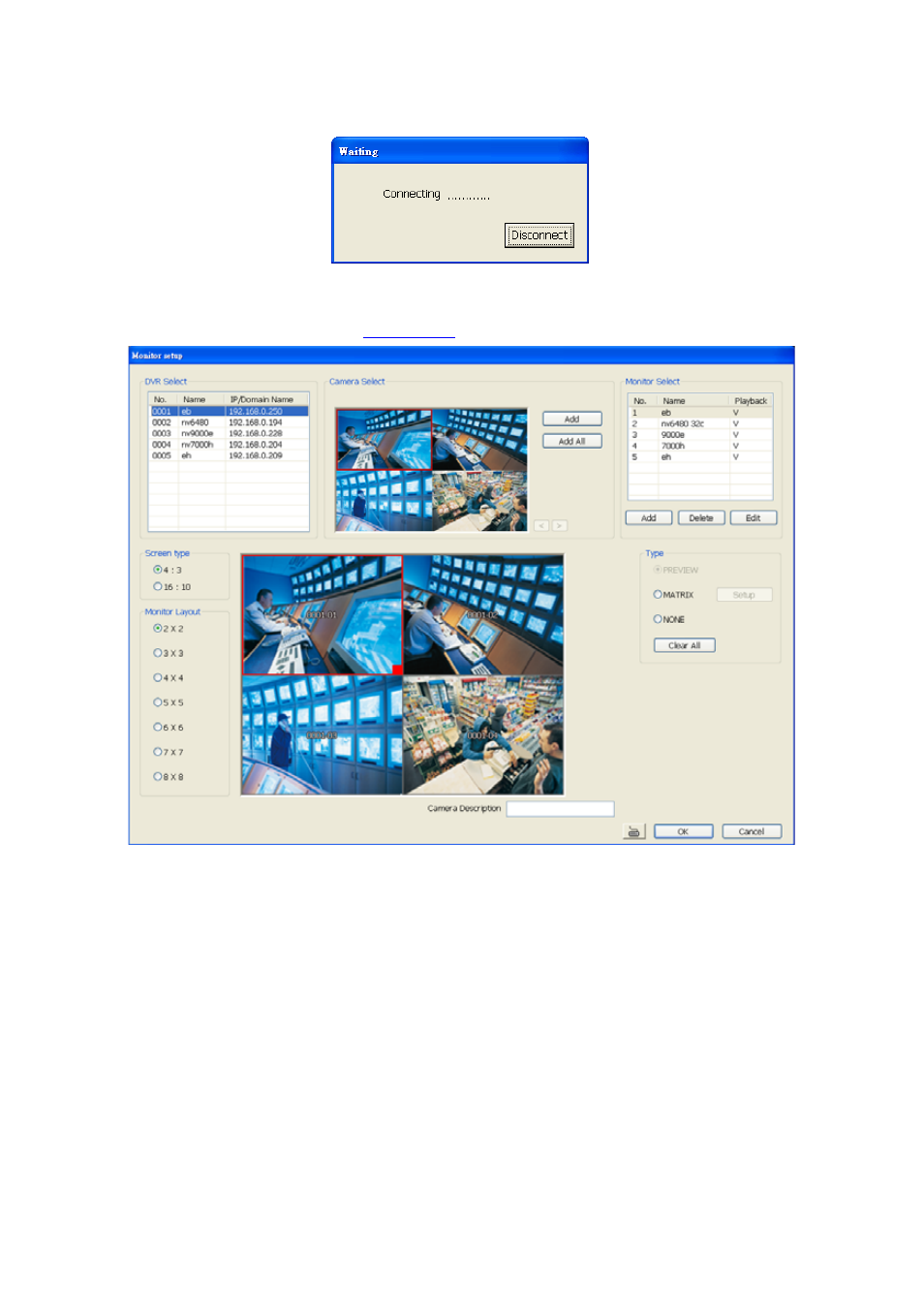

And then, the iMatrix system will try to connect with DVR server. If the connecting time takes too
long, user can click Disconnect button to cancel the connect action.
4.3 Camera
Setup
Select the camera from different DVR servers in order to monitor in one group. The selected cameras
will be played on Monitor screen (see
).
1. Click
Setup.
2.
In the Authorization dialog box, enter the administrator User ID and Password.
3. Click Camera.
4. Click
Add to create a monitor set. The monitor set can be added up to 1000 monitor set. Click
OK to save the setting.
Name: Enter a name for the monitor set (12 characters only).
Playback Setting
- Enable Playback: Enable/disable to allow playback on monitor screen.
- Show POS message: Enable/disable display POS information on monitor screen.
- Start Playback Before: Enter the time (sec.) when start playback will start from the
present time backward the time user has setup.
Preview Setting
- Frame Rate: User can set the camera transmitting Frame Rate for preview, but the
real transmitting frame rate depends on camera setting.
