Touch button control panel – AVer 300AF user manual User Manual
Page 20
14
Name
Button
Function
(18) CAPTURE
Capture a still image. The captured image is
saved in the built-in memory at 1024 x 768
resolution.
(20) MIRROR
Flip the image in Camera mode.
T
T
o
o
u
u
c
c
h
h
B
B
u
u
t
t
t
t
o
o
n
n
C
C
o
o
n
n
t
t
r
r
o
o
l
l
P
P
a
a
n
n
e
e
l
l

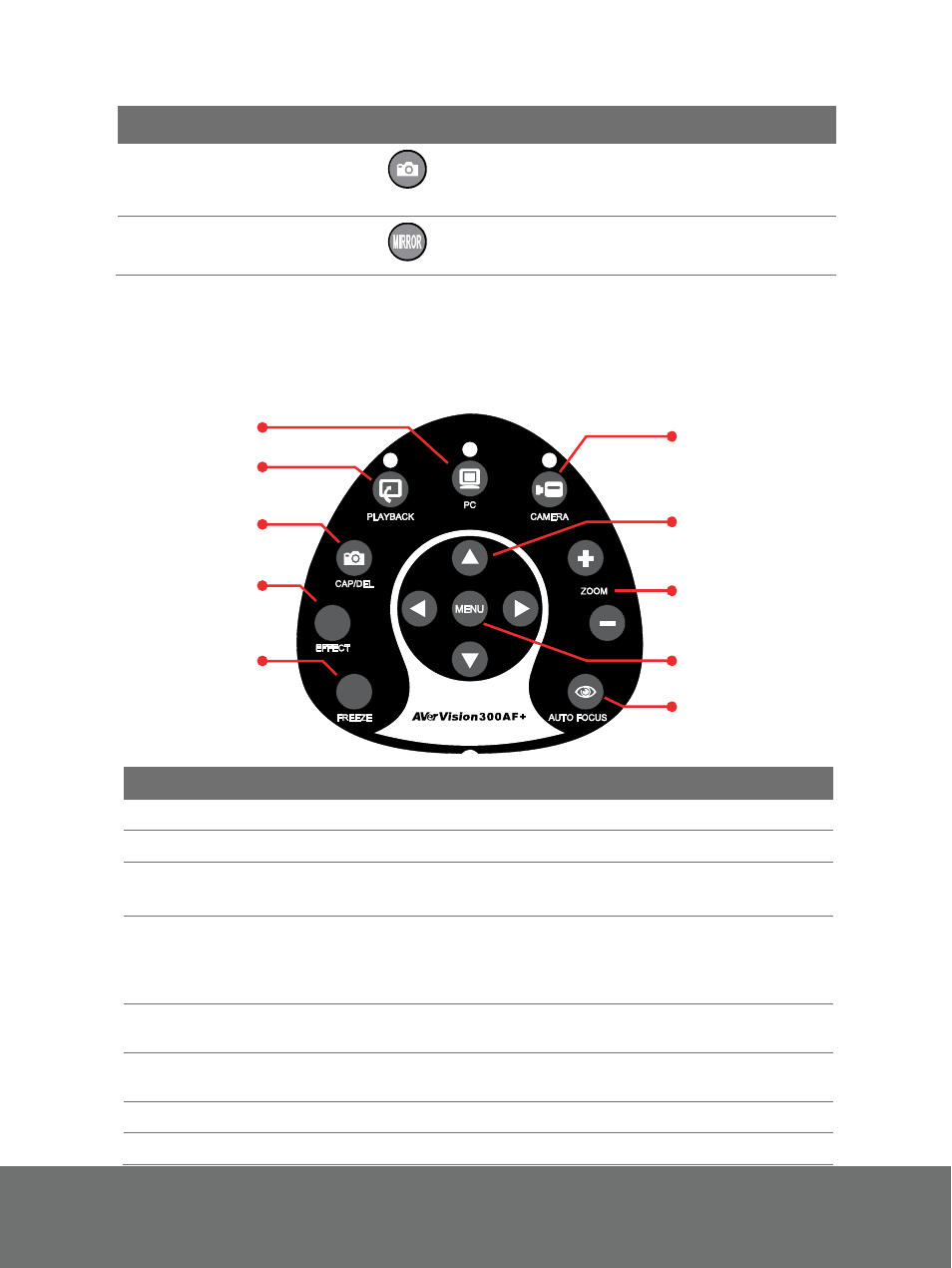

The touch button control panel located on the top side of the AVerVision300AF+ provides
quick access to commonly used functions.
(1)
(10)
(9)
(8)
(7)
(2)
(3)
(4)
(5)
(6)
Function
Description
(1) CAMERA MODE
Display image from the document camera.
(2) PC MODE
Display video signal from the VGA IN port.
(3) PLAYBACK
MODE
Display captured images from the built-in memory in either 16-
thumbnail mode or full screen mode.
(4) CAP/DEL
Capture a still image. The captured image is saved in the built-
in memory at 1024 x 768 resolution. Remove the selected
picture from the built-in memory permanently in Playback
mode.
(5) EFFECT
Change live image in BW, Negative or Color. (camera mode
only)
(6) FREEZE
Toggle to pause or resume the display image. (camera mode
only)
(7) AUTO FOCUS
Adjust the focus automatically.
(8) MENU
Pull up and exit the OSD main-menu and sub-menu.
