ENGLISH
28
Dimension
Operating 471mm x 174mm x 543mm (+/-2mm include rubber foot)
Folded 367mm x 174mm x 63mm (+/-2mm include rubber foot)
Weight 2.1 kg (about 4.629 lbs)
External Storage
Secure Digital (SD) 1 GB ~ 32GB (FAT 32, 16, 12)
USB Flash Drive 2GB ~ 64GB (FAT 32, 16, 12)

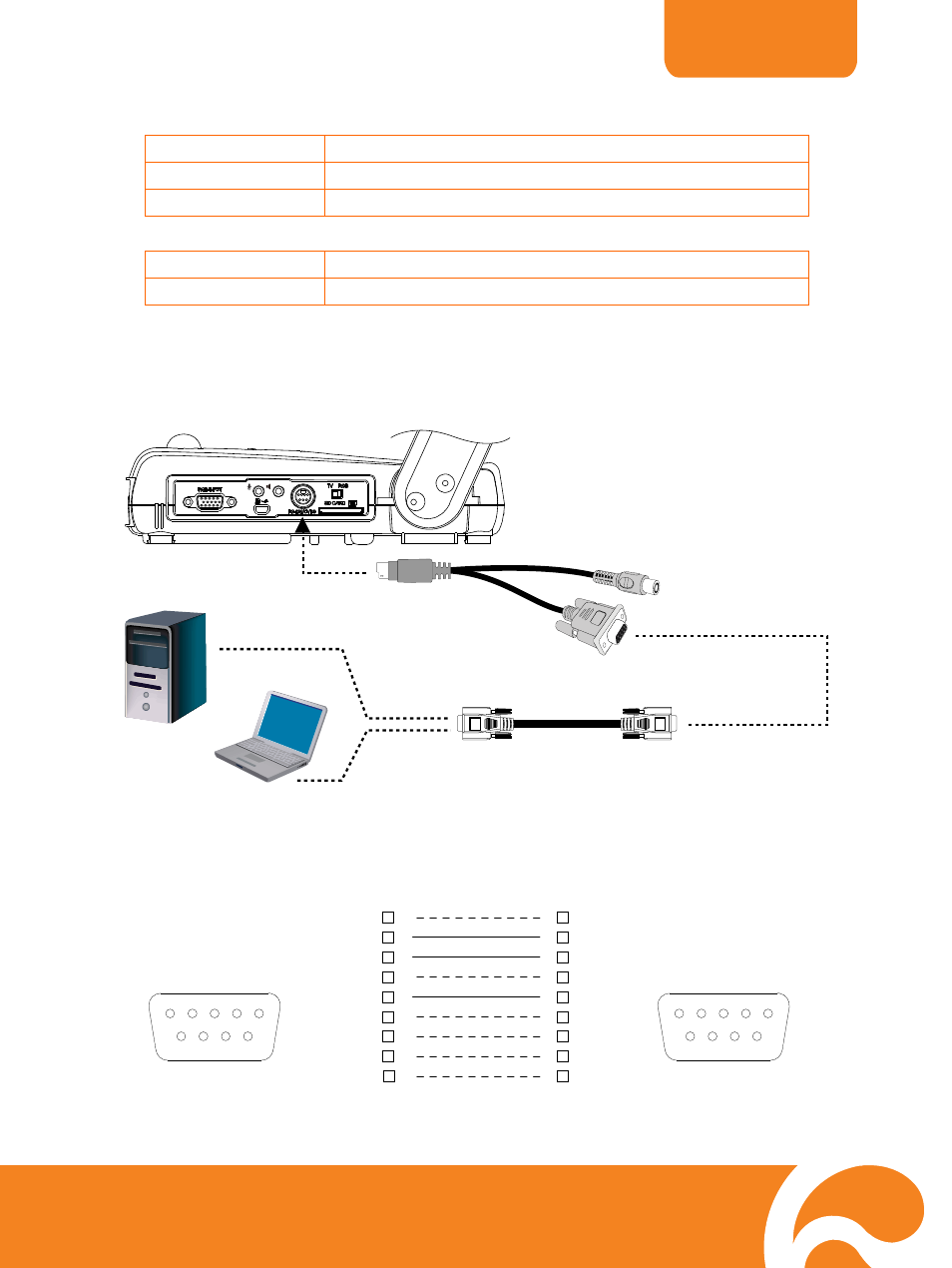

R R S S - - 2 2 3 3 2 2 D D i i a a g g r r a a m m C C o o n n n n e e c c t t i i o o n n
AVerVision M50 can be controlled using a computer or any centralized control panel
through RS-232 connection.
RS-232/CVBS cable
RS-232 cable
(not supplied)
Desktop
Laptop
R R S S - - 2 2 3 3 2 2 C C a a b b l l e e S S p p e e c c i i f f i i c c a a t t i i o o n n s s
Make sure the RS-232 cable matches the cable specification design.
PC COM Port
DSUB-9P (Female)
1 2 3 4 5
6 7 8 9
AVerVision RS-232 Port
DSUB-9P (Female)
1 2 3 4 5
6 7 8 9
1
2
3
4
5
6
7
8
9 1
2
3
4
5
6
7
8
9 CD
RXD
TXD
DTR
SG
DSR
RTS
CTS
RI (CI)
TXD
RXD
SG
