9. With the car on a level surface, so as not to deflect the chassis in any way, attach the fixed end of the cross-
tube to the strut ring with the 3/8" AN bolts supplied (fig 7). Do not tighten this end yet.
10. Now, adjust the crosstube’s length so that the bolt inserts straight through the strut ring and rod end
holes (fig 8).
11. Using a 9/16" wrench, "snug" the jam nut against the crosstube (fig 9). Torque is approx 8 ft lbs.
12. Now, using 9/16" wrenches, tighten both 3/8" AN bolts and nuts that hold the crosstube to the rings. Torque
to 8 ft lbs.
(end)

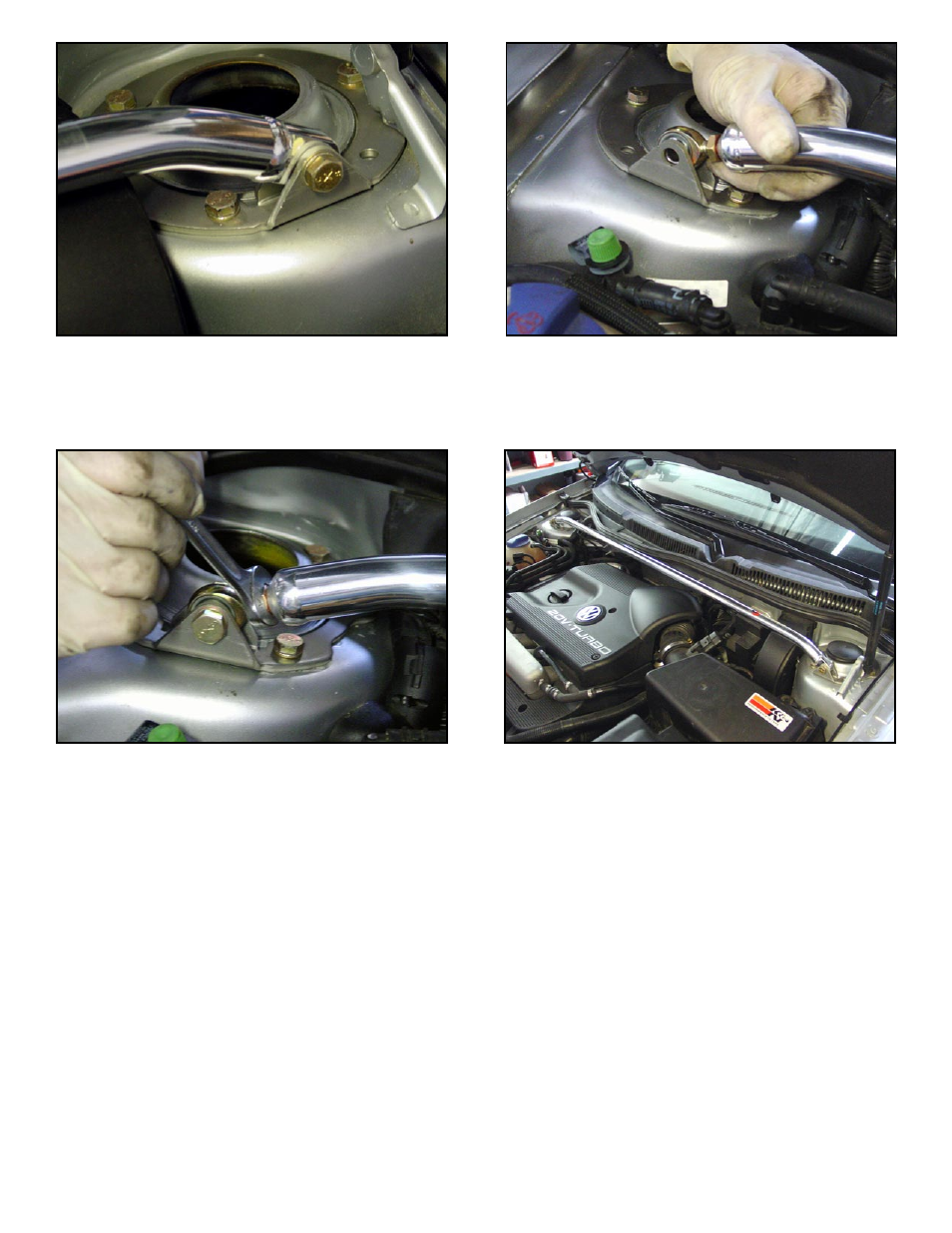

fig 7 fig 8
fig 9
