Autotech 10.297.220K-222K SportTuned Aluminized Exhaust System, Mk3 Golf & Jetta 2.0L User Manual

Page 2

Text mode
Original mode

Phone 949.240.4000 Fax 949.240.0450

32240-E Paseo Adelanto, San Juan Capistrano, CA 92675

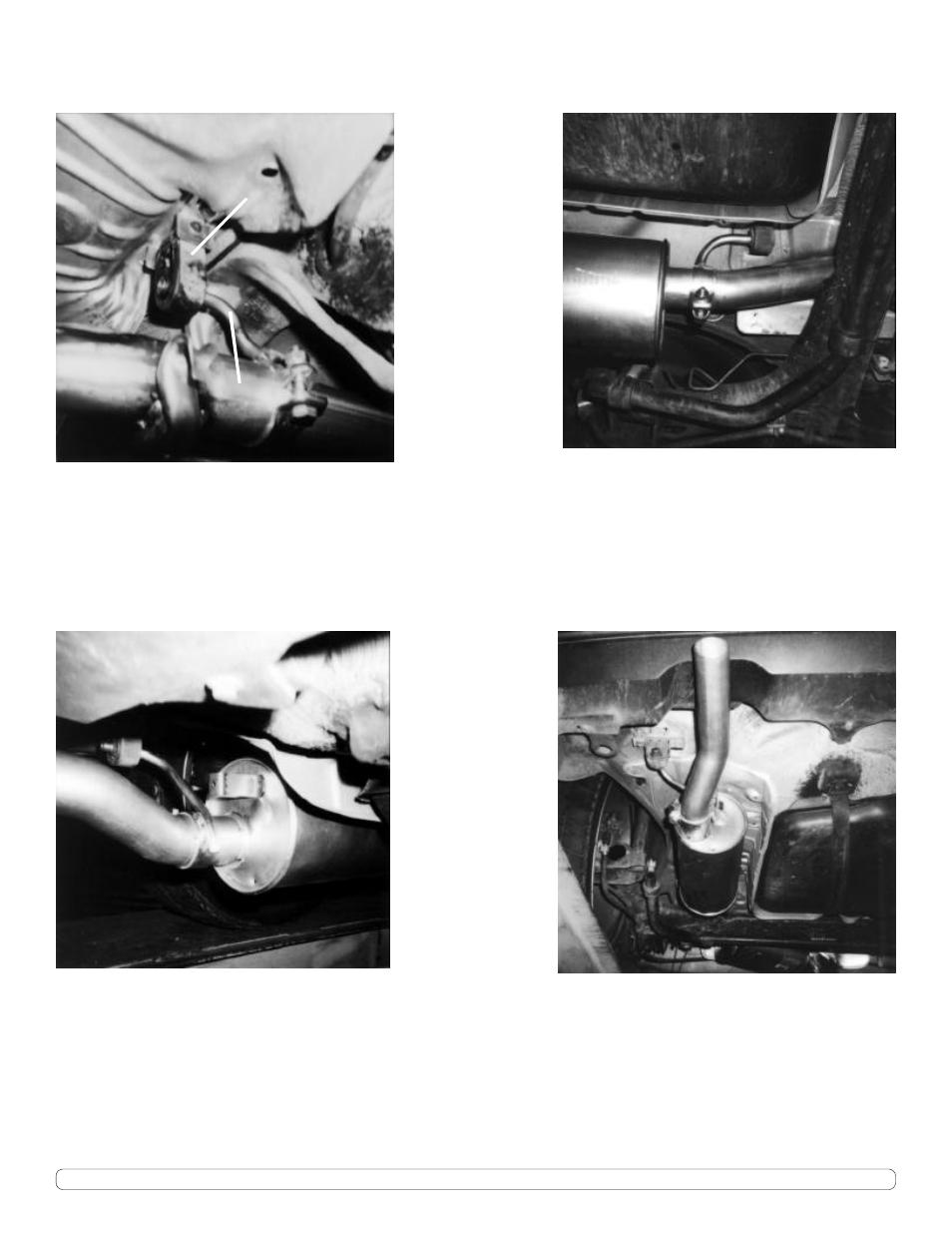

Fig 1. Right side view of midpipe hanger
(a) and clamp installed. The supplied
rubber hanger (b) bolts to the car in
place of the dual hanger assembly
found on 1993-95 vehicles. Hook in fore-
ground is not used on the A3.

Fig 2. Right side view of clamp/hanger

installed at front of rear muffler.

Fig 3. Right side view of clamp/hanger

installed at back of rear muffler.

Fig 4. Rear view of rear muffler and

tailpipe assembly on a Golf 3. Note
the position of the drain hole on
the back plate of the muffler. This
shows the rotation of the rear muf-
fler for best fitment.
