714 accessories installation, 7b 7a 7c – Alumax K-NS91Z User Manual
Page 14
7
14
ACCESSORIES INSTALLATION
INSTALLATION MANUAL
GUIDE D’INSTALLATION INSTALLATION MANUAL

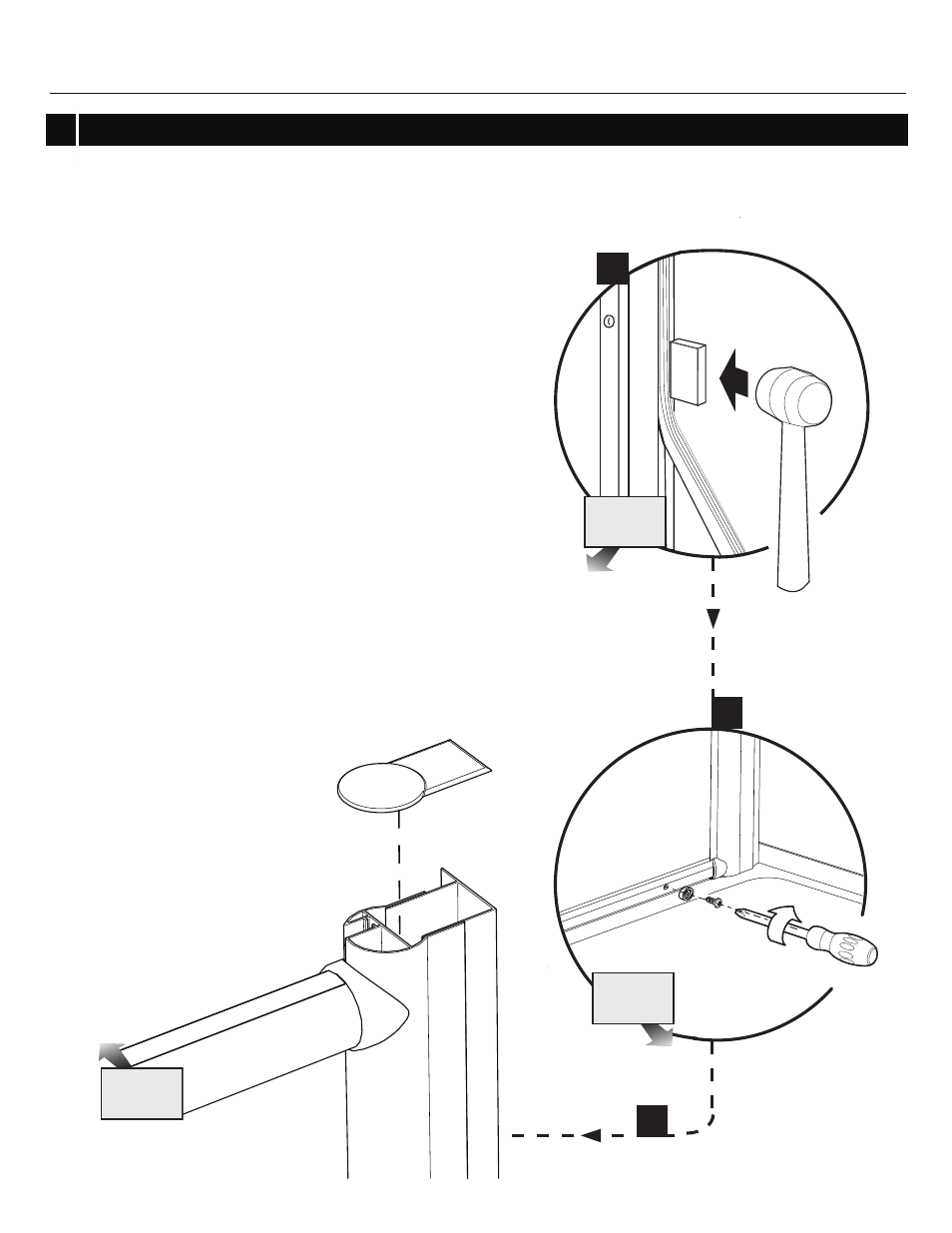

Using a mallet and block install the two vertical
gaskets. One between the expander and fix
panel, the second between the vertical column
and fix panel. The gasket must be installed
inside the tub enclosure.
The bumper is located on the bottom track op-
posite the opening of the door.
Place the expander caps on the expanders.
7a.
7b.
7c.
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
7b
7a
7c
