3c continued 3d – Alumax L-523 User Manual
Page 16
INSTRUCTION MANUAL
3

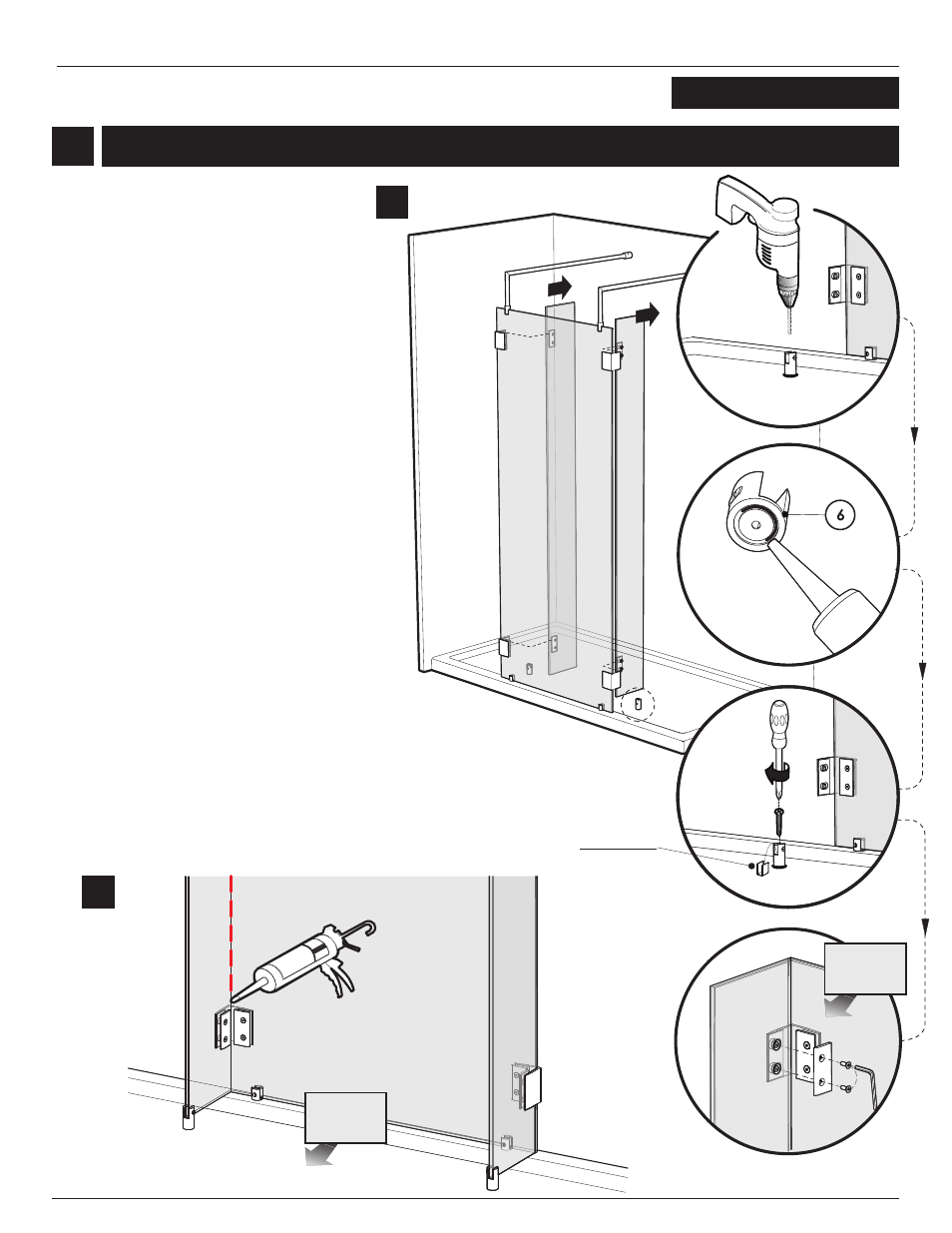

3c.
Install the provided gasket.
3d.
Remove the small fixed panel by
unscrewing the corner clip back plate.
On the marked position drill the base with a
drill bit 1/8”. Put silicone onto the bottom
clip bottom face groove and around the
hole.
Fasten it to the base with screw #6-1”.
Placed inside the shower silicone seal
along the corner between the glass panels
all the way long trough out the corner clips.
3c
CONTINUED
3d
13
6
CLEAR GASKET
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
503X, 513X, 523X, 523TBX
