INSTALLATION MANUAL

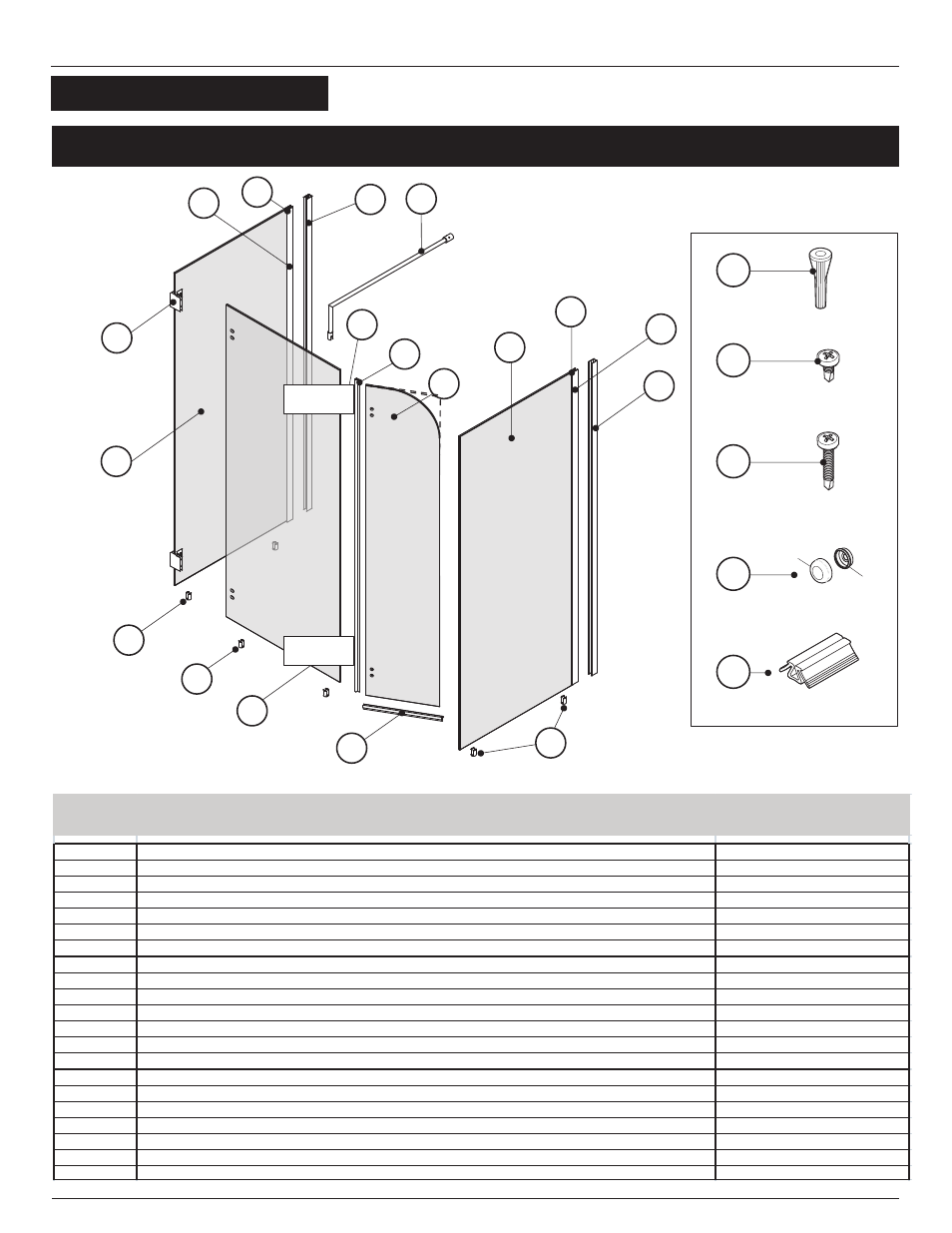

PARTS LISTING
I T E M # P A R T S Q T Y
1 D O O R P A N E L 1
2 W A L L J A M B 1
3 . 1 E X P A N D E R 1
3 . 2 G A S K E T 1
3 . 3 R E T U R N P A N E L 1
4 F I X E D P A N E L 1
5 H I N G E 1
6 C O R N E R C L I P 1
7 S U P P O R T B A R 1
8 B O T T O M G L A S S C L I P 1
9 B O T T O M D O O R G A S K E T 1
1 0 S I D E G A S K E T 1
1 1 . 1 E X P A N D E R 1
1 1 . 2 G A S K E T 1
1 1 . 3 R E T U R N P A N E L 1
1 3 H A R D W A R E 1
1 3 . 1 W A L L P L U G # 6 - 1 8
1 3 . 2 S E L F D R I I L L I N G S C R E W # 8 - 3 / 8 6
1 3 . 3 S E L F D R I L L I N G S C R E W # 8 - 1 1 / 4 6
1 3 . 4 S C R E W C A P # 8 / 8 8
1 3 . 5 S P A C I N G B L O C K 2
HARDWARE
WALL PLUG #6-1
13.1
b
a
SCREW CAP
13.4
SCREW #8-3/8
13.2
SCREW #8-1 1/4
13.3
SPACING BLOCK
13.5
HINGE
HINGE
421X-32, 422X-32
