INSTALLATION MANUAL
1
14
100X, 210X, 210TBX
FIXED PANEL INSTALLATION

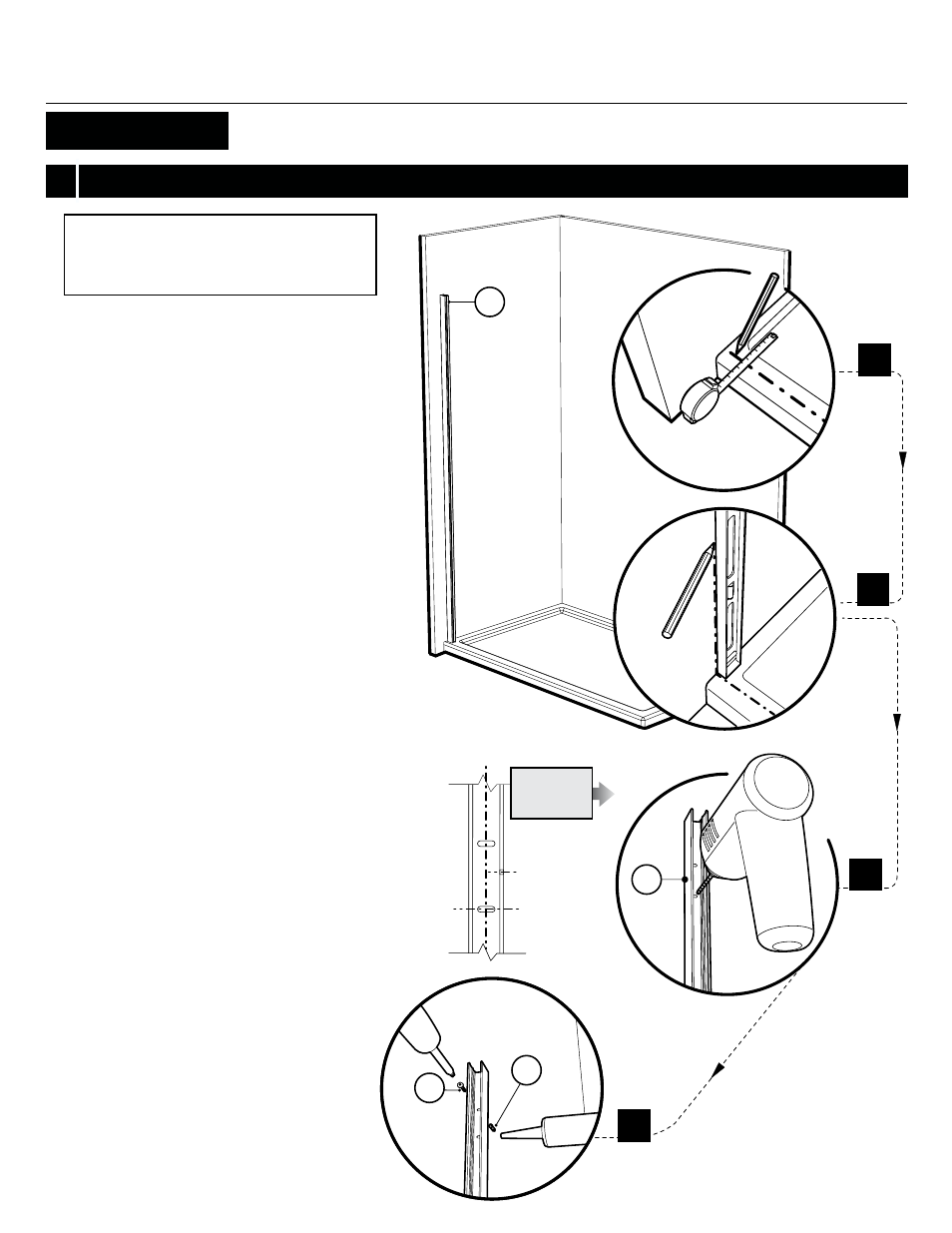

1a. Using a measuring tape, mark the center of the
threshold of the base.
● THIS INSTALLATION PROCEDURE APPLIES
FOR ALL RETURN PANELS INSTALLATION
REGARDLESS OF QUANTITY OR ADDITIONAL
FIXTURE SUCH AS TOWEL BAR.
1b. Using the marking established in the previous step,
run a second line up the wall. Use a level to ensure
verticality of this line.
1c. Place the wall jamb (2) onto the wall while ensur-
ing that the wall jamb slotted holes are centered to
the center line. Moreover, the side holes of the wall
jamb should face the interior of the shower.
Proceed to drilling, using a Ø1/8˝ drill bit, through the
wall using the wall jamb slotted holes as reference.
1d. Insert a drop of silicone into each hole made in the
previous step. Insert a wall plug (7.1) into each hole
and from there the wall jamb can be repositioned
and permanently fastened using #8-1 1/4 (7.3).
1a
1b
1d
1c
7.3
7.1
2
INTERIOR
SHOWER SIDE
2
