12
INSTRUCTION MANUAL

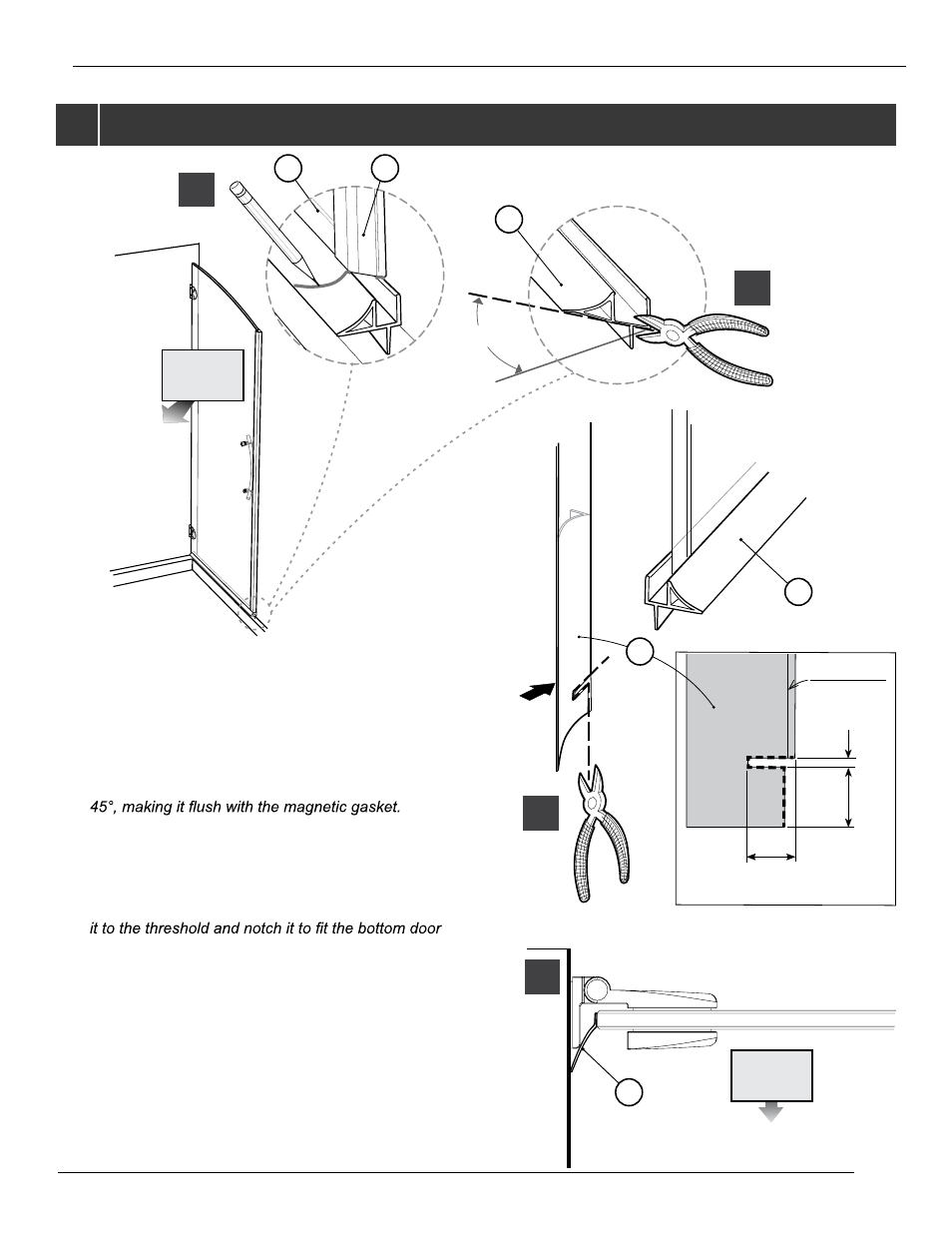

INSTALL THE DOOR GASKETS.
8
8A. Align the bottom door gasket (#8) to the wall and project
on it the 45° magnetic gasket (#3) surface.
8C. Open the door and clean the door panel surface on
which the door side gasket (#6) will be placed. Align
gasket. Make sure it is oriented as illustrated.
8B. Using the cutting plier, trim the bottom door gasket at
45º
4
8
3
INTERIOR
SHOWER SIDE
8D. Stick the door side gasket (#6) on the door panel.
8
± 1/8"
RIGID PART
SUGGESTED TRIMMING
± 5/8"
± 1/2"
6
8A
8B
8C
8D
INTERIOR
SHOWER SIDE
6
