Insert the magnetic expander – Alumax M-90X User Manual
Page 11

11
INSTRUCTION MANUAL

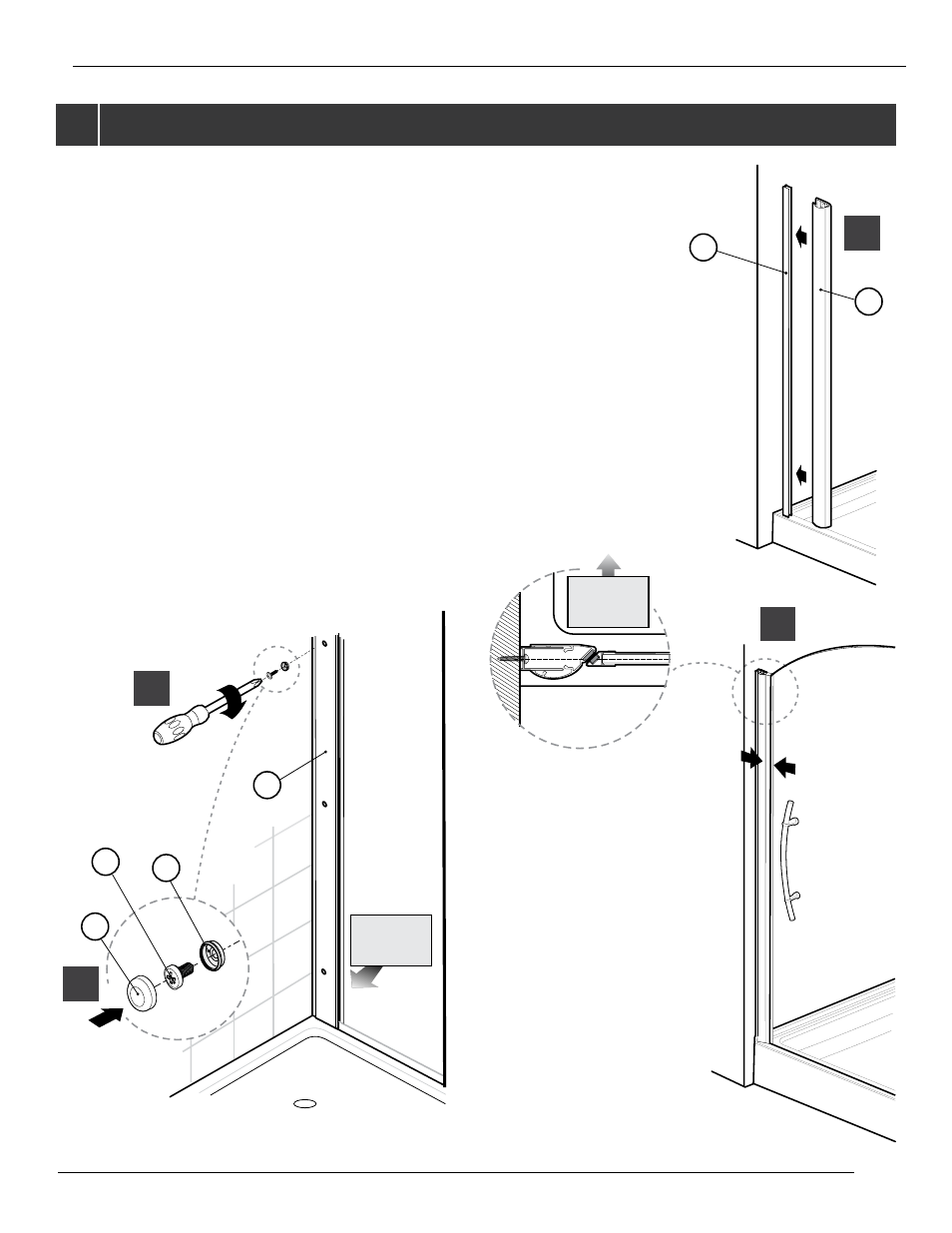

INSERT THE MAGNETIC EXPANDER
7
7A. Insert magnetic expander (#2) into the wall jamb (#1)
7C.
Combine the 3 3/8˝ screws (#13) with the inner screw caps
(#12b). Fasten the magnetic expander.
7D. Snap the screw caps (#12a) on the screws.
2
1
7A
7B.
Adjust and level the door panel. The magnetic gaskets must
be alligned and in contact.
7B
13
12a
12b
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
7D
7C
2
