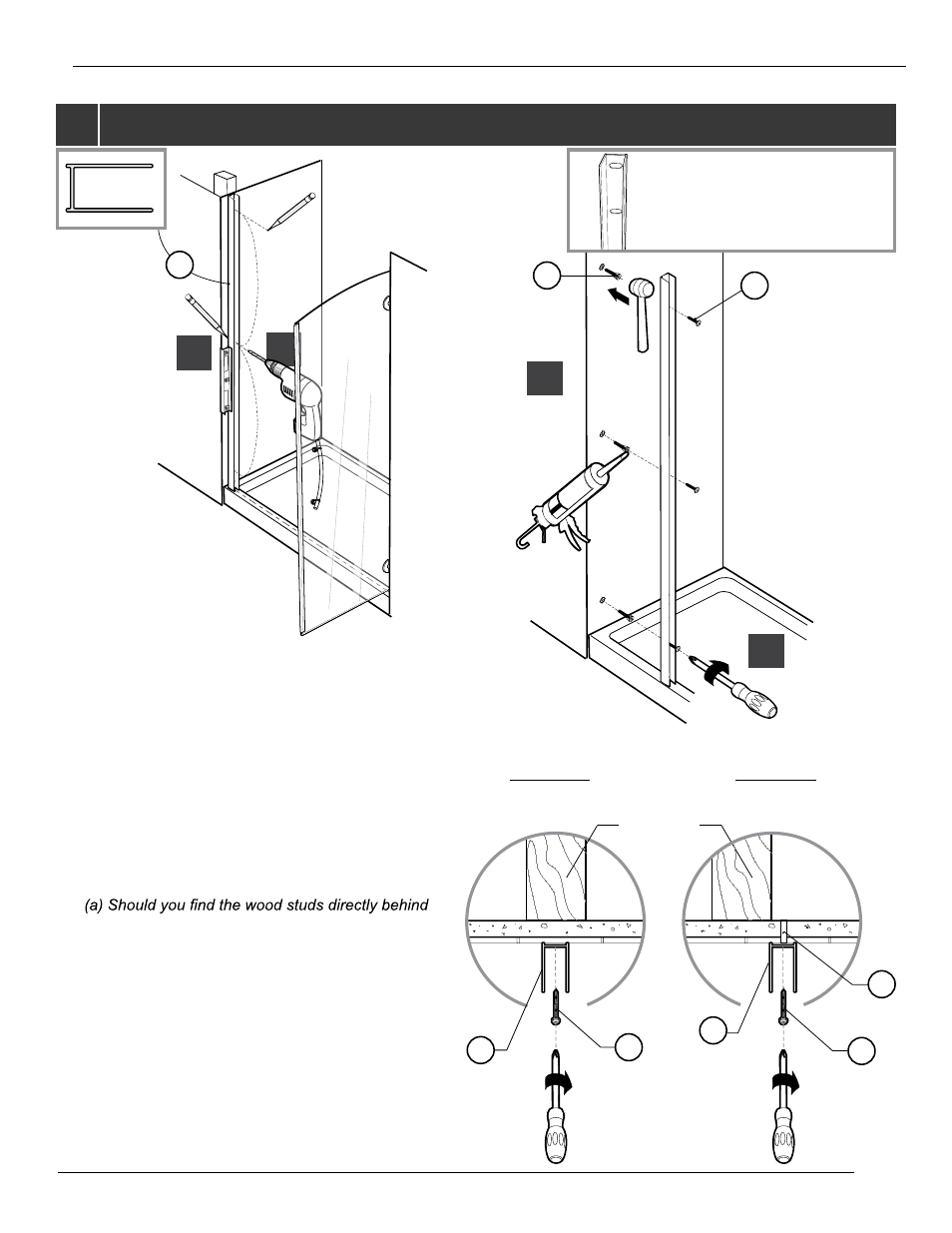

MOUNT THE WALL JAMB.
6
6A. Place the wall jamb (#1) on the center of the
threshold and align it using a level. Trace the outer
edge of the wall jamb and the holes onto the wall.
Remove the wall jamb.
6B. With a 1/4˝ drill bit, drill 3 holes into the wall using
the marks as a guide.
6C.
the drilled hole location, skip this step.
(b) Insert the wall plugs (#11) and put in each a drop
of silicone.
6D. Secure the wall jamb using the 1 1/4˝ screws (#14).
WALL STUD
TOP VIEW TOP VIEW
1 14
11
1
14
6A
1
6C(a) 6C(b)
11
14
6C
NOTE
CHOOSE 1 OF THE 2 HOLES AT THE TOP
AND BOTTOM OF THE WALL JAMB.
