Alumax P-DR2W-72-CW - Manual (Page 19)

19
15
16 SILICONE
4
DOOR CLOSED
1
MAX
1/2” (6.35 mm)
21
APPROX.
3” (76.2 mm)
21
8
9
DOOR OPEN
20

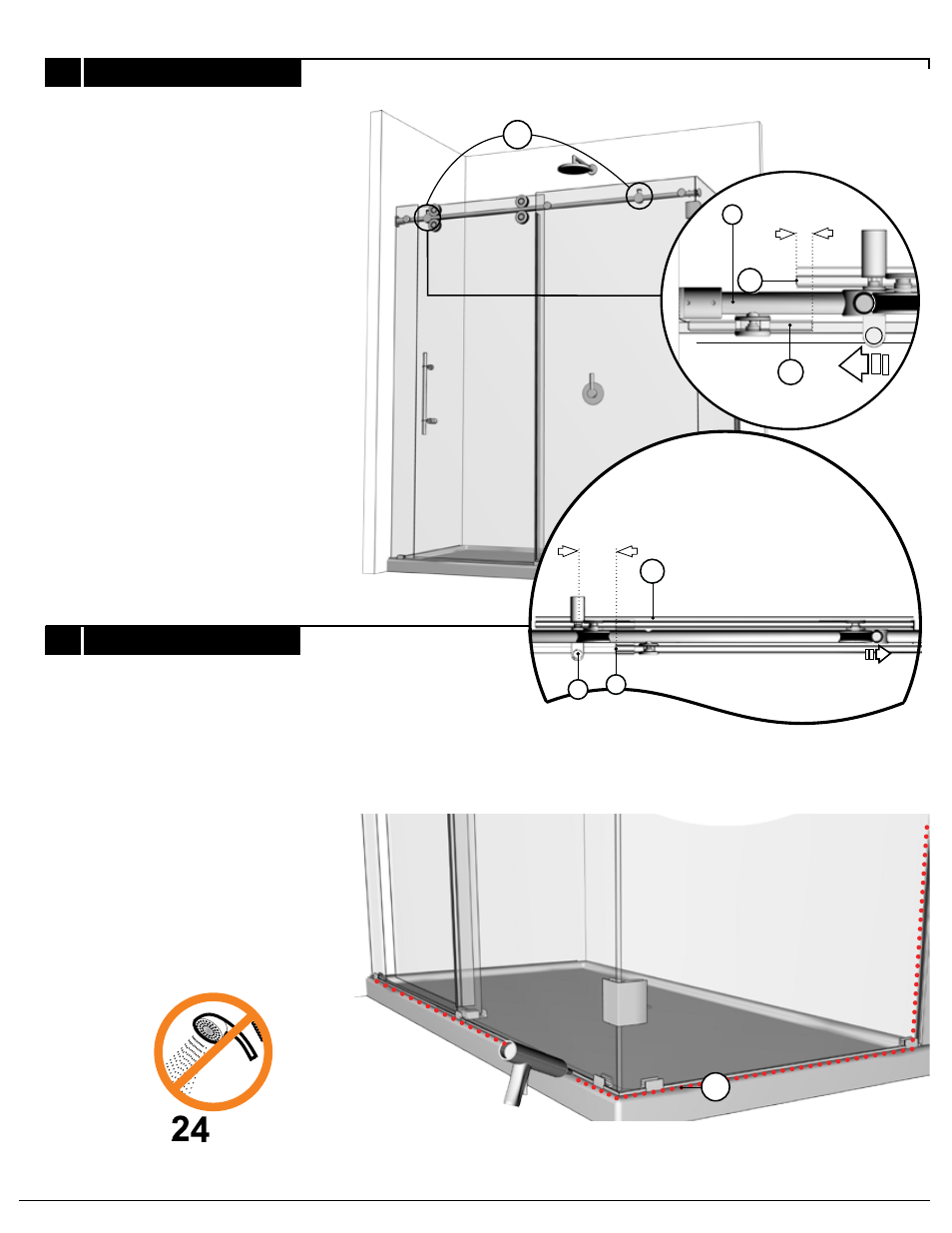

Apply silicone (S) between the bottom
of the fixed panel and the threshold of
the base. Silicone application along the
length of the threshold and the outside of
the wall jamb (16) is also suggested. In
both cases, it is done from the outside of
the shower area.
HOURS
STOPPERS
Adjust the position of the stoppers (4) so
as to ensure a maximum opening and
closing range.
S
