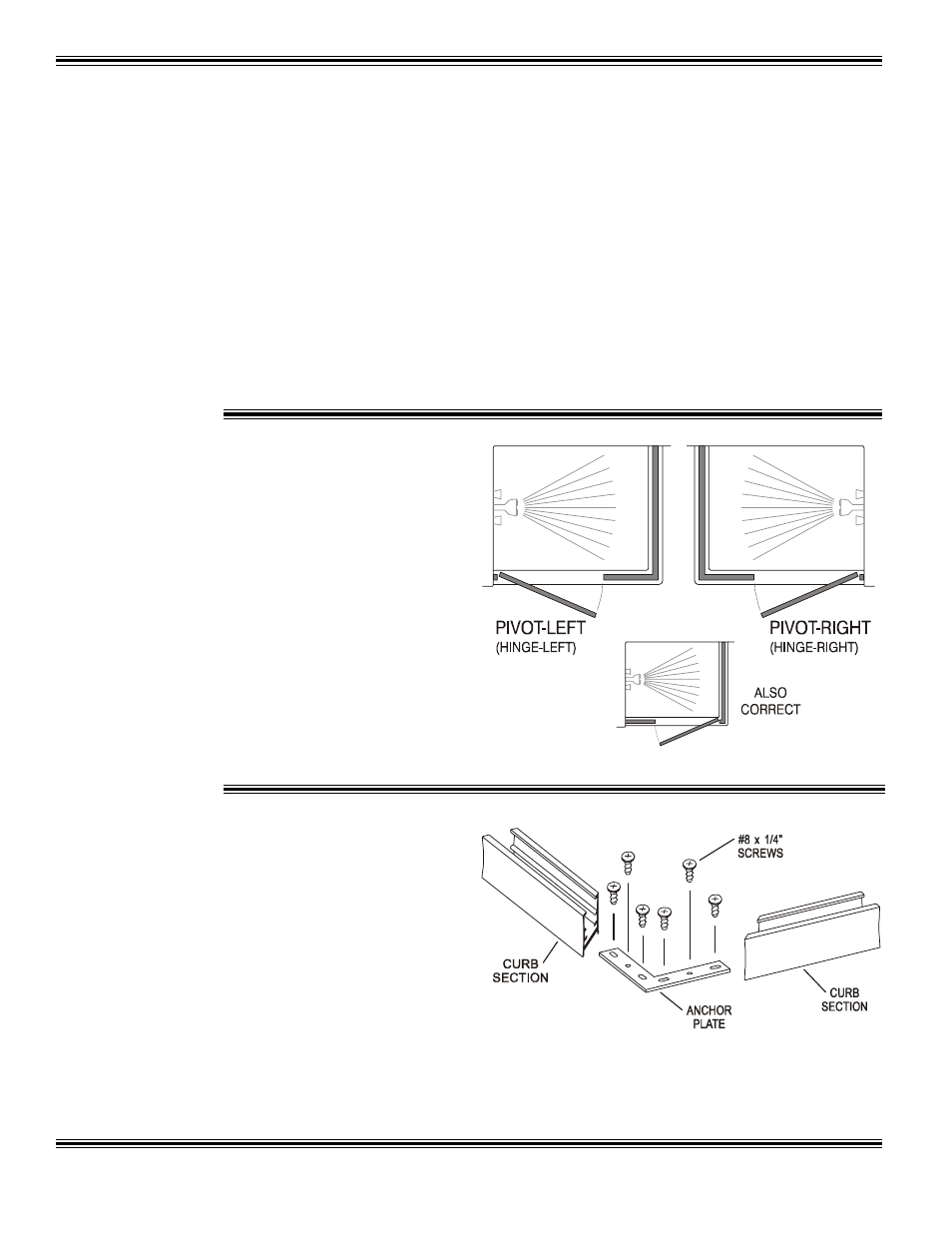

1 - ALL DOORS
The A LUMAX 793 S TIK S TALL Shower Enclosure
is completely reversible and may be installed
pivot-left or pivot-right (hinge-left or hinge-right).
The door may pivot from the wall or from the
center post. Using the diagram, determine the
correct position for the door in your particular
S
TIK S T A L L installation. This instruction sheet
depicts a pivot-right (hinge-right) installation.
NOTE: Fixed glass panel size should be determined
by formulas shown on A
LUMAX detail sheets.
CAUTION: For safety reasons, the door panel
must always open outward.
The A
LUMAX
S
TIK
S
TALL
framework has been designed to work with a variety
of different door types. To ensure correct installation, this 793 Instruction Sheet
is designed to be used by itself with a 790 Framed Pivot Door or with an instruction
supplement packed with a 390 Frameless Pivot Door, a 790i Intre-Hinge Door or
a 1090 Heavy Frameless Pivot Door.
Each step in this primary instruction sheet will indicate whether it applies to
all door types or if a supplement should be used. If your door panel kit does not
have an instruction supplement, then contact your dealer for the proper instructions.
790 door panel kits are covered in this instruction, therefore will not come with a
separate instruction supplement.
2 - ALL DOORS
Assemble the two curb sections [A] (with
weep slots) by sliding a 90° anchor plate [B] into
the mitered ends and forcing the sections together.
The weep slots in the curb must be to the inside.
Using the slotted holes in the anchor plate as a
guide, drill matching 1/8" holes into the curbs.
Secure the anchor plate to the curb with four #8 x
1/4" truss head screws [C]. As you tighten the
screws, be sure the mitered ends are forced tightly
together. To increase the rigidity of the mitered
joint, drill and install two more screws through
the round holes in the bracket.
Assemble the two header sections [D] in the same
manner and set the assembly aside.
