Page 3 of 11 G03711075
7-9-07
A
.
2 Curb Sections (with weep slots)
B
.
2 90
°
Anchor Plates
C
.
26 #8 x 1/4" Truss Head Screws
D
.
2 Header Sections
E
.
2 Wall Jambs
F.
6 Plastic Wall Anchors
G
.
6 #8 x 1 1/2" Truss Head Screws
H
.
4 Plastic Setting Blocks
J.
2 Fixed Glass Panels
K
.
1 90
°
Post
L.
1 180
°
Post
M
.
2 Clear Vinyl Jamb Seal
N
.
1 Glazed Door Panel
P
.
1 Pivot Jamb
R
.
1 Strike Jamb (Magnetic)
S
.
2 Snap-in Fillers
T.
1 Drip Rail
U
.
2 Drip Plugs
V
.
1 Tapered Drip Vinyl
W. 1 Roll Double Stick Tape
X
.
2 #10 x 7/16" Sq. Head Set Screws
A
A
.
1 Nylon Spacer
B
B
.
2 Nylon Pivot Bushings
C
C
.
1 Security Washer
D
D
.
1 Interior Door Handle
E
E
.
1 Exterior Door Handle
F
F
.
2 #6 x 1 1/4" Round Head Screws
G
G
.
8 Pcs. Vert. Glazing Vinyl (72")
H
H
.
8 Pcs. Horiz. Glazing Vinyl (48")

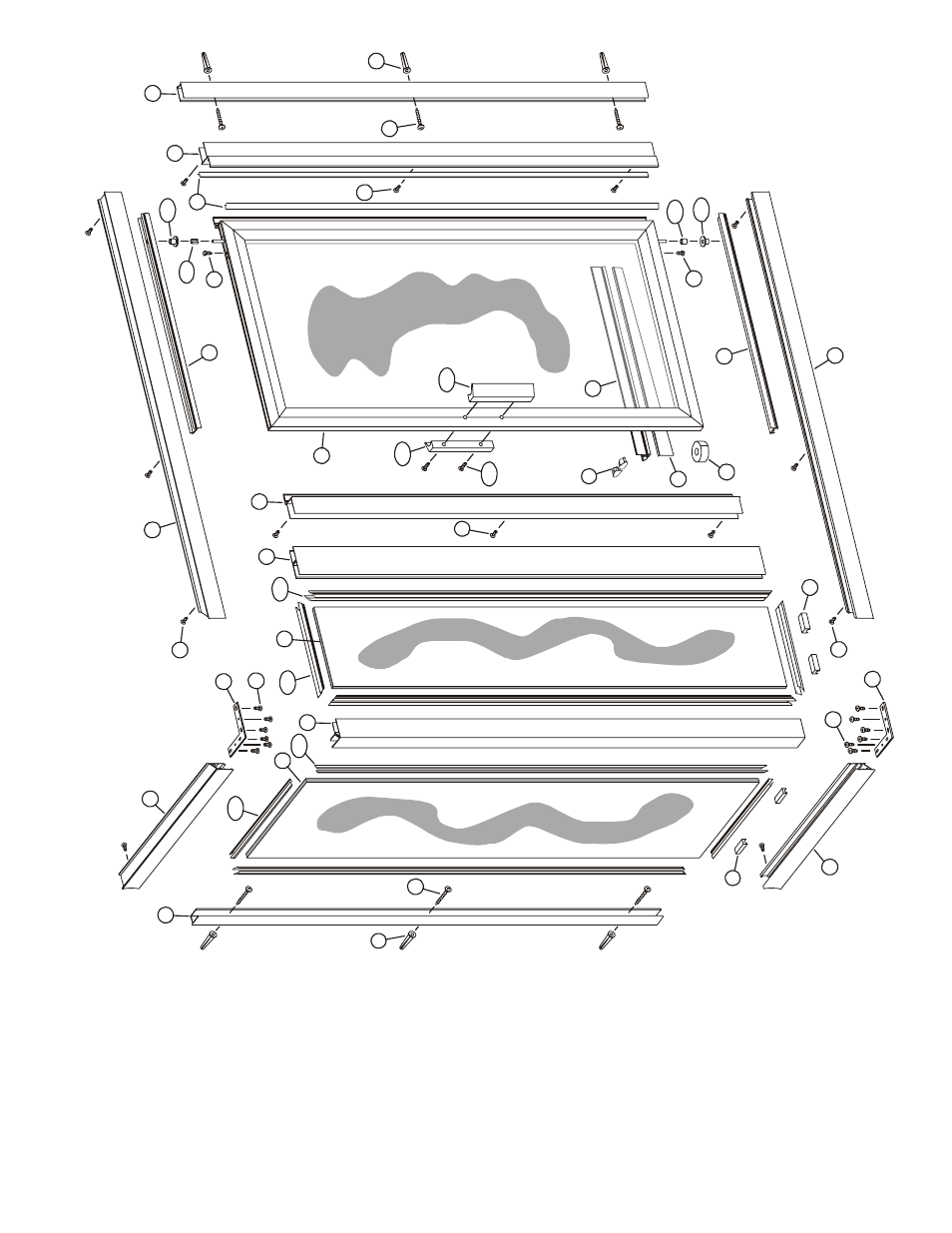

793 STIKSTALL
PARTS LIST
B
C
B C
A S
D
N
M
U
T
V
W
C
H
C
X X
CC
AA BB BB
F
G
C
C
G
F
D
E
J
J
GG
K
L
R
P
E
DD
EE
HH
HH
GG
FF
H
A
S
