Alumax 694 - Manual (Page 4)

EPH-N00-06064
3-8-04
Page 4 of 6

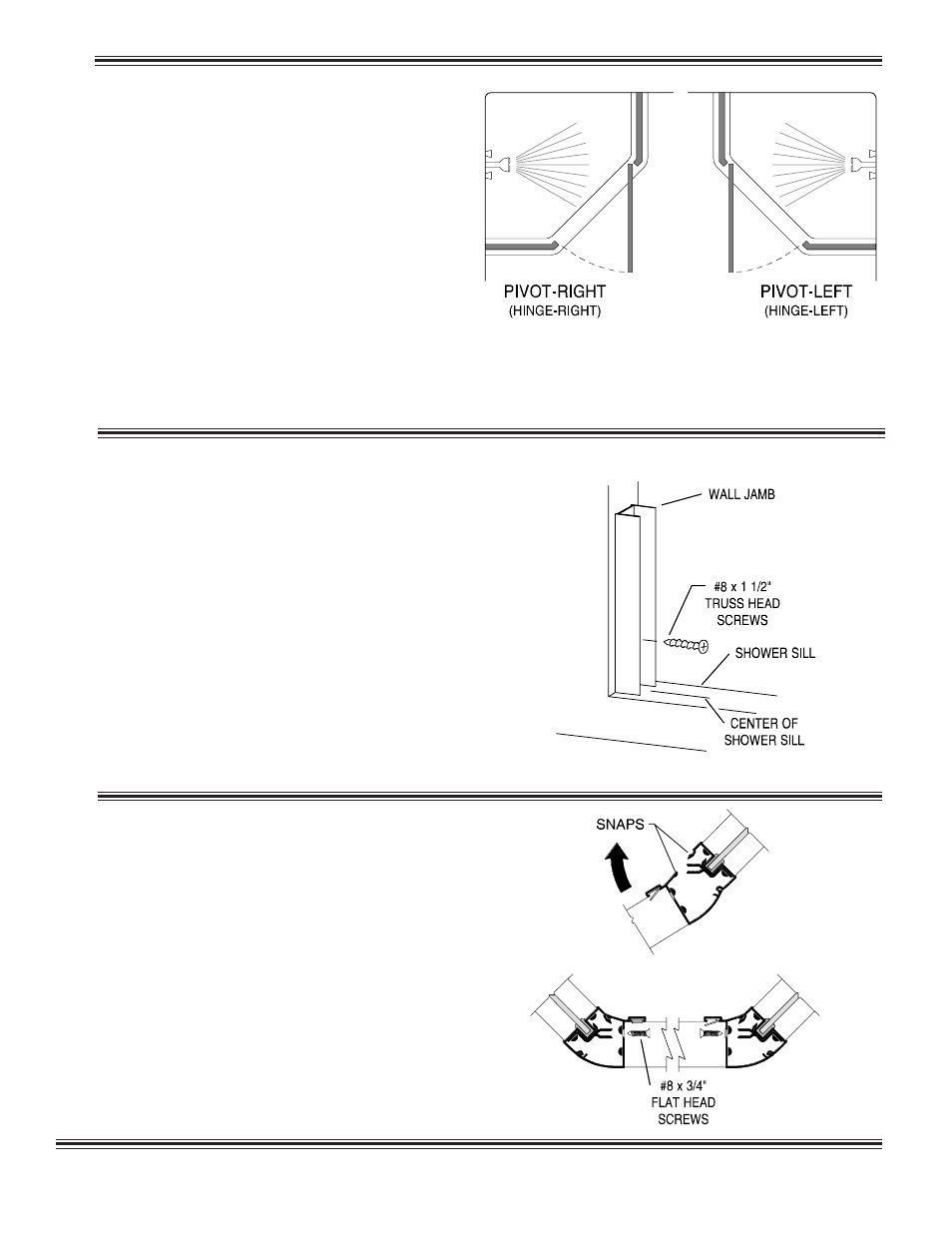

1
The A
LUMAX
694 Shower Enclosure is completely
reversible and may be installed pivot-left or pivot-right
(hinge-left or hinge-right). For maximum waterproofing,
the pivot jamb should be opposite the shower head. Using
the diagram, determine the correct position for the door
in your particular installation. This instruction sheet
depicts a pivot-right installation.
CAUTION: For safety reasons, the door panel must
always open outward.
2
Locate and mark the center of the shower sill. Place
the wall jambs [A] against the wall centered on the sill.
Using a level, plumb the jambs and mark the hole locations
on the wall. Masking tape may be used to temporarily
secure the wall jamb while marking holes.
Remove the wall jambs and drill three (3) holes
through each wall at previously marked hole locations.
For units with stud reinforcments, you should drill 1/8"
diameter holes. For units with no reinforcments, drill the
holes 3/16" diameter and insert the plastic wall anchors
[G].
Replace the wall jambs and fasten with six (6) #8 x
1 1/2" truss head screws [F].
3
Slide the side panels [B] over the respective wall
jamb but do not secure them. Position the pivot side of
the door frame [C] to the side panel. Rotate the door
frame until the snaps fasten. Snap the strike side of the
door frame to the other side panel making sure the pivot
side remains snapped. Secure the door frame to the side
panels by installing six (6) #8 x 3/4" [J] flat head screws
through predrilled holes and into the side panel.
