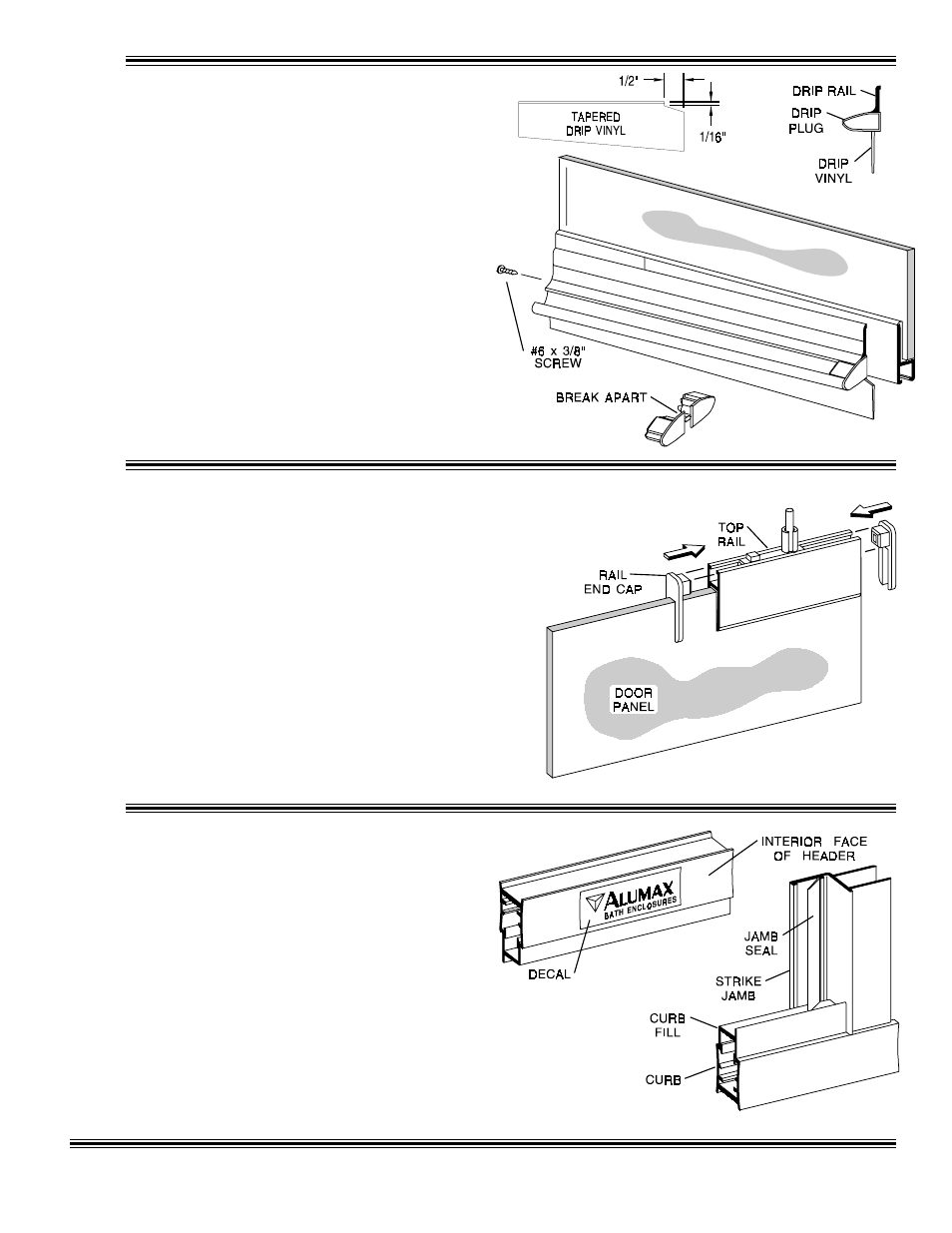

Adjust the drip vinyl [U] by sliding it left or
right until it just touches the curb. Trim the vinyl
(flush with the pivot end and notch 1/2" longer
than the drip rail as shown on the strike end).
Secure it with one #6 x 3/8" truss head screw [EE]
in the pivot end of the drip rail [S].
The drip plug [DD] is supplied with a left and
right hand plug together. Break the right and left
drip plug apart and insert the appropriate plug
into the high (strike) side of the drip rail. Discard
the unused drip plug. Peel off the tape backing and
carefully press the drip rail to the door in the marked
position.
Peel off the backing on the A LUMAX decal
[GG] and apply to the inside surface of the header.
Trim the flap on the clear vinyl strike jamb seal to
clear the bottom door rail.
17
Press the four rail end caps [FF] into the
ends of the top and bottom door rails.
