11

XMD1/XMD2

To protect the system, this unit has been equipped with self diagnostic functions. If a fault arises, a warning is issued by various error
displays. Follow the corrective measures and remove the fault.

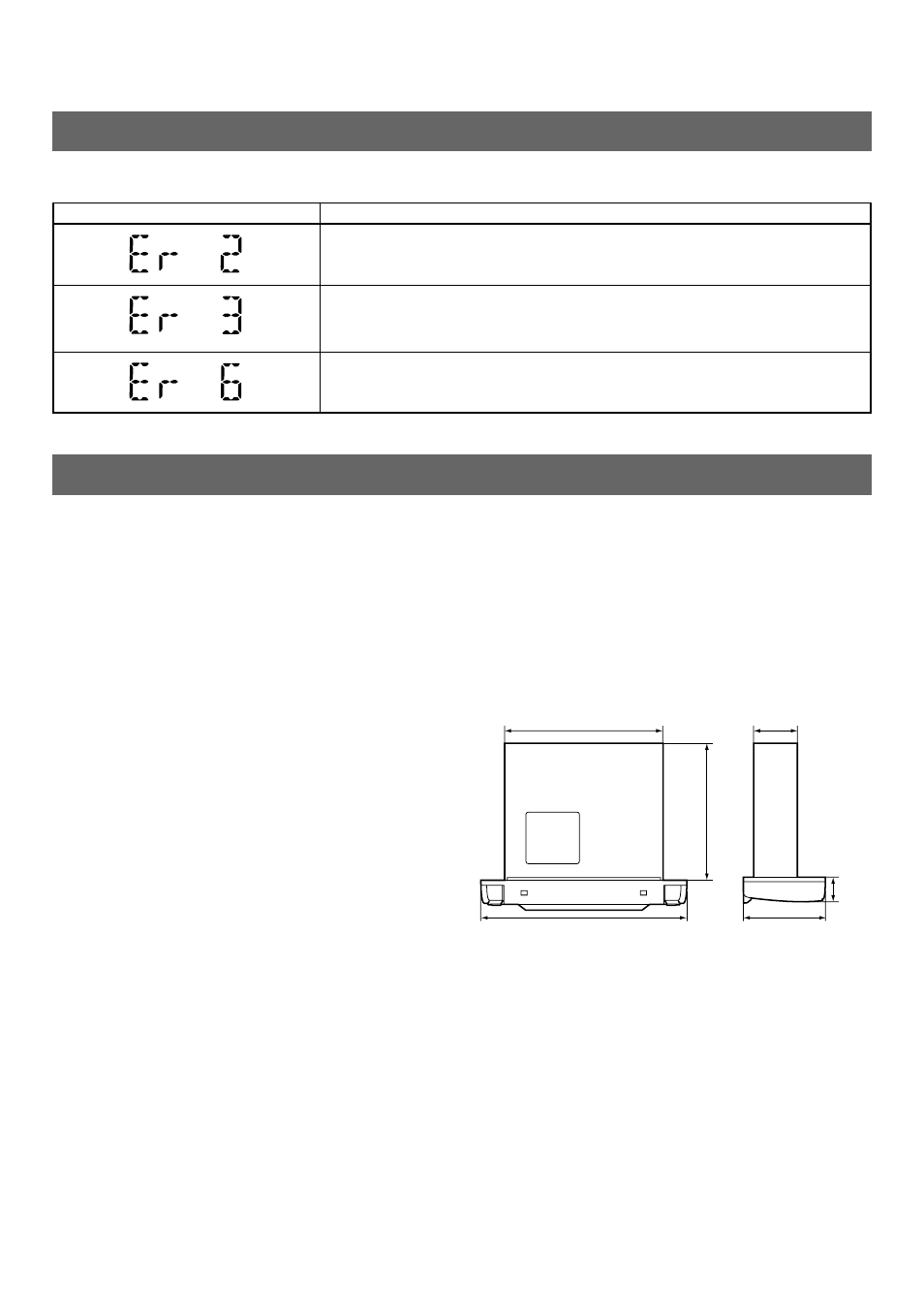

9.ERROR DISPLAYS

Error Display

Corrective Measure

This error display indicates that a fault has arisen in the mechanism of the source unit or CD
changer (for example, the disc cannot be changed or ejected).

Check the source unit and CD changer.

This error display indicates that the pickup focus is off because of a scratched disc or some
other factor during source unit or CD changer play.

Check the compact disc.

This indicates that the CD’s TOC (table of contents) cannot be read, for example because the
selected disc is upside-down.

FM Tuner

Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (

±

3 dB): 30 Hz to 15 kHz

AM Tuner

Frequency Range: 530 kHz to 1,710 kHz
Usable Sensitivity: 25

µ

V

CD Player

System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response: 10 Hz to 20 kHz (

±

1 dB)

Signal-to-Noise Ratio: 100 dB (1 kHz) IHF-A
Dynamic Range: 95 dB (1 kHz)
Harmonic Distortion: 0.01% (1kHz)

Audio

Maximum Power Output:
180 W (45 W

×

4 ch)

Continuous Average Power Output:
16 W

×

4, into 4

, 20 Hz to 20 kHz,1%THD

Bass Control Action (30 Hz):

±

13 dB

Treble Control Action (10 kHz):

±

10 dB

Line Output (CD 1 kHz, 10 k

): 1.8 V

10. SPECIFICATIONS

General

Power Supply Voltage: 14.4 V DC (10.8 V to 15.6 V allowable), nega-
tive ground
Current Consumption: Less than 15 A
Speaker Impedance: 4

(4

to 8

allowable)

Weight: 5.5 lb. (2.5 kg)
Dimensions:
7" (178 mm) Width

×

2" (50 mm) Height

×

6" (152 mm) Depth

Escutcheon section
9" (232 mm) Width

×

4" (94 mm) Height

×

1-1/2" (27 mm) Thick-

ness

Notes:
• Specifications comply with EIA Standards.
• Specifications and design are subject to change without notice for

further improvement.

7" (178mm)

9" (232mm)

4" (94mm)

1-1/2" (27mm)

6" (152mm)

2" (50mm)
