Upper Handle
HOW TO SET-UP YOUR AIR SWEEPER

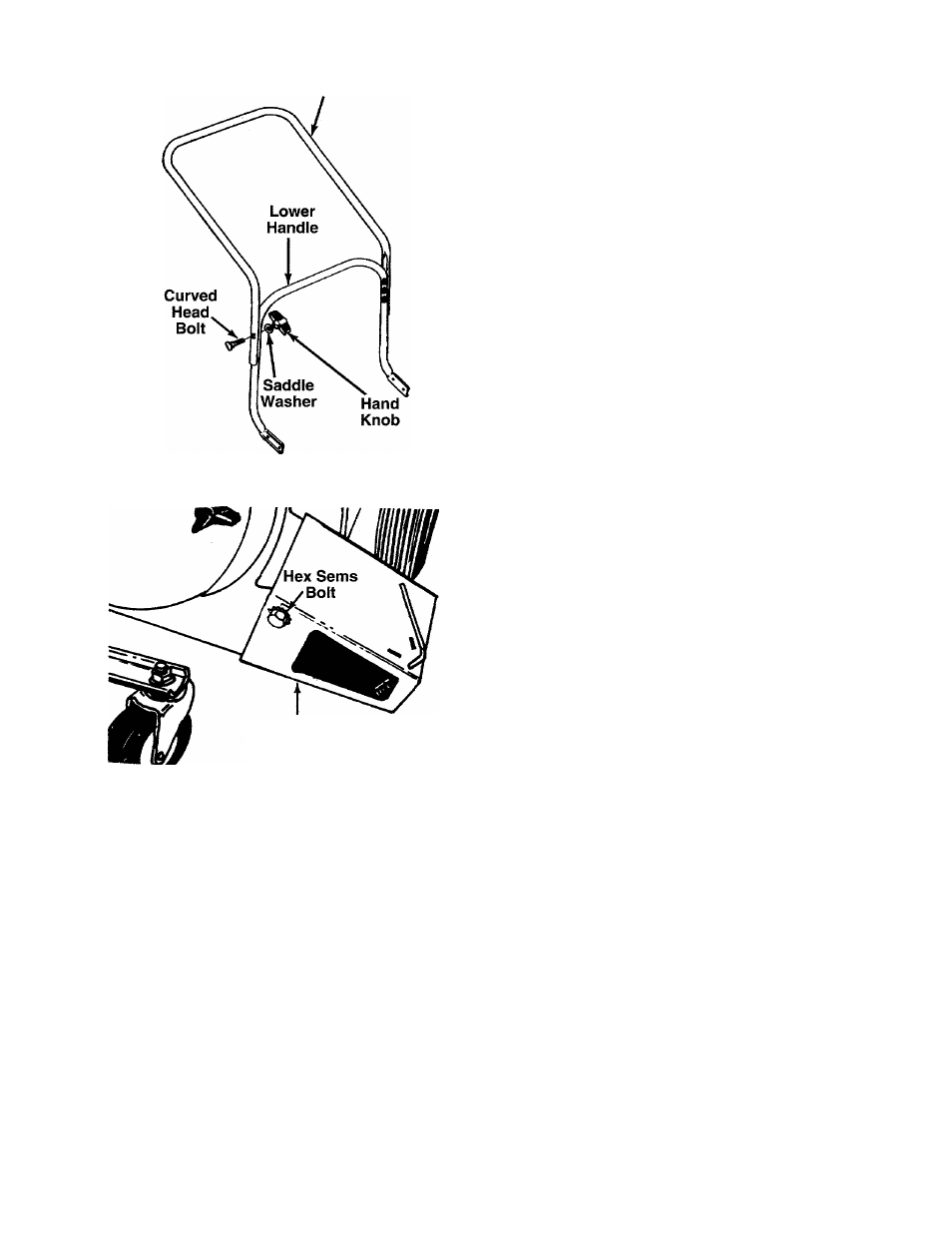

ATTACHING THE UPPER HANDLE
Place the upper handle over the lower handle, lining
up the holes in the upper handle with the middle
holes In lower handle. Secure with curved head bolts,
■saddle washers and hand knobs. See figure 3.
FIGURE 3.
ATTACHING THE DIRECTIONAL DISCHARGE
Slip end of directional discharge over chute opening.
- Secure in position with hex sems bolts. See figure 4.
Directional
Discharge
FIGURE 4.
