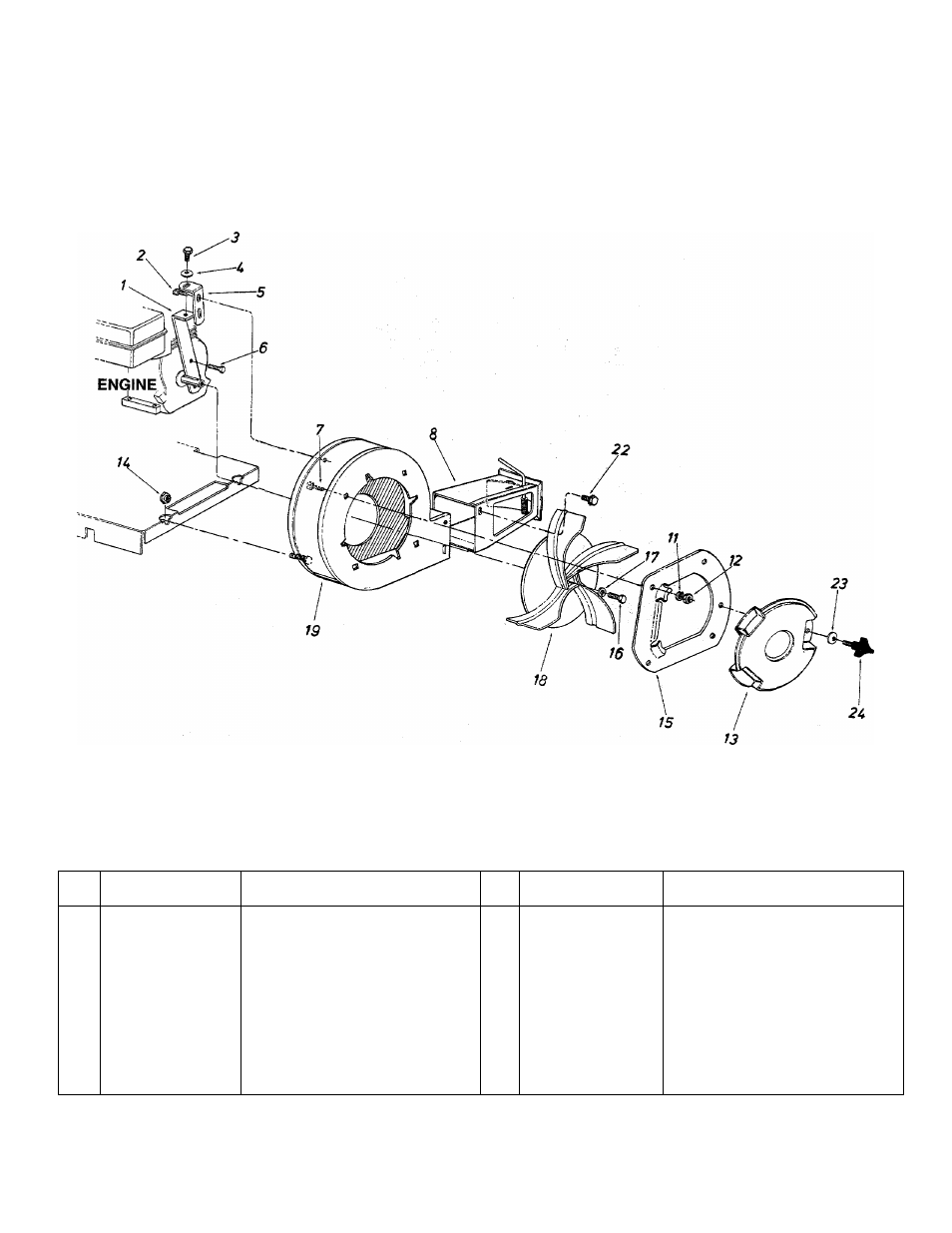

SEARS CRAFTSMAN 5 H.R AIR SWEEPER MODEL NO. 247.797900
Repair Parts
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
14539
Engine Housing Brace Ass’y.
14
711-0758
Hex Shoulder Nut .50" I.D.
2
710-0600
Hex Self-Tap Scr. 5/16" x .5"
15
14563
Nozzle Plate Ass’y.
3
710-0118
Hex Bolt 5/16-18
X.
75" Lg.*
16
710-0191
Hex Bolt 3/8-24 x 1.25"*
4
736-0119
L-Wash. 5/16" I.D.*
17
736-0217
L-Wash. 3/8" I.D.-H.D.
5
14541
Right Angle Bracket
18
681-0075
Air Vane Plate Ass’y.
6
710-0627
Hex Locking Bolt 5/16-24 x .75"
19
14496A
Blower Housing Ass’y.-Comp.
7
710-0260
Carriage Bolt 5/16-18 x .62"
22
710-0259
Hex Sems Bolt 5/16-18 x .62"
8
14479
Directional Discharge Ass’y.
Lg*
11
736-0119
L-Wash. 5/16" I.D.*
23
736-0242
Bell-Wash. .34" I.D. x .87" O.D.
12
712-0267
Hex Nut 5/16-18 Thd.*
24
720-0170
3-Arm Thumb Scr. 5/16-18 x .75“
13
731-0608
Blower Guard
Lg.
*Common Hardware—May Be Purchased Locally.
