ASSEMBLY INSTRUCTIONS
IMPORTANT: This unit is shipped WITHOUT GASO
LINE or OIL. After assembly, see operation section of
this manual for proper fuel and engine oil recommen
dations.
NOTE: To determine right and left hand side of your
air sweeper, stand behind the handle in the operating
position.
UNPACKING
Your air sweeper, has been completely assembled at
the factory except for the upper handle and directional

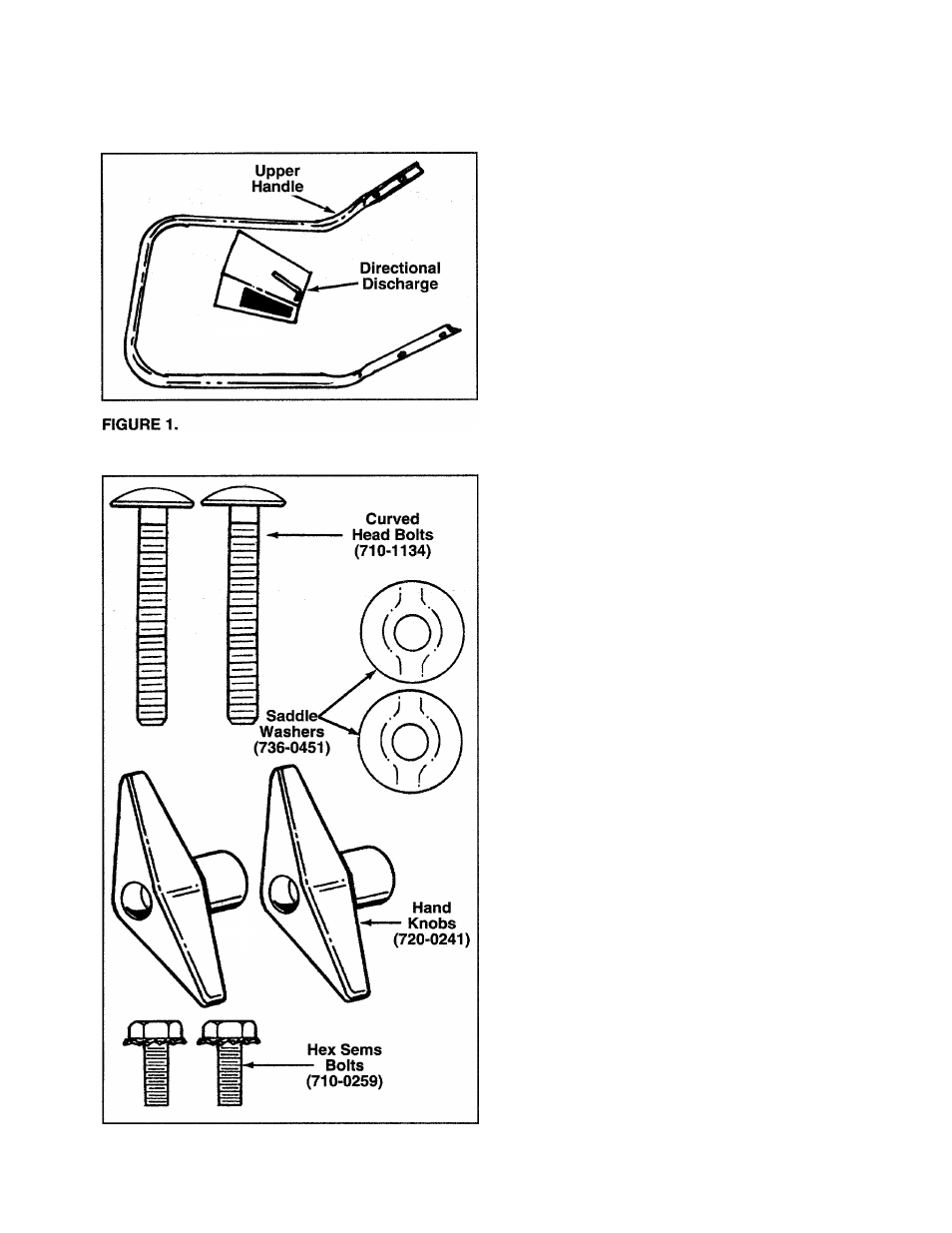

discharge. See figure 1. The hardware pack is also
-included in the carton. The hardware pack contains
parts shown in figure 2.
• Remove staples or break glue on the top flaps of
the carton.
• Cut carton down along each corner and lay carton
down flat. Roll air sweeper out of the carton.
• Make certain all parts and literature have been
removed before the carton is discarded.
TOOLS REQUIRED FOR ASSEMBLY
(1 ) 1/2" or Adjustable Wrench
FIGURE 2.
