OPERATION
Using the Tractor Lift

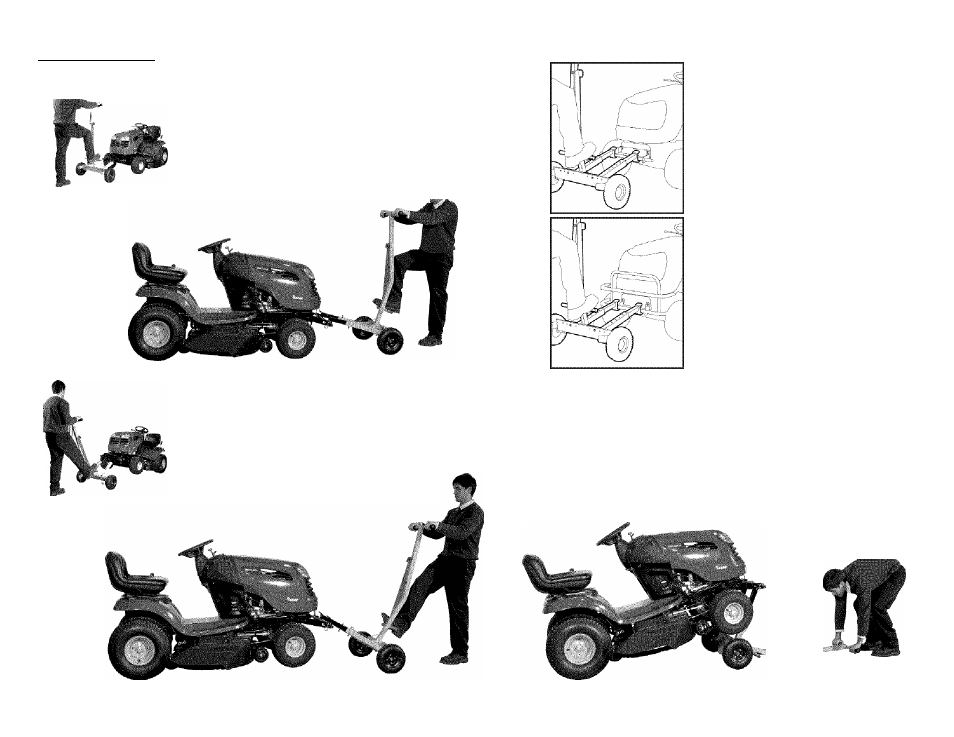

Step 1. Engage Tractor Lift
• Center Tractor Lift in front of tractor.
• Ensure that claws at ends of lift
tubes are securely hooked under
the lift cross tube attached to tractor
(Figure 1) or to the tractor
bumper/brush guard (Figure 2.)
Figure 1.
Properly engaging tractor
with mounted lift cross tube.
Figure 2.
Properly engaging tractor
with tractor bumper/brush guard.
Step 2. Lift Tractor
•
Place foot onto foot bar tube and apply
continuous forward pressure with foot
while pulling down on tractor
lift handle.
• Once lifted, the weight of tractor will
automatically force handle down
into correct position.
IMPORTANT: Stabilizer bar MUST be engaged
immediately after raising the tractor. See Step 3
on next page for instructions.
FOR MISSING PARTS, Call 1-800-652-2321, Monday-Friday, 8 a.m. - 5 p.m. EST.
